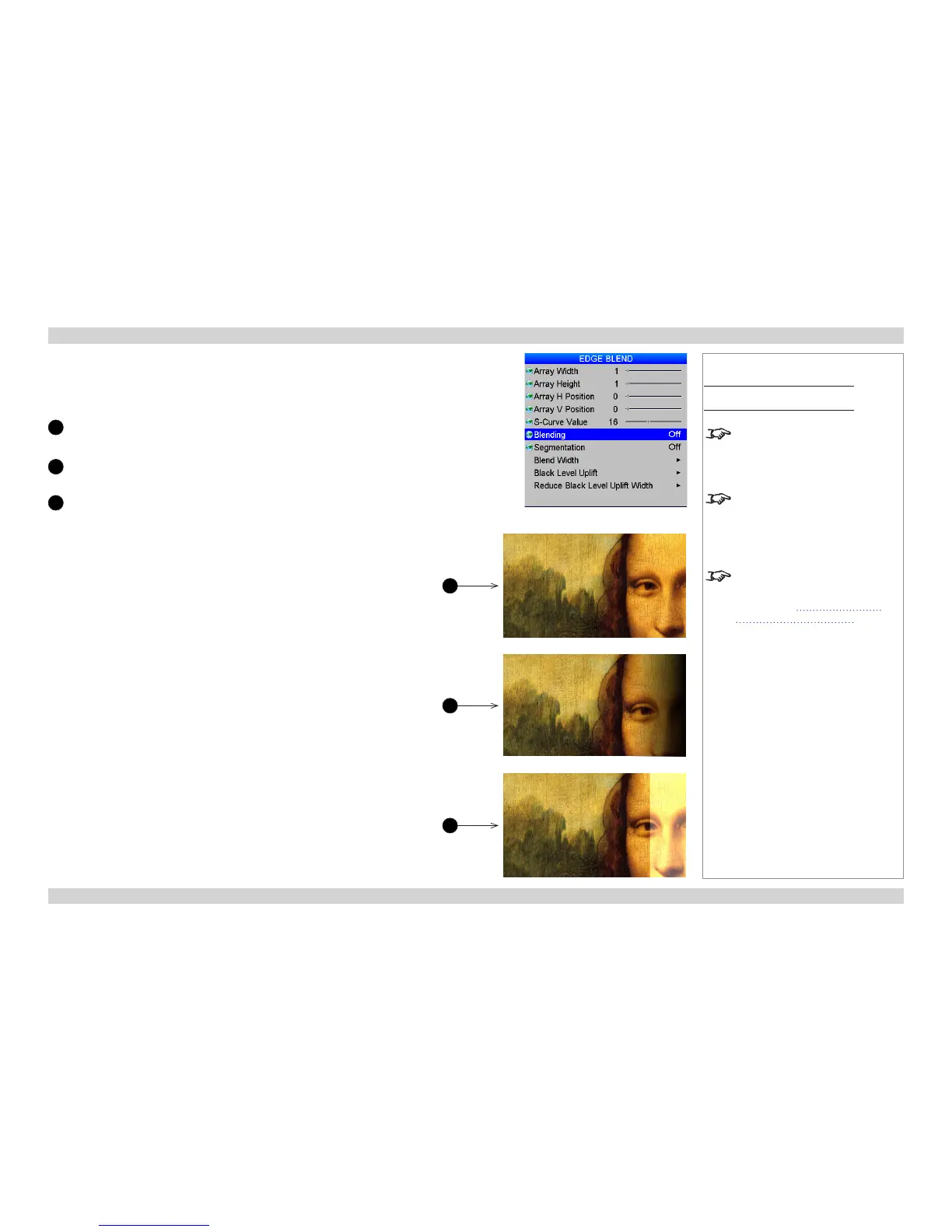

Blending
This setting enables s-curve blending, or displays an align pattern to help dene
overlaps between segments.
Set Blending to:
1
Off
Edge Blend is not used.
2
On
S-curves are enabled in the overlapping regions.
3
Align Pattern
The align pattern makes the overlaps more visible and helps adjust the
physical position of the projectors in the array.
The size of the align pattern is controlled by the Blend Width group of
settings.
Notes
Main Menu
Edge Blend
This menu is available only when
Setup > System > Conguration is
set to Edge Blend.
None of the other items in this menu
are available until either the Array
Width or the Array Height setting
is greater than 1.
For a detailed step-by-step
description of the edge blend
process, see Blending images
from multiple projectors further in
this section.
1
2
3
