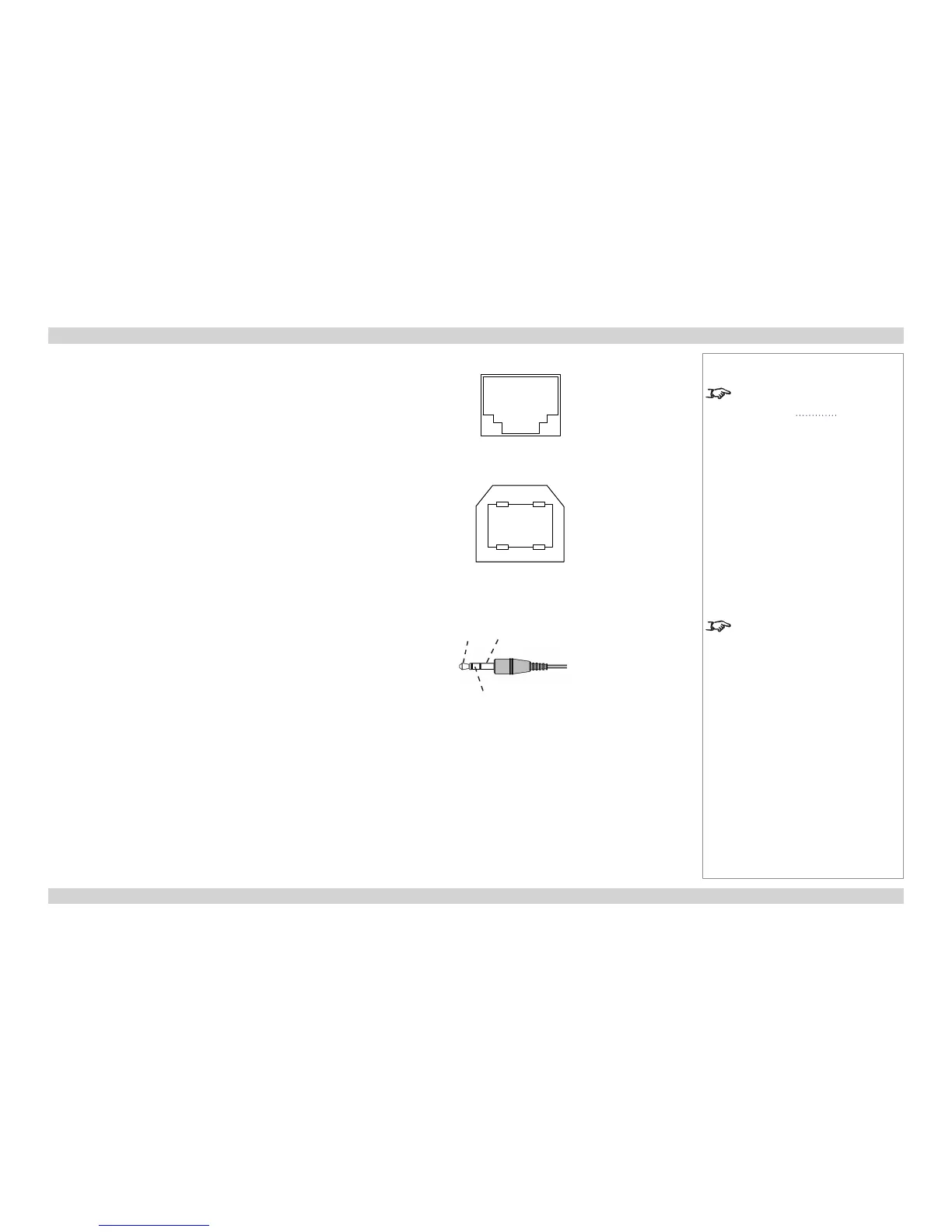

Digital Projection Titan Quad / 800 / 930 Series APPENDIX E: WIRING DETAILS Reference Guide
188
Rev H October 2013
Control connections
Update port
RJ45 socket
Service port
USB type B socket
Pin 1 VCC (+5 V)
Pin 2 Data−
Pin 3 Data+
Pin 4 Ground
Wired remote control
3.5mm mini jack
Tip Power
Ring Signal
Sleeve Ground
Update port
1 2
4 3
Service port:
pin view of female connector
Sleeve
Ring
Tip
pin view of female connector
Notes
For full details of all network
settings, see Network in the
Operating Guide.
Plugging in the remote control cable
will disable the infra-red.
