Dino 210XT - Platform Position Adjustment; Chassis Control Adjustment

DINO 210XT
32
21. Adjustment of the platform position
From the chassis control centre (LCB)

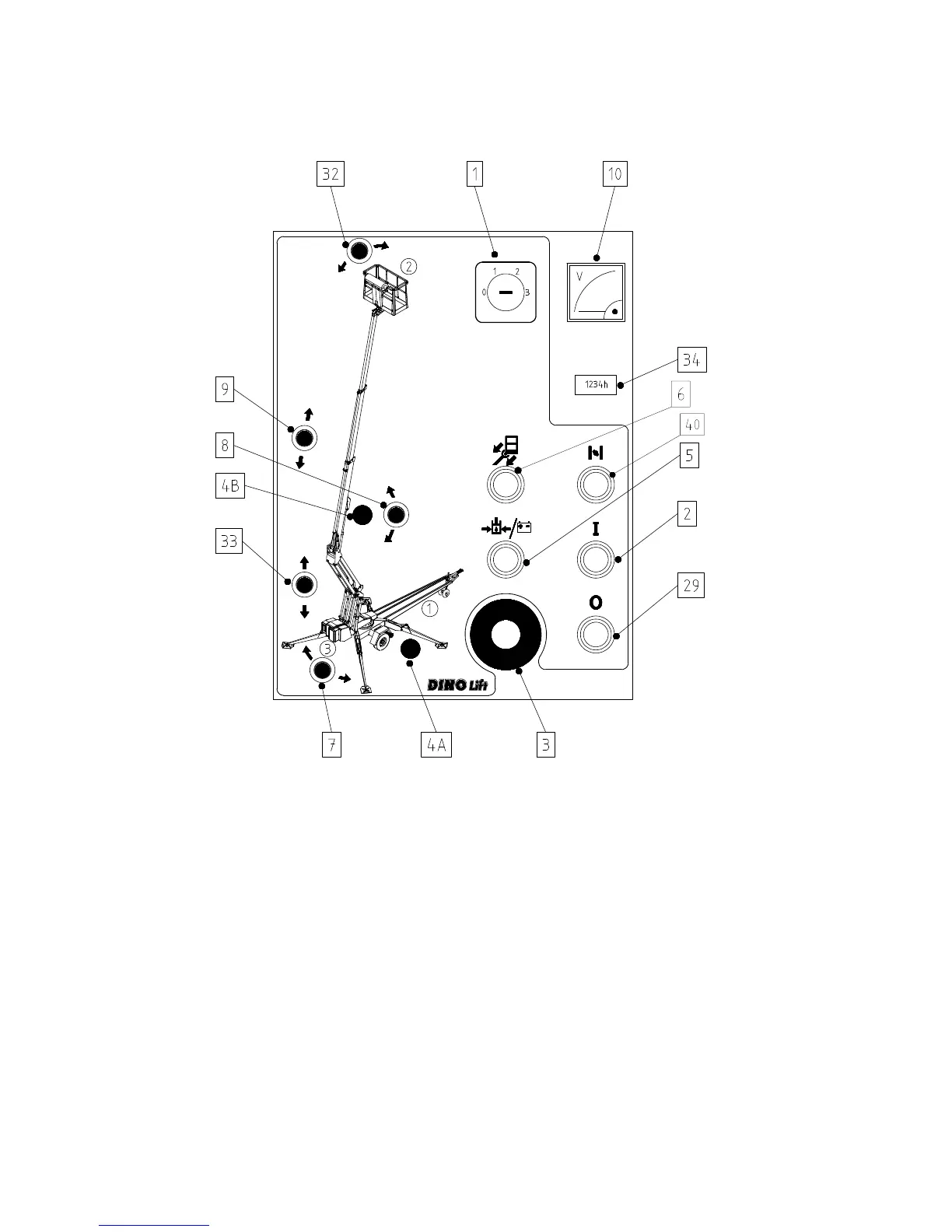

The position of the platform may be adjusted from the chassis control panel in the following way:
- turn the selector switch (1) to position 3
- select the correction movement direction with the control lever (32)
Carry out the adjustment while the boom is in the horizontal position.
Carry out the levelling of the platform while the lift is in the support position (the outriggers down).
