DINO 210XT
53
2. Change the hydraulic oil and replace the filter
(protect your skin against the hydraulic oil)
- remove the plug and drain the oil tank with the cylinders of the lift completely retracted
- clean and rinse the oil tank with suitable agent

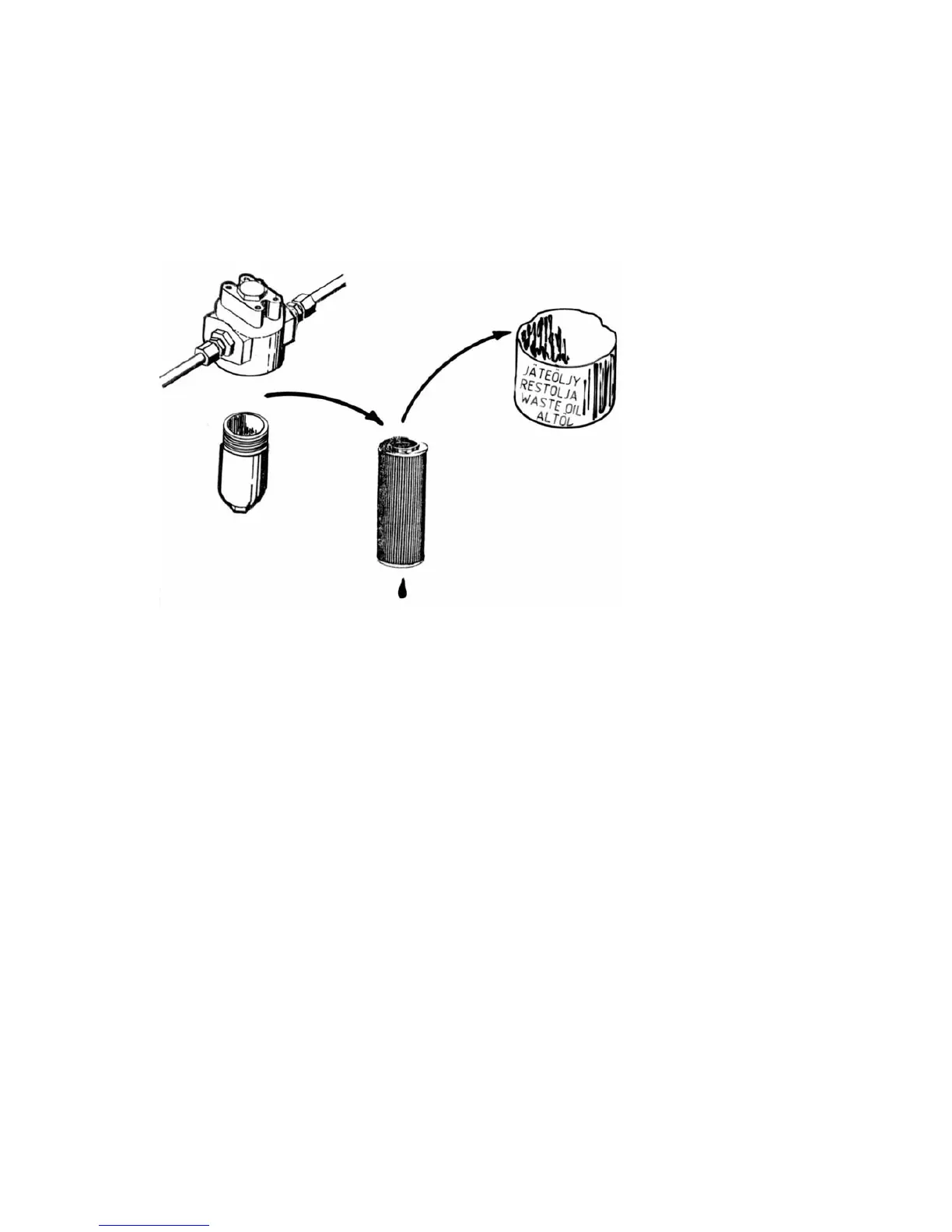

- replace the pressure filter
- install the drain plug
- refill the tank with fresh oil, the oil volume required for change is about 20 l
Factory filling Neste Hydrauli 28 Super or Esso Univis J26 or environmentally friendly Raisio
Biosafe Hydraulic oil 32 NE.
- never mix different oil sorts
- if required, top up hydraulic oil to the level with the upper edge of the level eye while the lift is
in the transport position.
3. Check the hydraulic hoses and pipes
Replace any externally damaged hoses or clashed pipes. Check the connections.
