Dino 210XT - Cylinder and Joint Inspection; Outrigger Joint Inspection; Cylinder Inspection and Lubrication

DINO 210XT
54

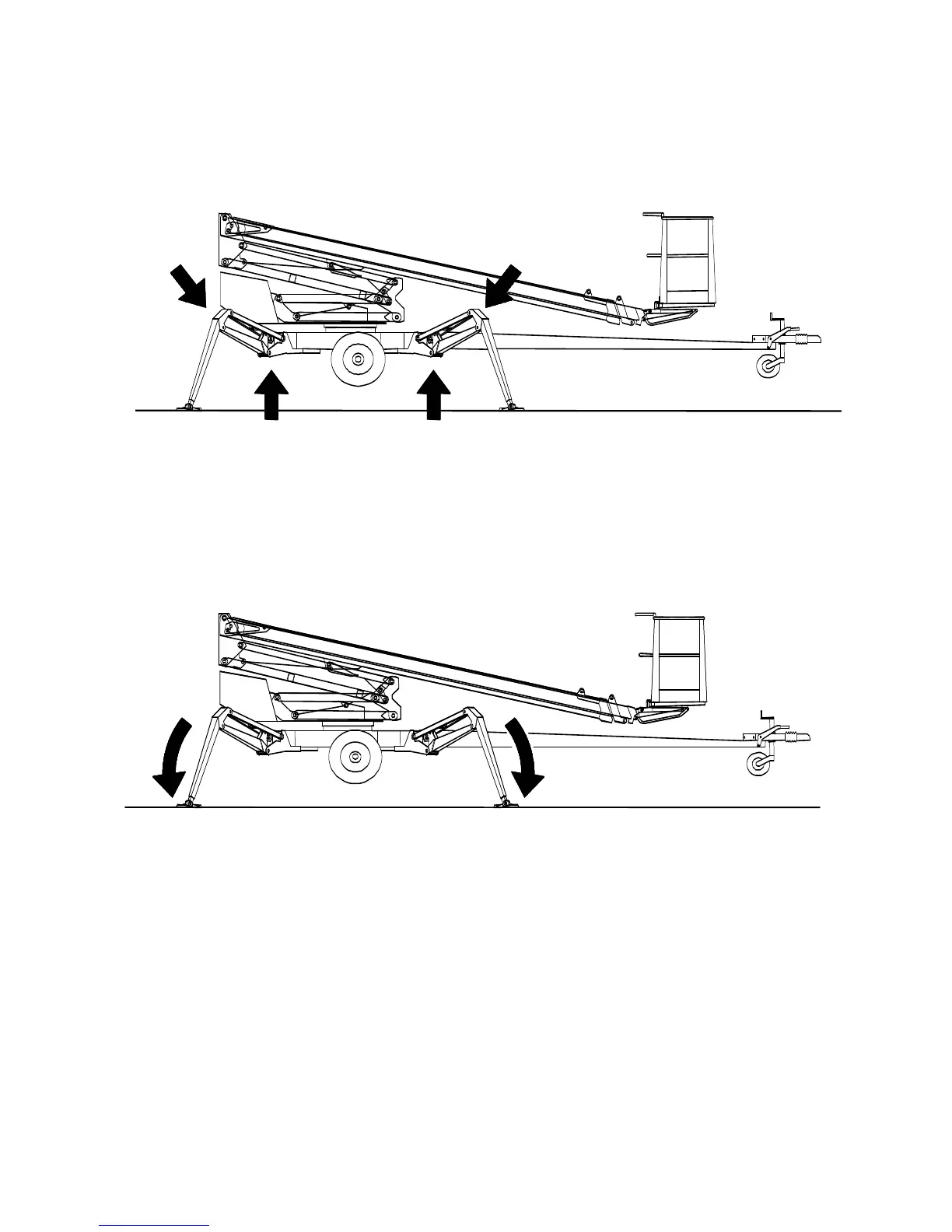

4. Inspect joints of the support outrigger
- lower the outriggers slightly
- swing the outriggers back and forth in the horisontal plane and check the joints for play
- check the operation and condition of the limit switch mechanisms on the outriggers
- replace any worn out parts
- lubricate the joints (refer to the lubrication plan)
Lower the outriggers to support position.
5. Inspect the cylinders, and lubricate the joint bearings (refer to the lubrication plan).
- drive the lift cylinder to its upper position from the chassis control panel and inspect the
condition of the piston rod and tightness of the connections
- drive the lift cylinder to its lower position from the chassis control panel and inspect the
connections for tightness
- retract and extend the telescope cylinder from the chassis control panel and inspect the condition
and tightness of the cylinder
- lubricate the joints of the lifting, telescope and levelling cylinders
- extend the articulated arm cylinders from the lower control panel and inspect their condition and
tightness
- inspect the outrigger cylinders and lubricate their joints
