DINO 210XT
55
6. Inspection of the boom and the chassis
- extend the telescope and inspect the platform and its attachment and the boom
- inspect the boom joints and play of the sliding pads, readjust if necessary. Lubricate the
sliding surfaces

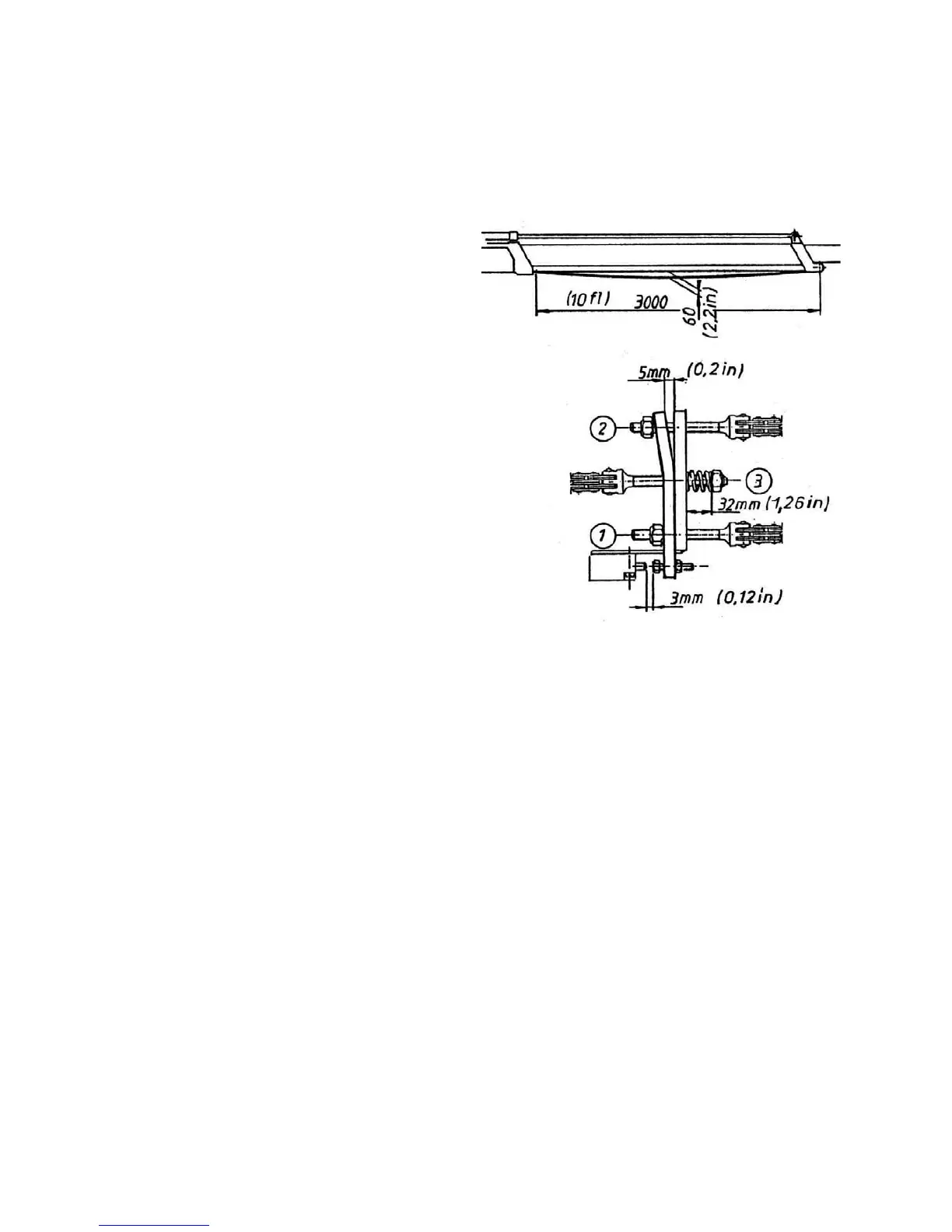

- check the condition, locking and
adjustment of the Flyer-chain
- secure the attachment to the boom of the
unloaded flyer-chain by pulling the chain
by hand with the boom fully extended
- inspect the turning device and its
attachment, lubricate the turning bearing and the gear ring
Remove the crescent-shaped covers from the underside of the lift in order to enable
lubrication of the turning bearing nipples (4 pieces).
ATTENTION! Excess grease pressure may press out the turning bearing seal.
- check the turning bearing play
Max. allowed axial play is about 1 mm.
- check the attachment bolts of the turning device for tightness: 280 Nm (M16)
150 Nm (M12)
If you have to turn open or tighten the attachment bolts, do not forget to use bonding adhesive
(tighten crosswise)
- check the chassis and the welded seams on it; especially around the turning device and
attachment points of the outriggers
- inspect the outriggers.
- check the tow-bar, in particular its attachment to the chassis
- lubricate the bearings of the boom and outrigger joints
