DINO 210XT

FAULT REMEDY

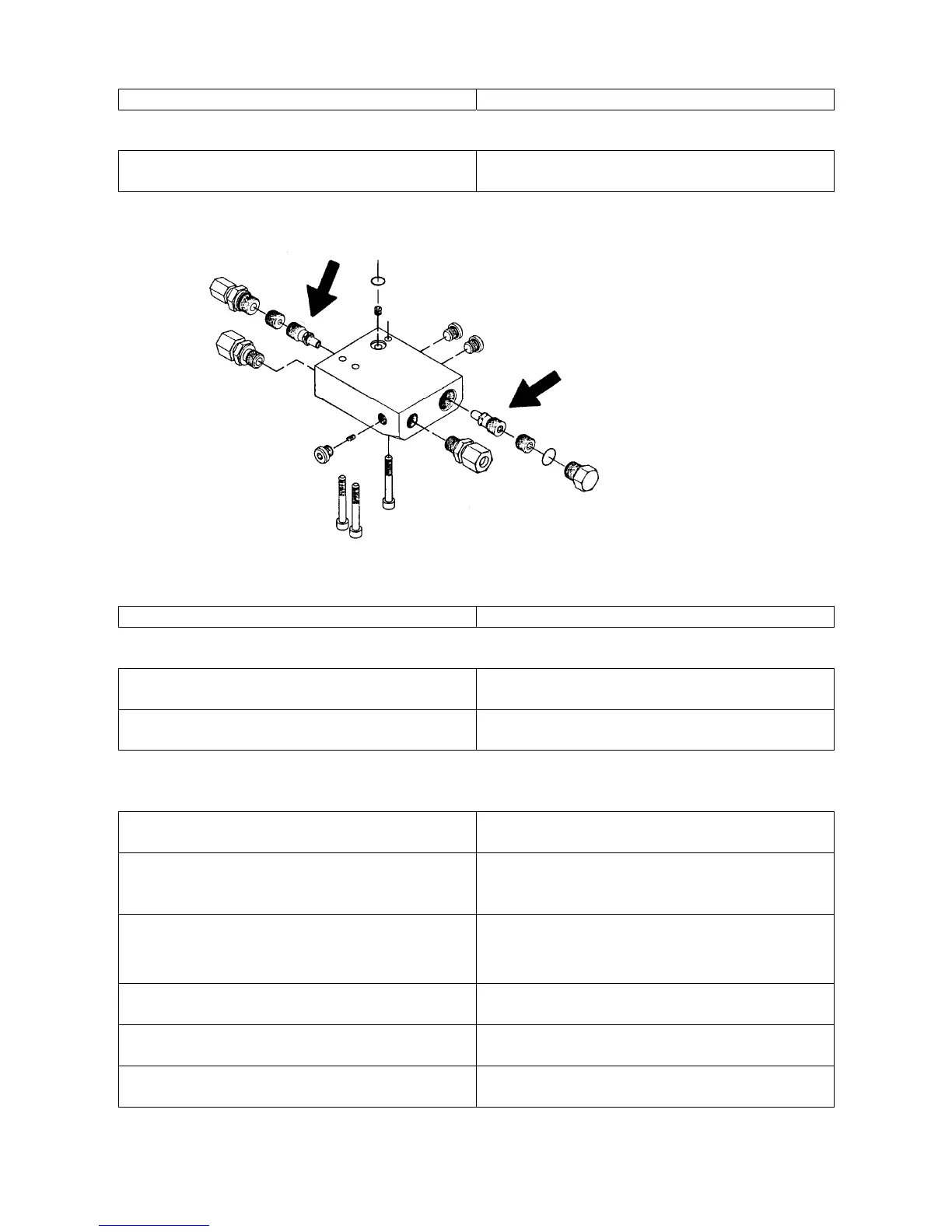

16. Outrigger does not stay in the support position (see illustration)

The load regulation valve on the bottom side is

leaking.

For remedy, refer to item 5 (lock valve).

Tightening torque 55 Nm.

17. Outrigger does not stay in the transport position (see illustration)

Load regulation valve on the rod side is leaking. Measures as above.

18. Driving device does not operate though the selector switch is in position 1

Boom does not rest on the transport support. Drive the boom onto the support.

Electric valve for movement of boom/outriggers

does not operate (jams in the centre position).

For remedy, refer to item 4.

19. Too low braking force

Too much play in the brake system. Adjust the brakes (refer to page 47).

Brake linings not yet run-in. Pull the parking brake lever slightly and drive 2 -

3 kilometres.

Brake-shoes "glazed", dirty or oil on the friction

surfaces.

Replace the brake-shoe sets.

Clean the friction surfaces of the brake drum.

Overrun brake jams. Lubricate.

Brake rod jammed or bent. Repair.

Brake wires rusty or broken. Replace wires.
