4.1 Inserting plug-in card (AUX)
UP
DOWN
ENTER
ESC

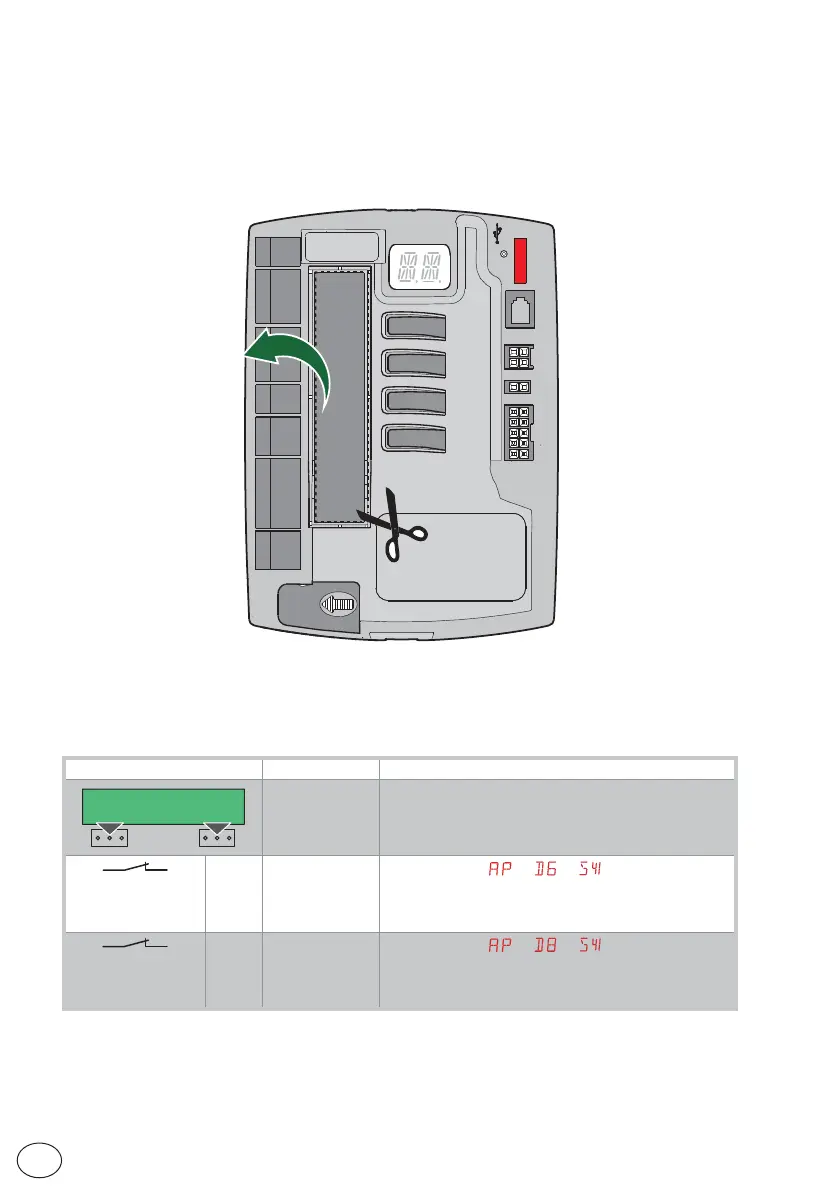

To access the plug-in card (AUX), cut the control panel cover as shown in the figure.
4.2 SOFA1-SOFA2 or GOPAVRS self-controlled safety edge
Command Function Description
GOPAV
SOFA1-SOFA2
SAFETY TEST Place the SOFA1-SOFA2 or GOPAVRS device into the
special housing for AUX plug-in cards.
If the test fails, an alarm message appears on the
display.
1
6
NC SAFETY STOP
When selecting
→ → , connect the output
contact of the safety devic
e to terminals 1-6 on the con-
trol panel (in series with the photocell output contact,
if installed).
1 8
NC CLOSING
SAFETY DEVICE
When selecting
→ → , connect the output
contact of the
safety device to terminals 1-8 on the con-
trol panel (in series with the photocell output
contact,
if installed).
