8
EN
IP2163EN

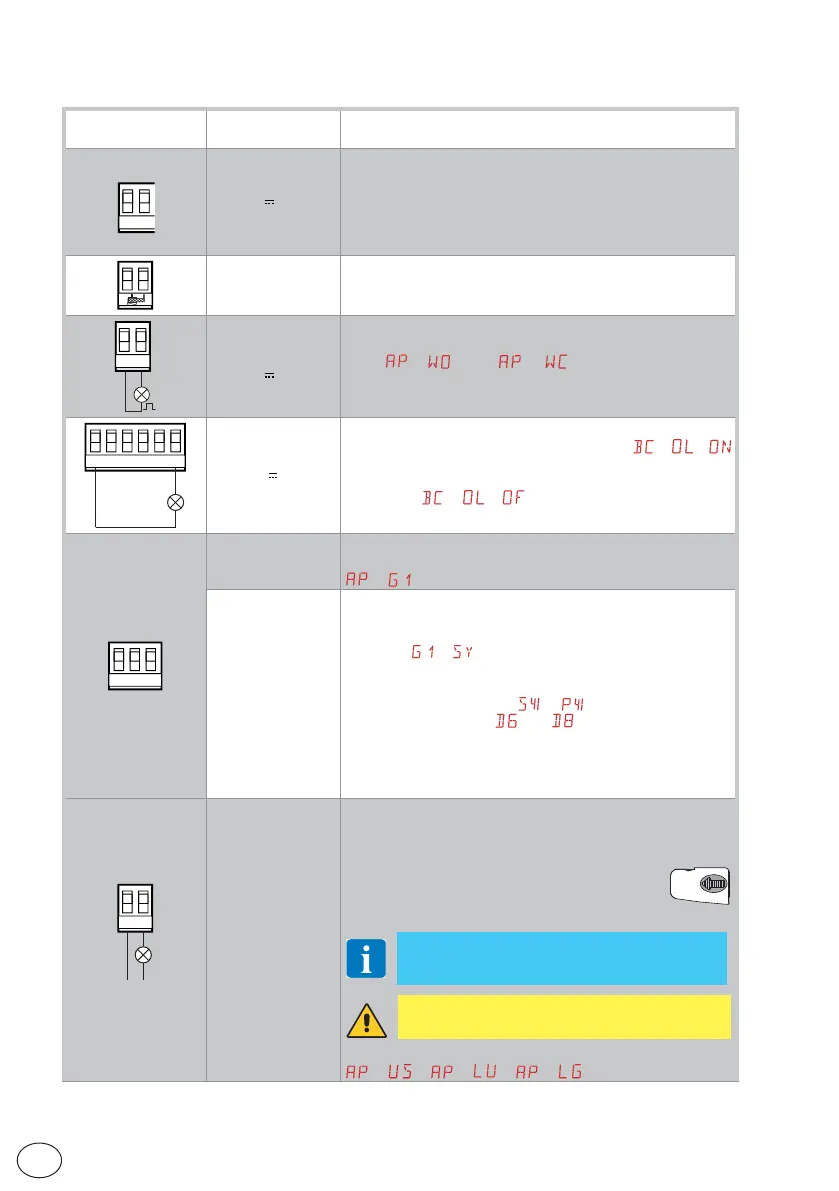

5. Outputs and accessories
Output
Value
Accessories
Description
0
-
1
+
24V 0.3A
Power supply to accessories.
External accessories power supply output.
NOTE: the maximum absorption of 0.3A corresponds to the
sum of all terminals 1.
The gate open indicator light (1-13) is not calculated in the
0.3A indicated above, the maximum value considered is 3W.
GOL148REA
If the GOL868R4 radio receiver is used (868.35 MHz), connect the
supplied antenna wire (90mm).
+LP-
LAMPH
24V
25W
Flashing light.
The pre-flashing settings can be selected from the third level
menu → and/or → .
1234913
24V 3W
Automation status lamp (proportional)
The light comes on when the automation is open
→ →
The light goes off when the automation is closed.
The light flashes with a variable frequency while the automation
is operating
→ → .
1G1G3
G1 - General Purpose Input
Operating of the G1 input can be selected from the menu
→ .
10mA max
G3 - General Purpose Output
Operating of the G3 output depends on the type of G1 input
selection.
SY - If
→ , G3 operates as a sync output for parallel
or interlocked automations. The ES - Energy Saving mode
is not available with this configuration.
41 - If the safety test (
or ) is enabled on at least
one or both inputs
and , G3 operates as a safety
test output.
30 - In applications with solar panels, G3 operates as a
permanent positive at 24V max 10mA to be connected
with the NO contact to G1 (opening and/or step-by-step).
NOC
LN
230V~ 400 W
External courtesy light.
An external courtesy light that turns on for 180 seconds with
every opening (total or partial), step-by-step and closing com-
mand can be connected.
The C-NO terminal can be accessed by removing
the cover on the left-hand side at the bottom
of the control panel.
In order to comply with essential requirements of
standards in force, reclose the cover once the wires
have been connected to the terminal.
WARNING: use a double insulated cable and secure
it using the supplied cable clamps
The courtesy light output settings can be modified by selecting
→ or → or → .
