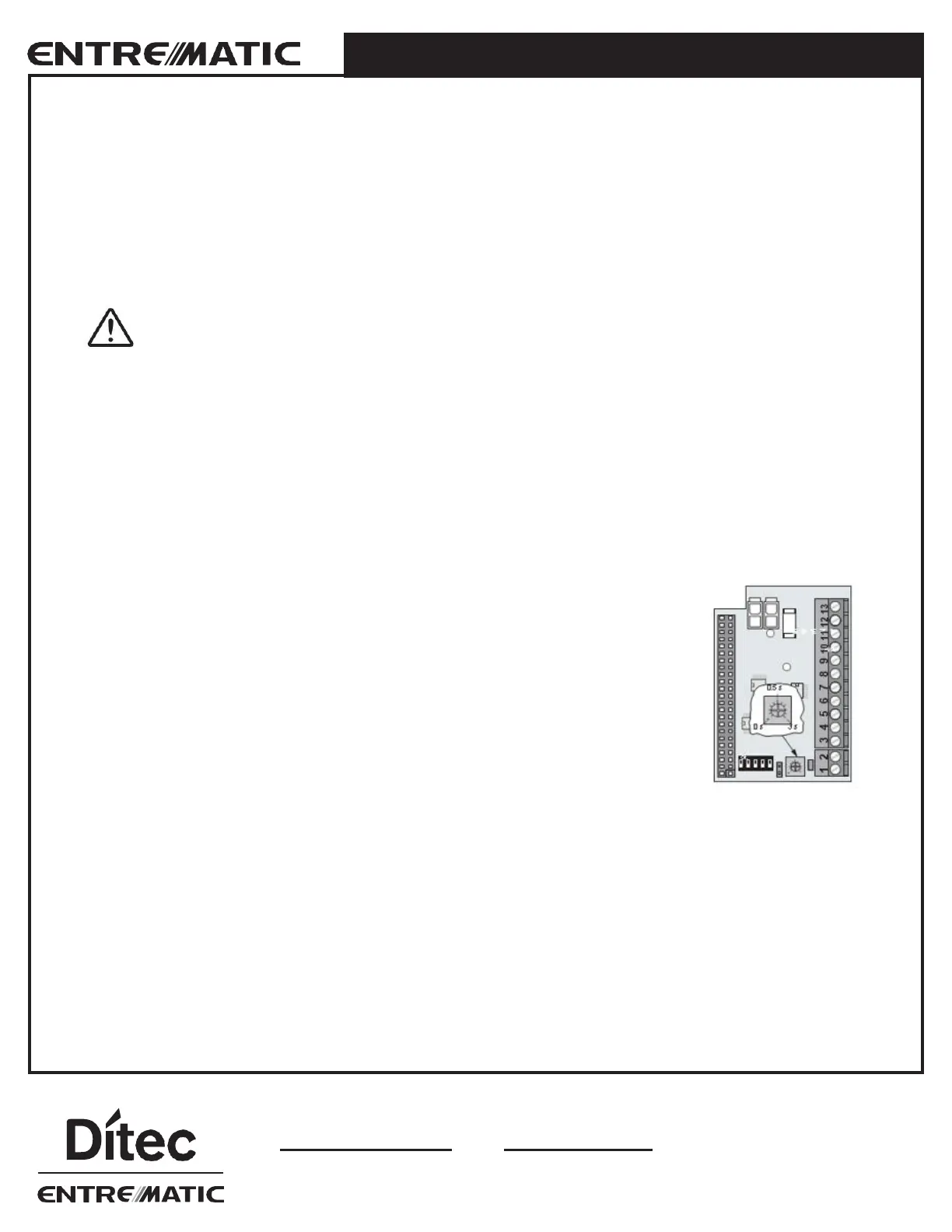

1.9 Extension Unit EXU-SI Functions (Standard)
KlLL Function
• If KILL circuit is closed, the control will ignore all signals and close door(s) at normal speed.
• When KILL is no longer active, operator will resume normal operation.
• If KILL function must have manual reset, jumper must be removed and reset button connected to terminal No. 8
and Ground.
• The lock will lock when KILL is active regardless of program selector setting.
• The function of the lock can be changed during KILL Section Changing group of parameters (Level 2)
In the event that the KILL circuit is activated, all Safety Functions of the door will be overridden
causing the door to close even though an object or person may be in the door's path of travel,
and therefore may be subject to injury. This mode of operation is most generally used to isolate
an area in the event of a fire.
Function of locks
• The lock output only works when the function switch is in OFF or EXIT. If no function switch is used OFF or EXIT must be
connected to GND (0 VDC).
• The control has an available output of DC for external locks
• DIP-switches to select 12 or 24 V DC, locked with or without power
• DIP-switch for lock release and potentiometer for opening delay
• DIP-switch for lock kick if door is not fully closed, to overcome binding in the locking device during closing
• Input to unlock signal from lock. Potentiometer for opening delay is to be set to max. As soon as unlock signal is received
the door will start to open. The output signal shall be active low.
Program selector
• Input for OPEN, EXIT and OFF (if no program selector, AUTO is default).
Activation Signal
• Input for OUTER signal, KEY and OPEN/CLOSE activation signal.
OPEN/CLOSE Activation Signal
The signal will open the door and the door will stay open until a new signal is given.
If no signal is given the door will close after 15 minutes. This can be made infinite
by changing group of parameters Section Changing group of parameters.
OPEN/CLOSE signal works only in program selection ON.
EXU-SI
(for security functions)
P/N: W8-861
