2.7 Motor/Gearbox Reinstallation

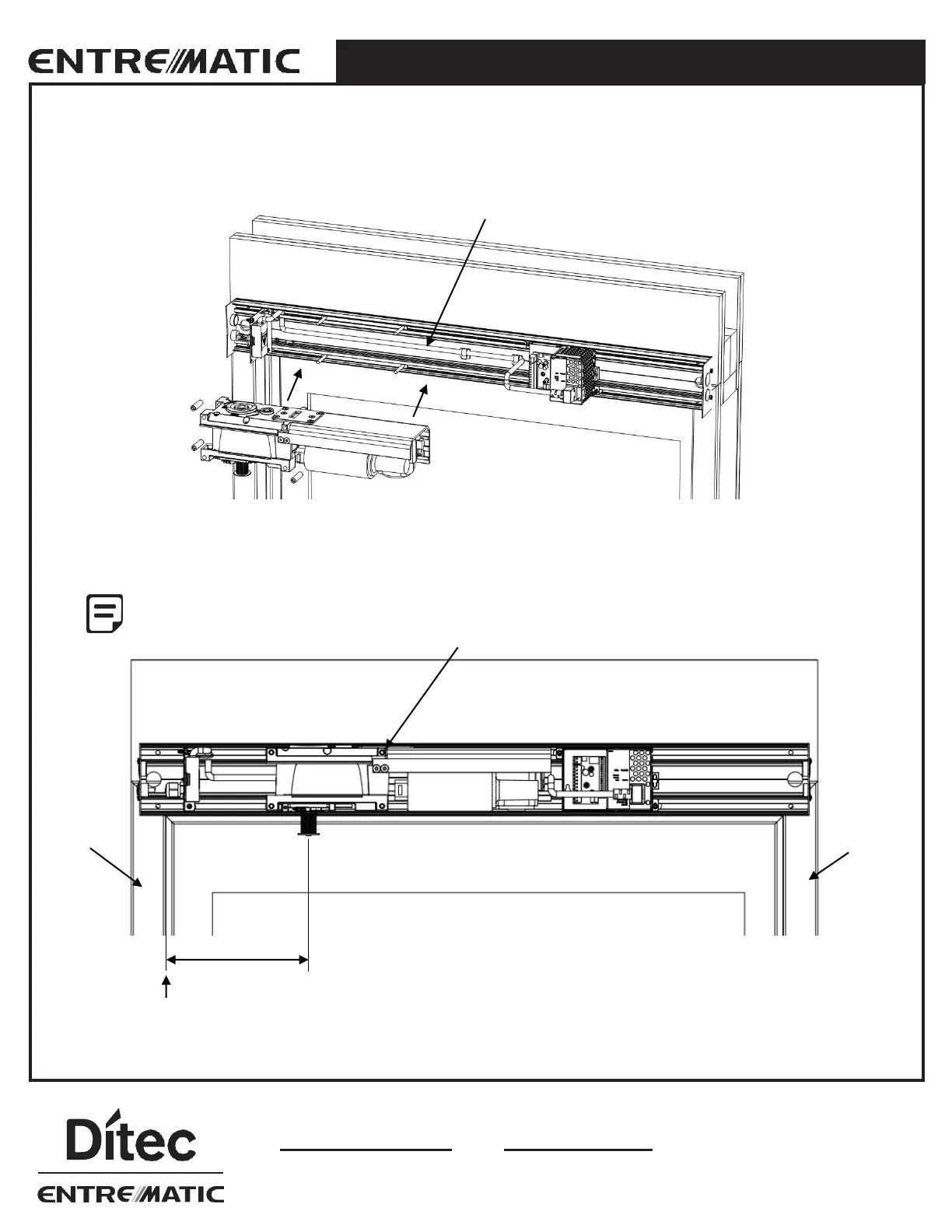

1. Place motor/gearbox back on mounting studs. Verify power wire length allows for flat, unbound and not stretched when
reinstalling motor/gearbox (as shown in diagram below).
2. Position motor/gearbox so that the spindle is in line with the previously marked spindle center location. Tighten
motor/gearbox nuts starting with the top center nut first then the rest in a clockwise pattern.
Verify that the spindle center is 8¼” (210mm) from the door hinge/pivot.
3. Reconnect motor/gearbox control wires.
2.0 OPERATOR INSTALLATION
