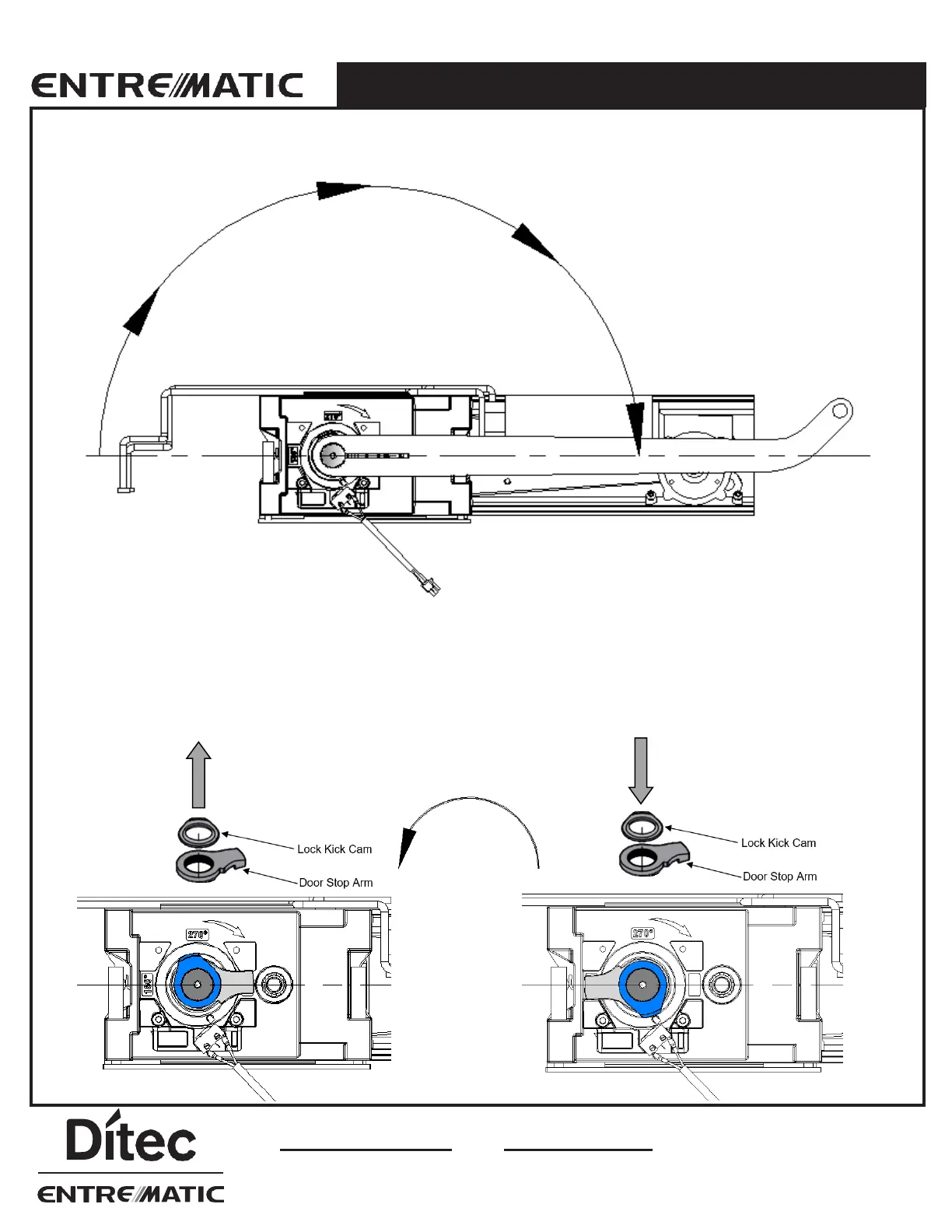

Rotate arm 180° (while holding the unit) so you can reload the spring tension and reposition stop arm.
While holding the arm in position, gently lift the lock kick cam and the door stop arm, rotate the door
stop arm so it is against the stop block and press it down so it locks into the splines. When you
release your grip on the arm the stop block should keep it from rotating. Now rotate the lock kick cam
so that it is positioned under the lock kick micro switch and press it down so it locks into the splines.
2.0 OPERATOR INSTALLATION
Arm not
shown for
clarity.
