5.2 Micro Switch

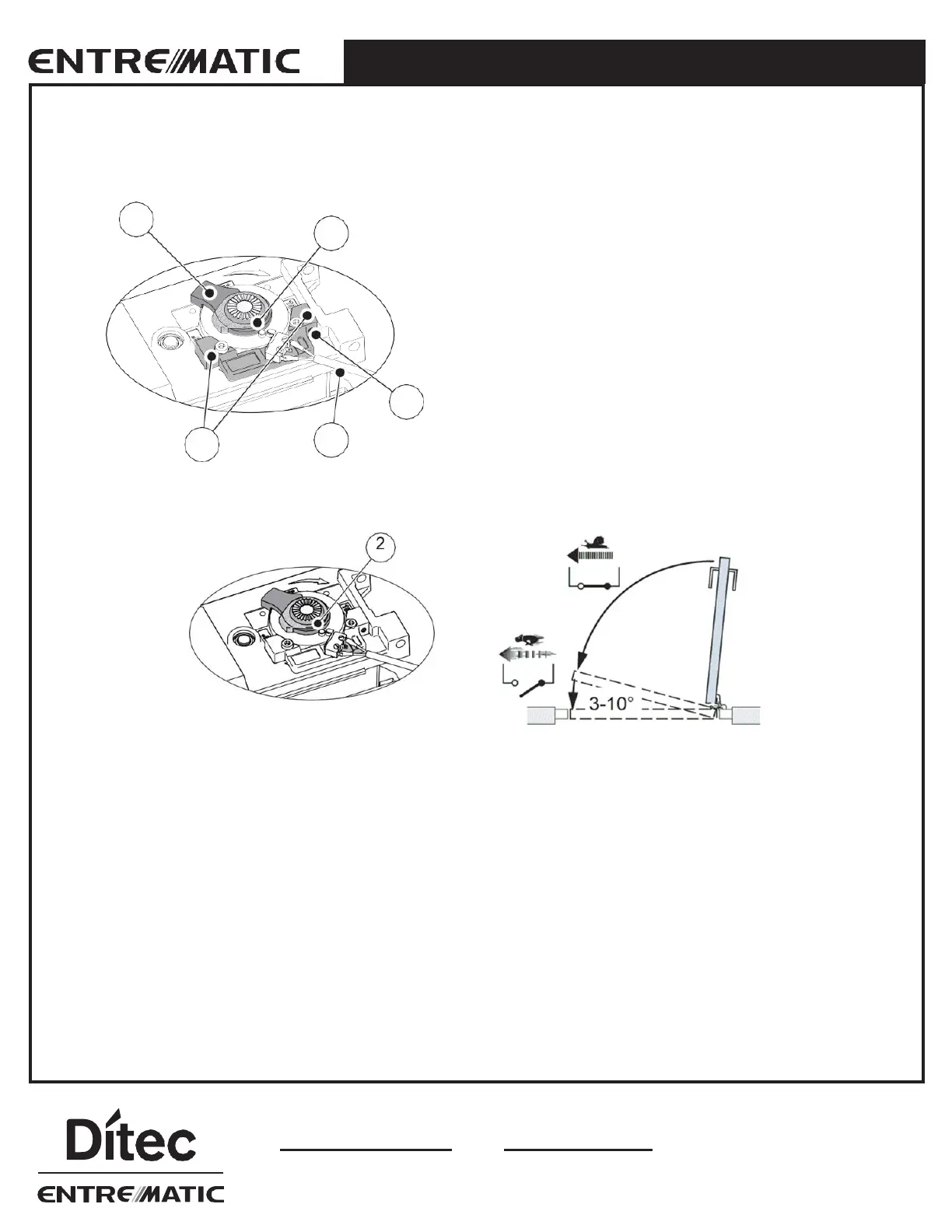

Control the lock kick by turning the lock kick cam (2) when power is off. This lock kick gives a lock kick at power
failure for the last 3-10 degrees of closing to make sure that the door will fully close and latch.
1 Micro switch
2 Lock kick cam
3 Stop block
4 Fine-adjustment screw
5 Door stop arm
5.0 OPERATOR TUNING
5
2
4
3
1
