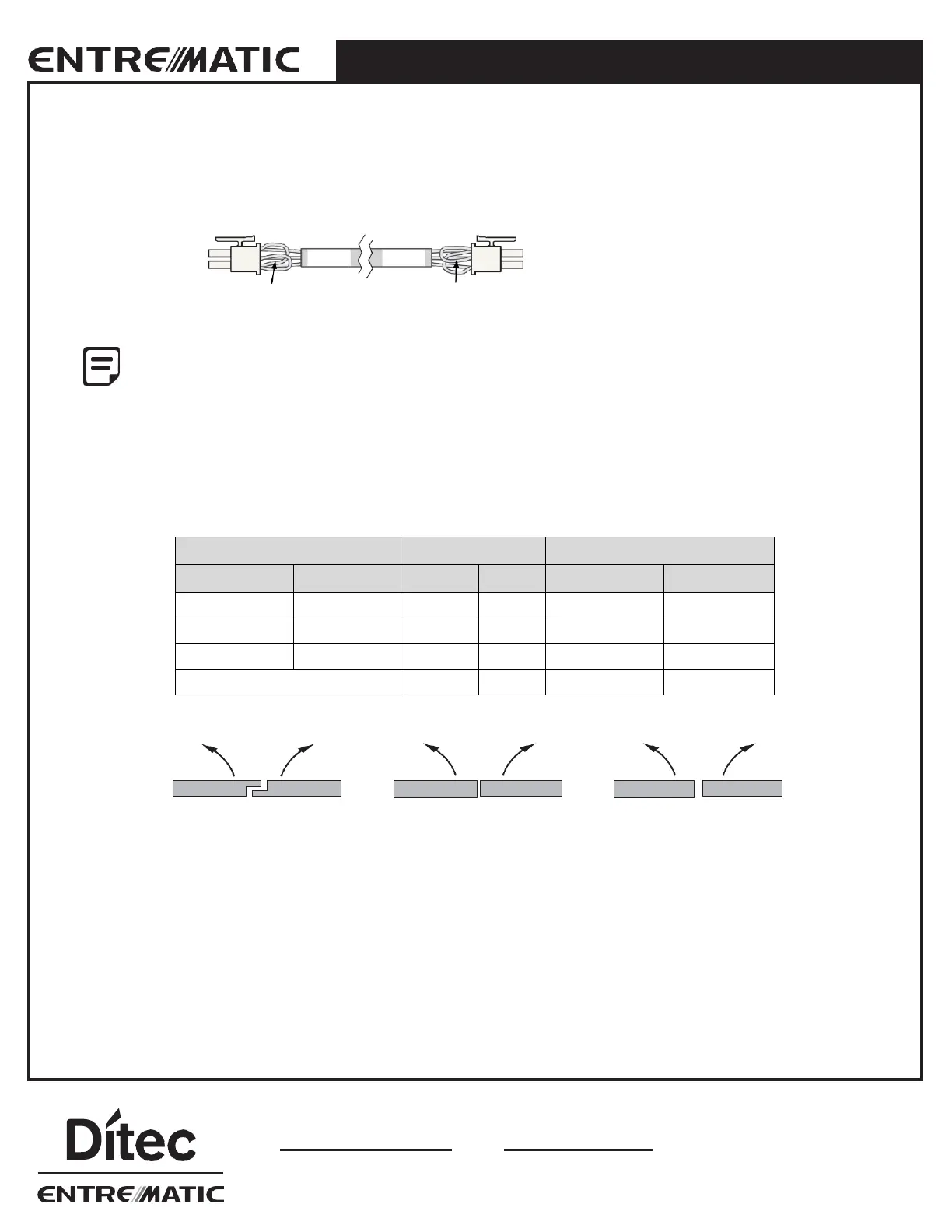

5.3 Sync cable for double doors (synchronizing of 2 operators)
1. Connect a cable between Master HA9 and Slave HA9.
MASTER
SLAVE
Black
Red
The connection/marking of the sync cable determines which of the operators is the
MASTER and SLAVE.
For a Rebated door the Master door must open before the Slave door and the Slave door must
close before the Master door
2. Cut the jumper for double doors per the following table
Function
Door design
Cut the jumper with color
Opening
Closing
Rebated
Jamming
MASTER side
SLAVE side
Synchronous
Synchronous
No
No
No cutting
No cutting
Synchronous
Asynchronous
Yes
No
Cut black
No cutting
Asynchronous
Asynchronous
Yes
Yes
No cutting
Cut red
Double egress
—
—
Cut black
Cut red
Rebated Jamming
No jamming
