Pg. 35
HA9 Manual V. 1.3
1019956

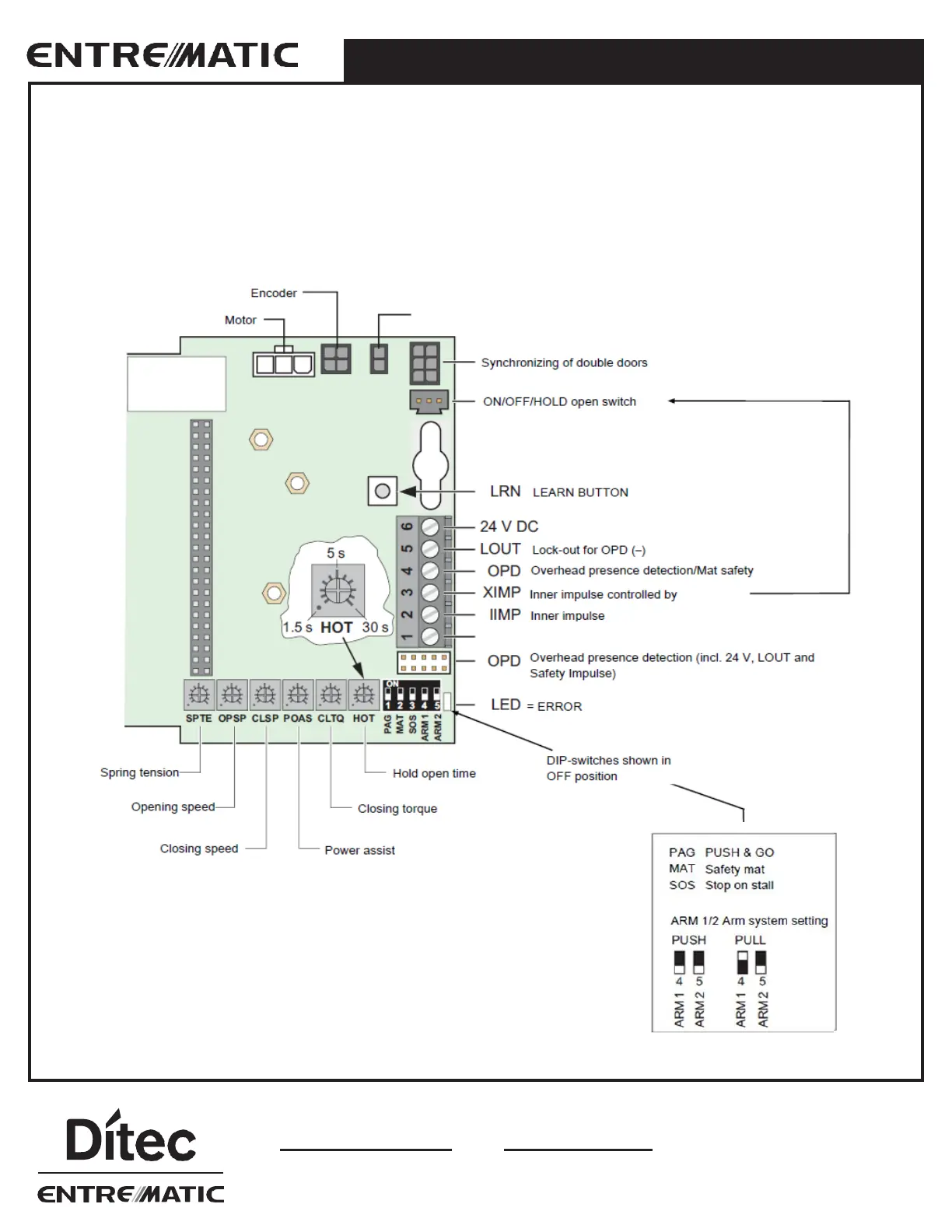

4.1 HA9 Control
1 The HA9 can be equipped with the standard extension unit EXU-SI and/or the optional EXU-SA, depending on the
functions required. See page 11 or 12
2 Arm system selection.
3 Factory set arm configuration is PUSH, if PULL is required:
• Switch power OFF
• Select arm configuration
• Switch power ON
4.0 CONTROL UNITS
Lock Kick
GND (-) 0 VDC Ground
