7.1 Overhead Presence Detection (OPD) Monitoring
1 Disconnect the mains.
2 Press the LEARN BUTTON (LRN) and keep it depressed.
3 Connect the mains.
4 Watch the ERROR LED, flash 4 times for 3 seconds each.
5 Release the LEARN BUTTON after 4 flashes (LED is out).
6 Identify the current monitoring
The ERROR LED flashes an amount of short flashes that correspond to the status number after a short pause the
LED will repeat the status number and so on.
7 Changing the status
8 If you push the LEARN BUTTON once, the status number will increase. When you have reached the highest status
number it will start at number one again.
• Push the button until you get the requested monitoring status, 1 = OFF (default), 2 = ON
• Disconnect the mains
Next time you connect the mains the operator will use the new status setting.

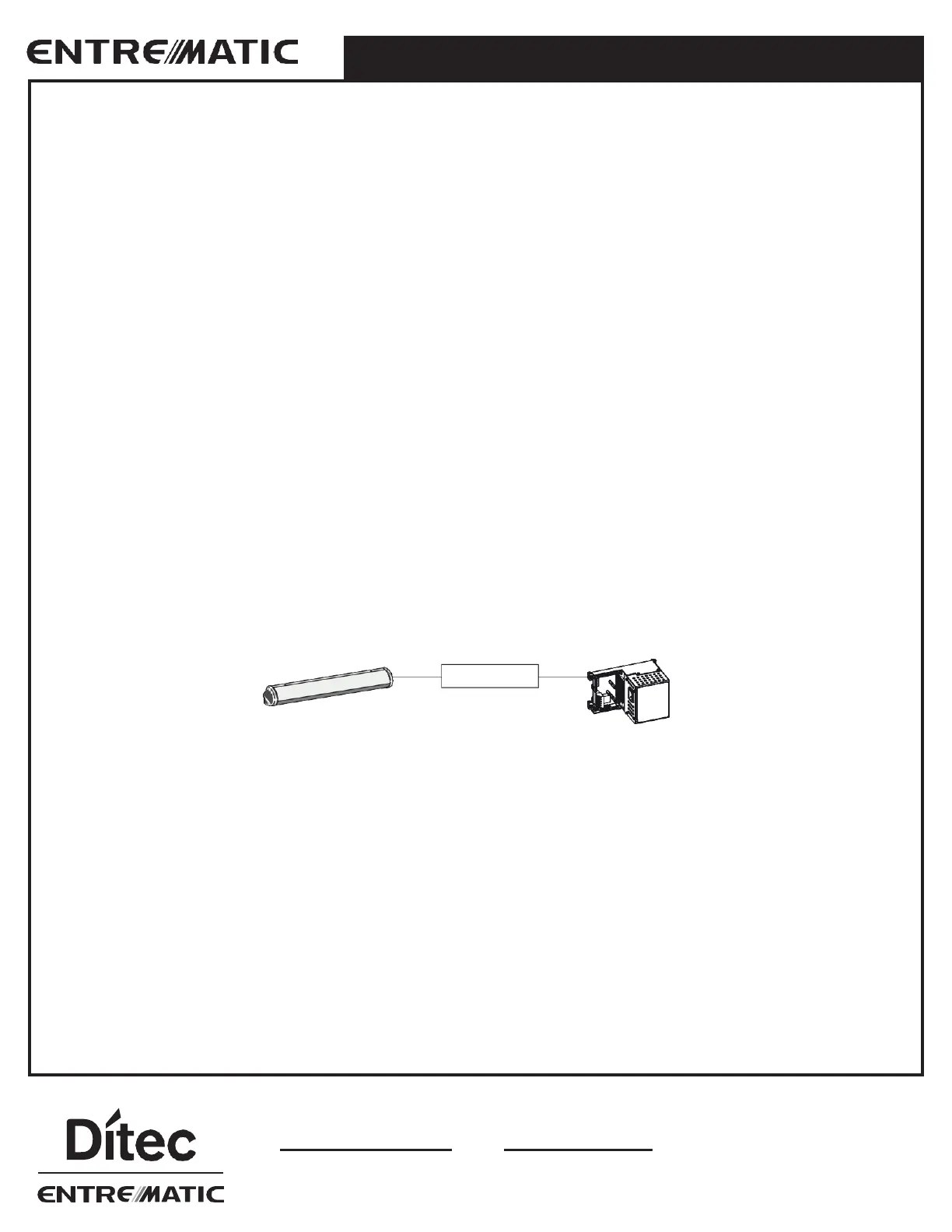

9 Recommended settings for sensor SP34-M
Sensor dip switch settings Dip 1 = ON
Dip 2-8 = OFF
Interface dip switch settings Dip 1, 4 and 7 = OFF
Dip 2, 3, 5, 6 and 8 = ON
