DITEC ENTREMATIC HA9 - Pull Arm for Pull Application Setup

Entrematic Canada Inc.
Toll Free: 1-877-348-6837
info.ditec.ca@entrematic.com
www.ditecentrematic.ca
Entrematic USA Inc.
Toll Free: 1-866-901-4284
info.ditec.us@entrematic.com
www.ditecentrematic.us
Pg. 31
HA9 Manual V. 1.3
1019956

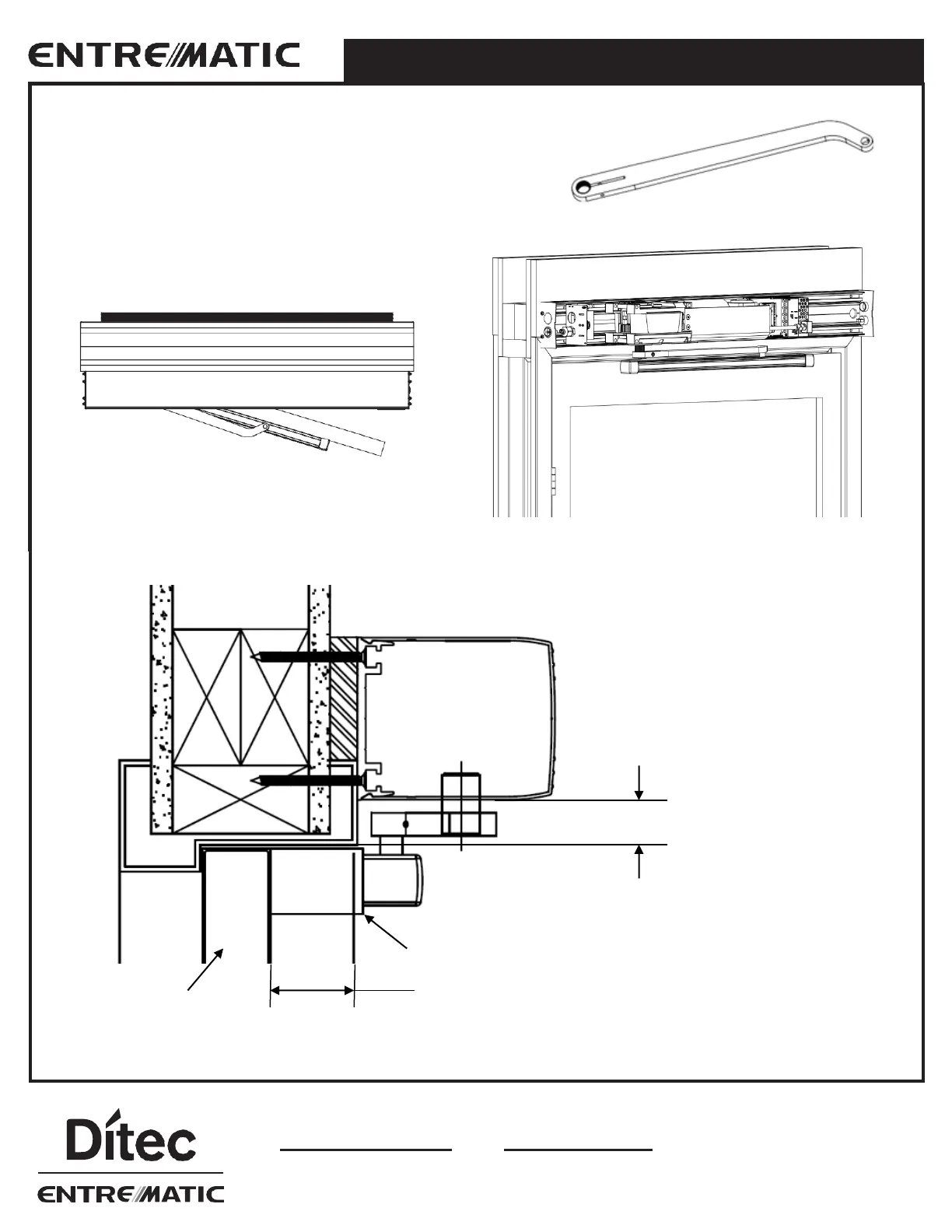

3.3 Pull Arm for Pull Application
Pull Arm is used as Pull arm, allowing flexibility
to mount the HA9 in either handing configuration.
HEADER ON PULL SIDE
3.0 ARM INSTALLATION
1 ⅜” (35mm)
Reveal 0 - 2 ⅜” (60mm)
Reveal Spacer used for reveals greater than 0
Door
