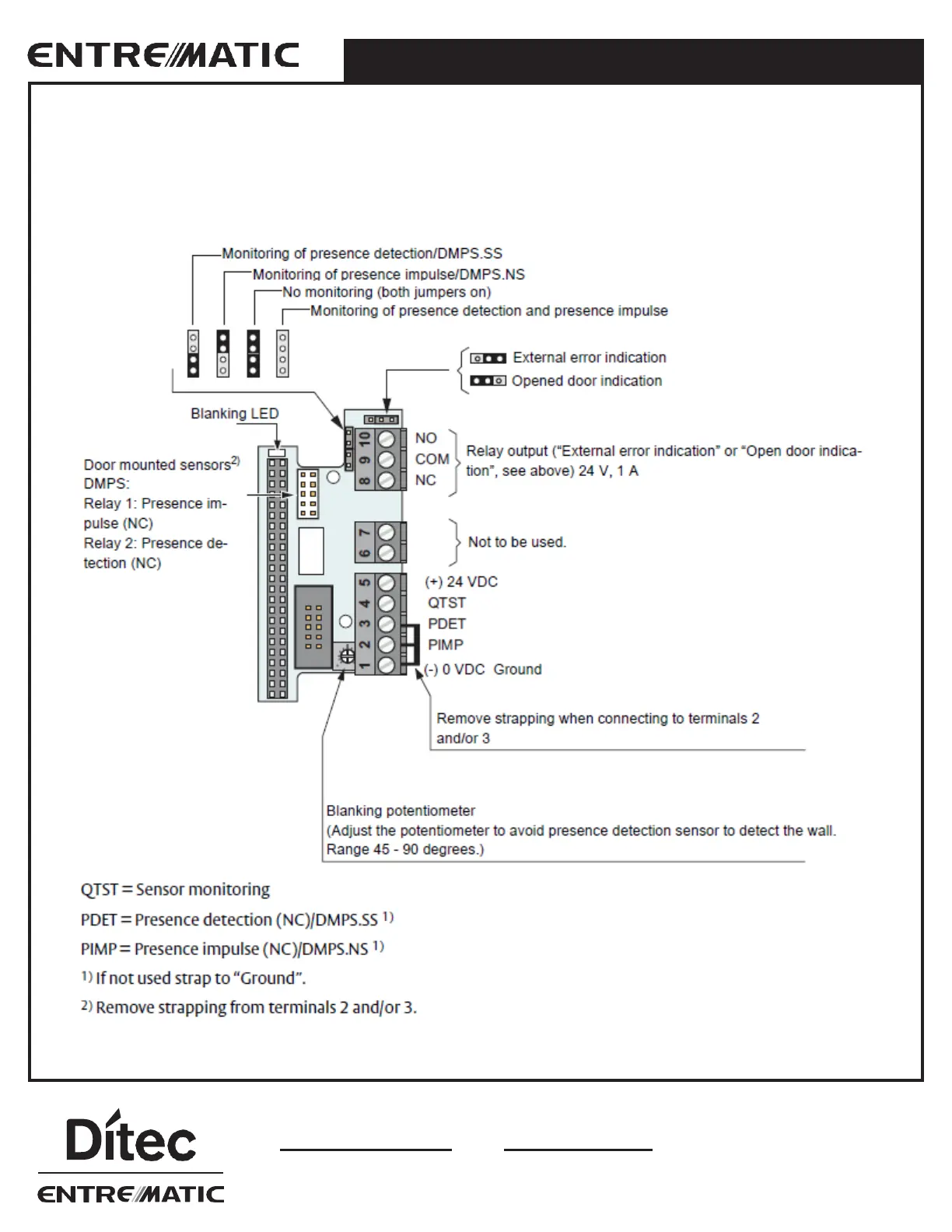

4.4 Extension unit EXU-SA (Optional)
Functions
This extension unit has inputs for door mounted sensors, which can give presence impulse on approach side and/or
presence detection on swing path side. Relay output for error indication, KILL output, Lock output or door indication is
also integrated. When the jumper for the relay is set to ‘Open door indication’, its activation will follow the Blanking LED.
QTST = Sensor monitoring
PDET = Presence detection (NC)/DMPS.SS 1)
PIMP = Presence impulse (NC)/DMPS.NS 1)
1)
If not used strap to “Ground”.
2)
Remove strapping from terminals 2 and/or 3.
