CAT5 or better Ethernet
Cable (
401-0243 ) to/from
the Ethernet Port on the
CPU1 F6150
10BaseT/
PC and the HUB.
BNC-BNC RG58 50Ω Coaxial Cable (181-0118)
with 50Ω terminators (401-0157) on both ends
of the cable to/from the HUB and the CPU1 6150
NETWORK connector.
(401-0244)
10Base2 HUB
Ethernet Communication to F6000 Instruments
2-6 72A-2337-01 Rev. B 11/05

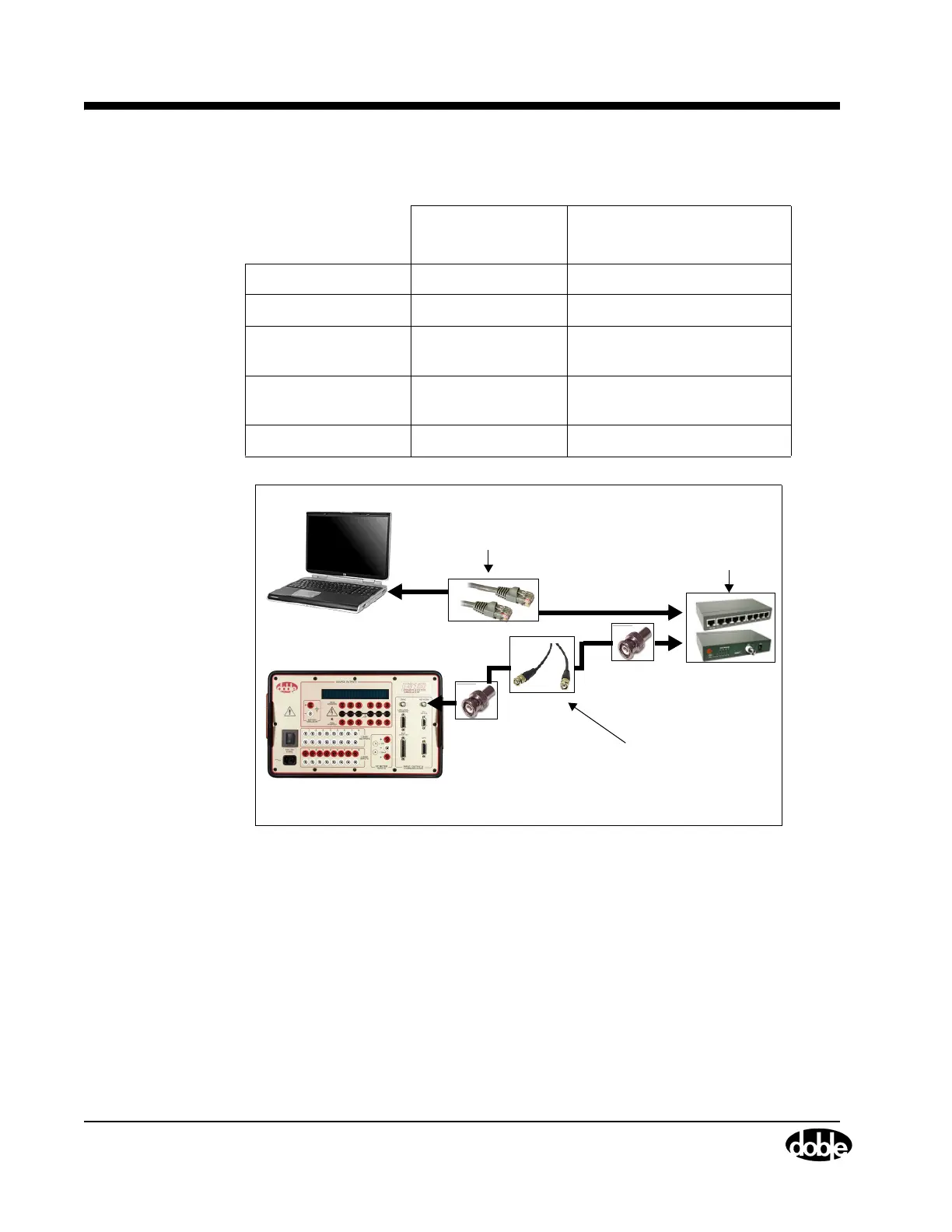

Figure 2.4 Computer to CPU1 F6150
Table 2.1 Ethernet Communications Setup
Instrument
Connection
Cable Type
Comm Port Not Applicable
Baud Rate Not Applicable
IP Address Enter the F6150 IP
address
Default is 10.1.3.1
Slave Addr Enter the F6300 IP
address
Default is 10.1.3.2
Connect with Ethernet
