CPU2 F6300
CPU1 F6150
10BaseT/10Base2 HUB
or 10/100 Switch
( 401-0244 )
BNC-BNC RG58 50Ω Coaxial
Cable (181-0118) to/from a 50Ω
terminator (401-0157) on the HUB
CAT5 or better Ethernet Cable ( 401-0243) to/from
the Ethernet Port on the PC and the HUB and the
HUB to/from the CPU2 F6300.
to/from a 50Ω terminator (401-0157)
connector.
on the CPU1 F6150 NETWORK
F6300 Power System Simulator User Guide
72A-2337-01 Rev. B 11/05 2-9

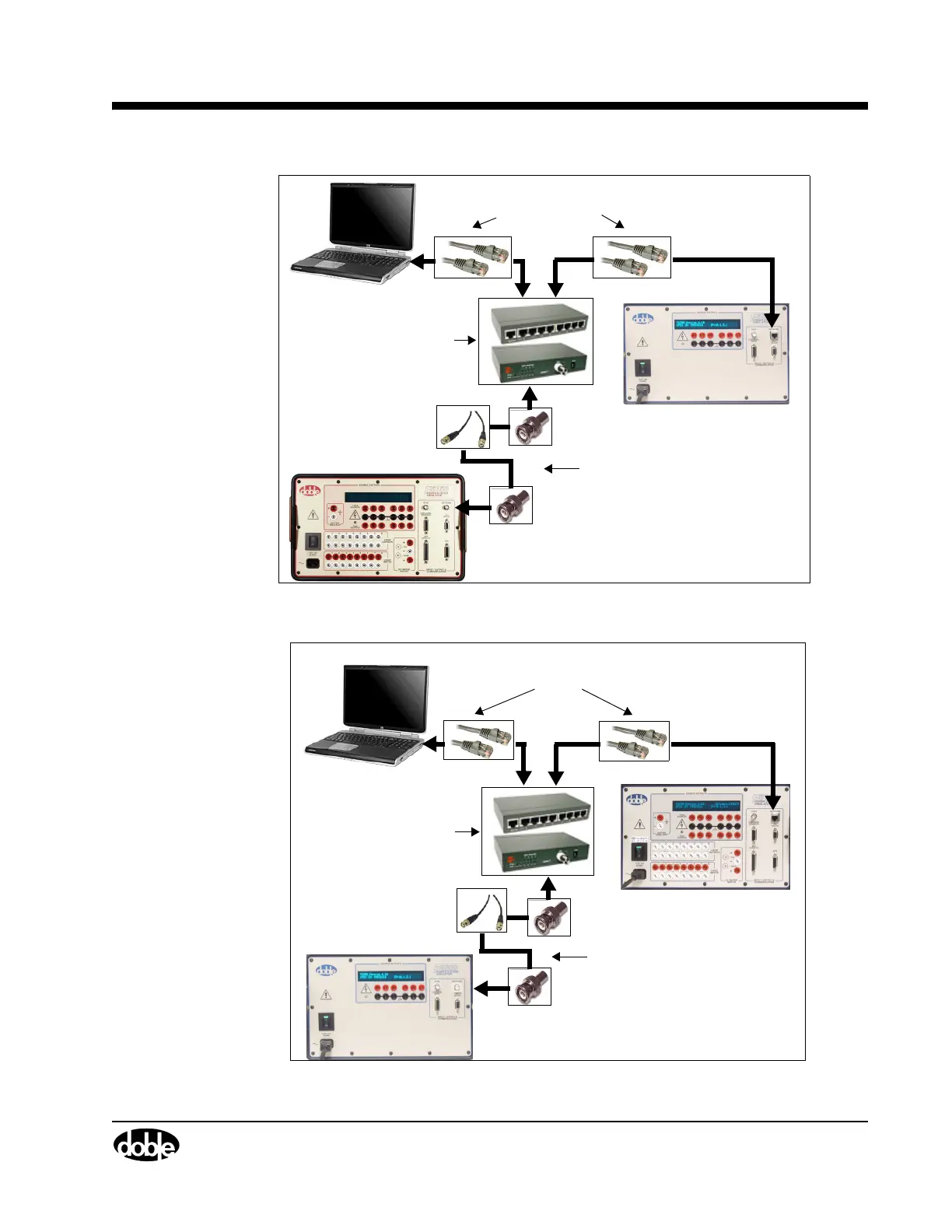

Figure 2.9 Computer to CPU1 F6150/CPU2 F6300
CPU2 F6150
CPU1 F6300
10BaseT/10Base2 HUB
or 10/100 Switch
(
401-0244 )
CAT5 or better Ethernet Cable ( 401-0243) to/from
the Ethernet Port on the PC and the HUB and the
Hub to the CPU2 F6150.
BNC-BNC RG58 50Ω Coaxial cable
(181-0118) with 50Ω terminators
(401-0157) on both ends of the cable
to/from the HUB and the CPU1 F6300
NETWORK connector.
Figure 2.10 Computer to CPU2 F6150/CPU1 F6300
