CPU1 F6300
BNC-BNC RG58 50Ω Coaxial
Cable (181-0118) to/from a
CPU1 F6150
(401-0244)
10BaseT/10Base2 HUB
BNC “T” Adapter
CAT5 or better Ethernet
Cable (
401-0243
) to/from
the Ethernet Port on the
PC and the HUB.
50Ω terminator (401-0157) on the
connector.
the CPU1 F6300 NETWORK
50Ω terminator (401-0157) on
NETWORK connector and a
(401-0160) on the CPU1 F6150
HUB to a BNC “T” connector
Ethernet Communication to F6000 Instruments
2-8 72A-2337-01 Rev. B 11/05

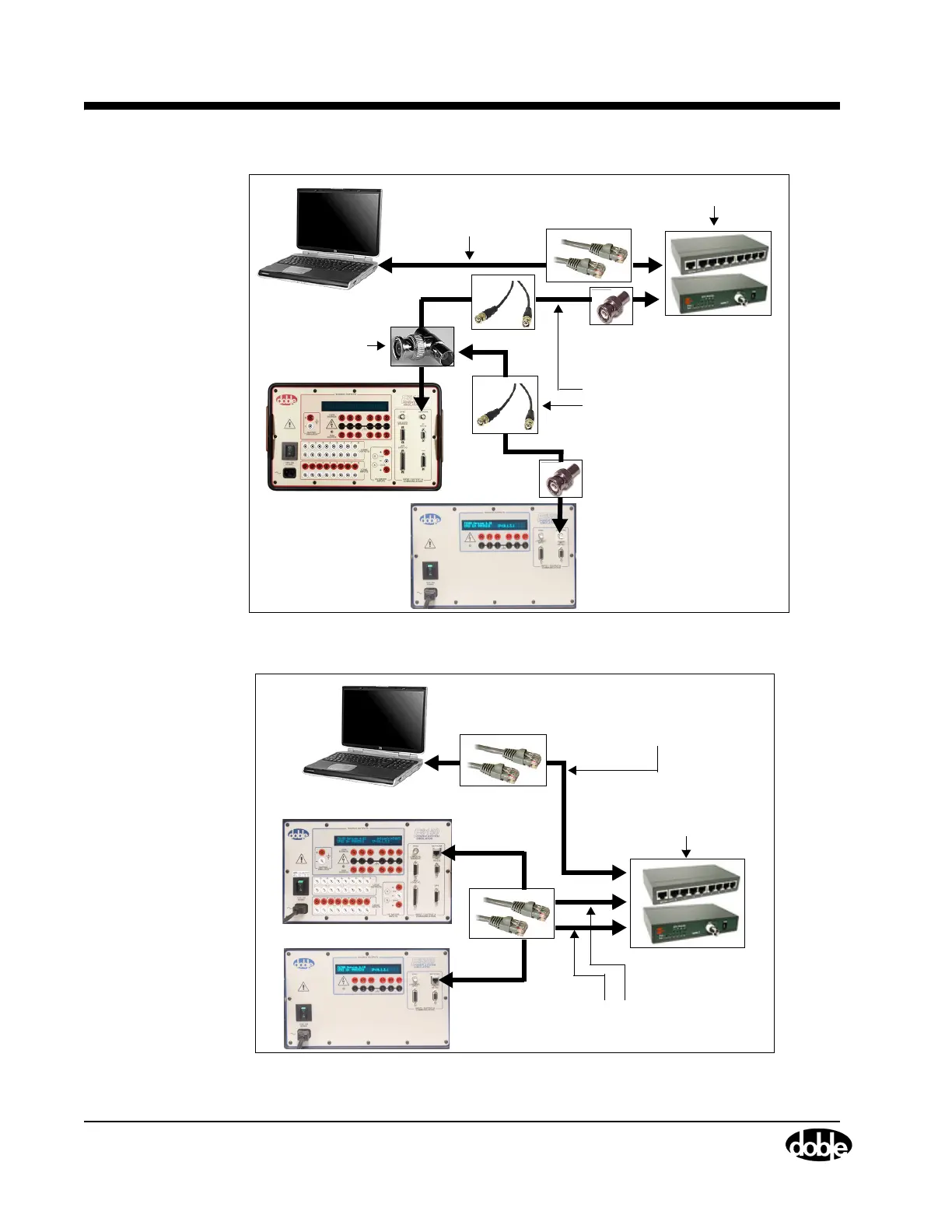

Figure 2.7 Computer to CPU1 F6150/CPU1 F6300
10BaseT/10Base2 HUB
or 10/100 Switch
CPU2 F6150
CPU2 F6300
CAT5 or better Ethernet Cables (401-0243)
to/from the HUB and the CPU 2 F6150 and
(401-0244)
CPU 2 F6300 NETWORK connectors.
CAT5 or better Ethernet
Cable (
401-0243
) to/from
the Ethernet Port on the
PC and the HUB.
Figure 2.8 Computer to CPU2 F6150/CPU2 F6300
