(5) Disconnect the LDP electrical connector from
pump (Fig. 15).
(6) Remove the liquid separator from the canister
(Fig. 16).
(7) Disconnect lines from LDP.
(8) Remove the EVAP canister.
(9) Remove the three screws from the pump.
INSTALLATION
(1) Install pump to bracket and tighten screws to
1.2 N·m (10.6 in. lbs.).
(2) Before installing hoses to LDP, make sure
they are not cracked or split. If a hose leaks, it
will cause the Check Engine Lamp to illumi-
nate. Connect lines to the LDP.
(3) Install electrical connector to pump and push
locking tab to lock (Fig. 10).
(4) Install the EVAP canister.
(5) Install the liquid separator to the canister (Fig.
11).
(6) Connect the negative battery cable.
(7) Use the DRBIIIt scan tool, verify proper oper-
ation of LDP.
(8) Install the access panel.

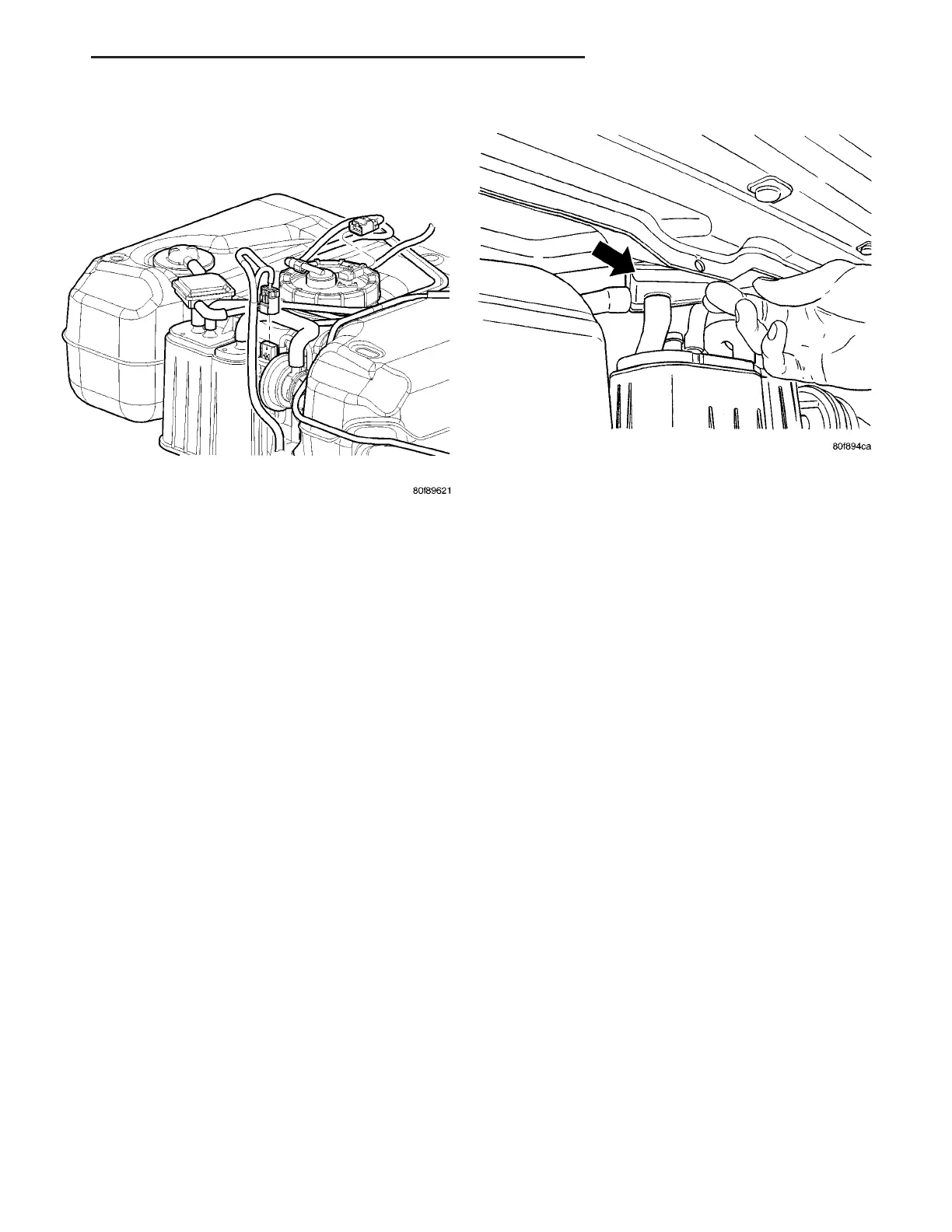

Fig. 15 FUEL TANK CONNECTORS
Fig. 16 LIQUID SEPARATOR
ZB EVAPORATIVE EMISSIONS 25 - 17
VAPOR CANISTER (Continued)
