(5) Install Intake Manifold, refer to the Engine/
Manifolds/Intake Manifold for more information.
(6) Install Air Cleaner Assembly, refer to the
Engine/Air Intake section for more information.
(7) Connect the negative battery cable.
(8) Use the DRBIIIt Scan Tool ASD Fuel System
Test to pressurize the fuel system. Check for leaks.
STARTER BUTTON
REMOVAL
(1) Remove the center bezel (Fig. 16) (Refer to 23 -
BODY/INSTRUMENT PANEL/INSTRUMENT
PANEL CENTER BEZEL - REMOVAL).
(2) Squeeze the tabs on the switch (Fig. 17).

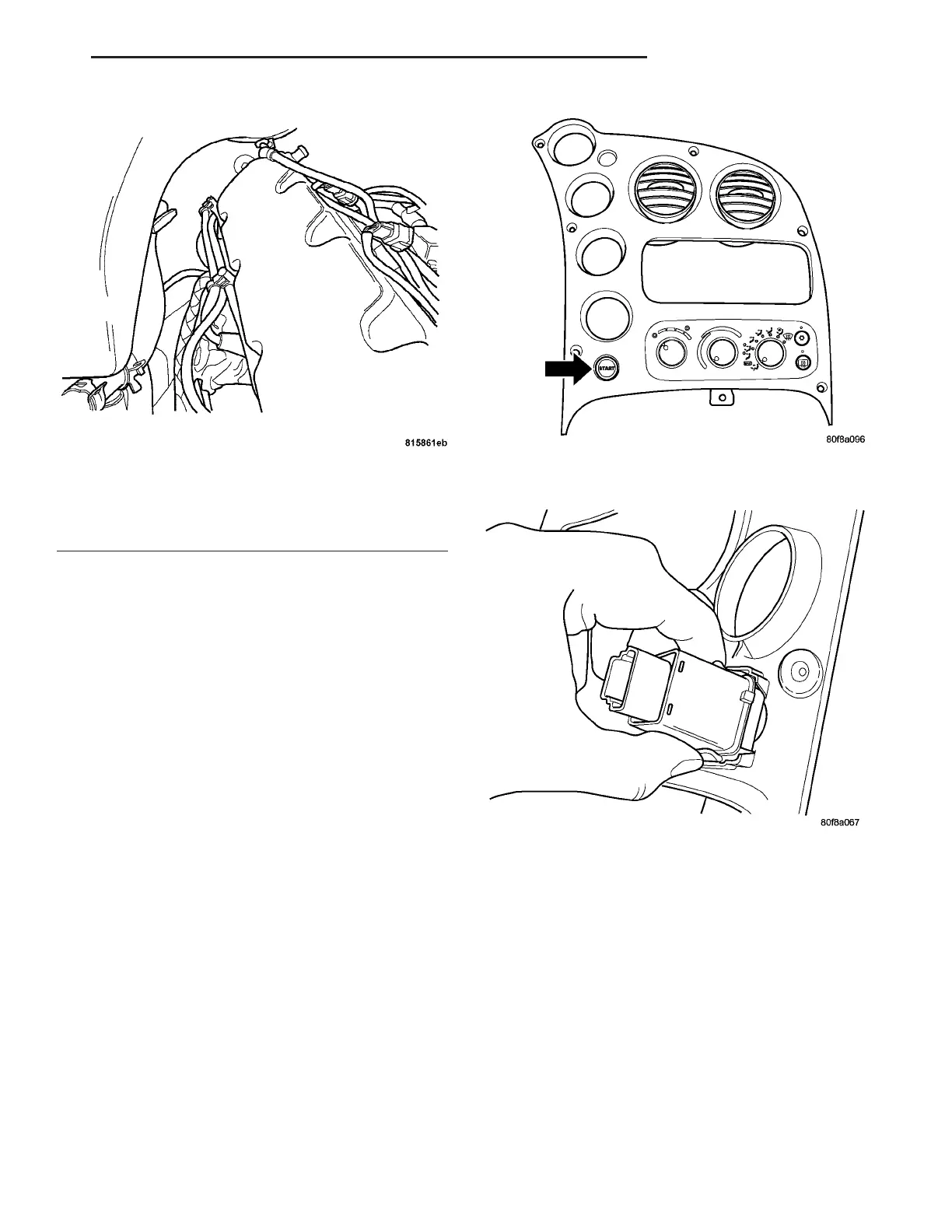

Fig. 15 IGNITION CABLE ROUTING
1 - Fuel Test Port
2 - Fuel Rail
3 - Fuel Injector
4 - Spark Plug Cables
Fig. 16 START BUTTON LOCATION
Fig. 17 START BUTTON CLIPS
ZB IGNITION CONTROL 8I - 9
SPARK PLUG CABLE (Continued)
