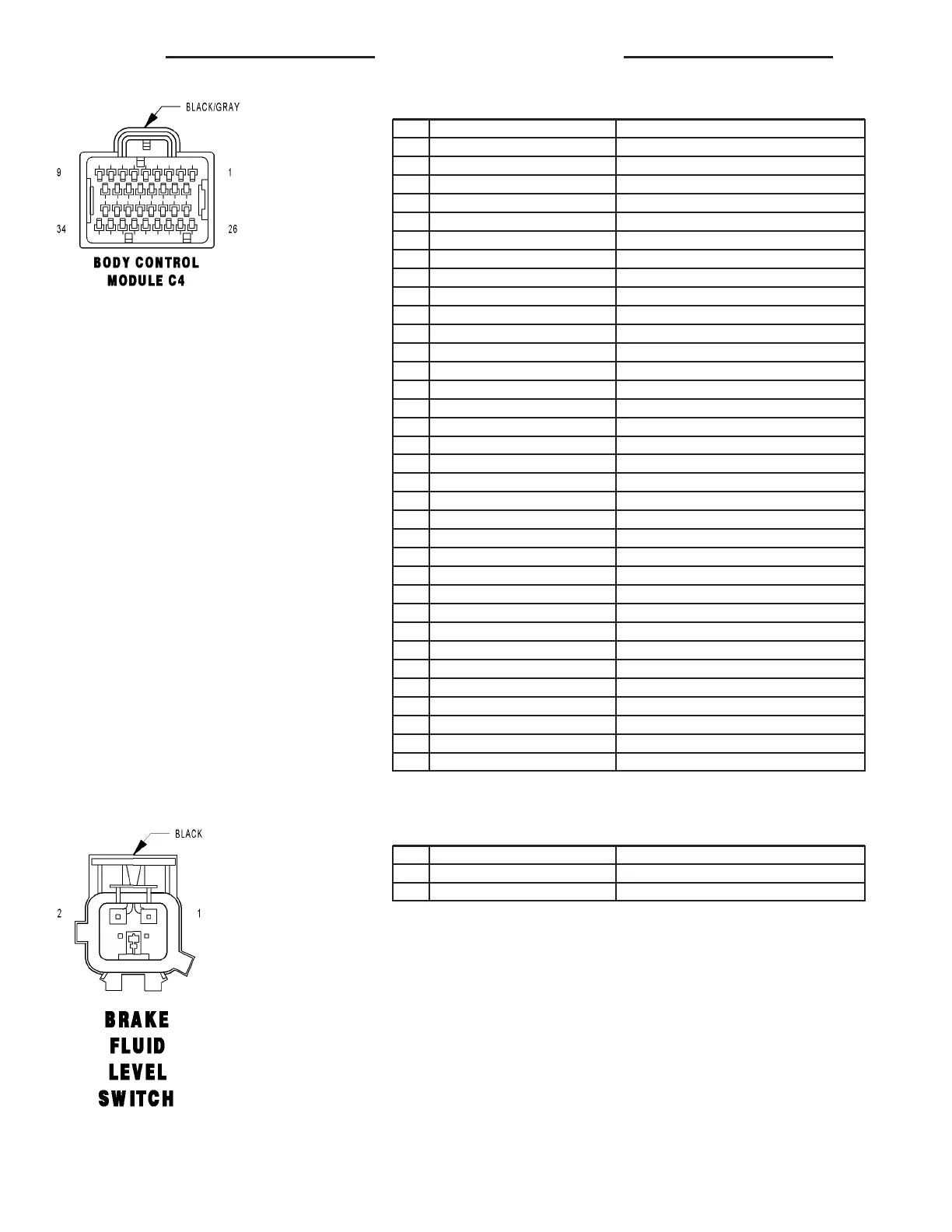

BODY CONTROL MODULE C4 - BLACK/GRAY 34 WAY
CAV CIRCUIT FUNCTION
1 M26 20YL/DB HALO LAMP DRIVER
2- -
3 M21 20YL/BR FOOTWELL LAMPS DRIVER
4 D9 20WT/GY RKE MODULE PROGRAM ENABLE
5 G150 20VT/YL INSTRUMENT CLUSTER WAKE UP SENSE
6 J2 18DB/LG (EXPORT) EXHAUST SOLENOID RELAY CONTROL
7 L124 20WT/DB HEADLAMP RELAY CONTROL
8 F89 20RD/WT RUN/ACC RELAY CONTROL
9 J5 18DB/WT (EXPORT) HEADLAMP WASHER PUMP RELAY CONTROL
10 M1 20YL/VT IOD-B(+)
11 - -
12 M24 20BK/BR COURTESY LAMPS DRIVER
13 X920 20GY/OR RADIO CONTROL MUX RETURN
14 G900 20VT/OR SENSE RETURN
15 P900 20LG/OR PASSENGER DOOR SWITCH RETURN
16 W110 18BR/WT (EXPORT) WASHER SWITCH SENSE
17 J3 18VT/WT (EXPORT) REAR FOG LAMP RELAY CONTROL
18 F921 20PK/YL FUSED IGNITION SWITCH OUTPUT (RUN)
19 - -
20 G20 20BR/VT IGNITION SWITCH SENSE
21 L107 20WT/BK PARK LAMP SWITCH SENSE
22 Q901 20OR/VT PASSENGER WINDOW SWITCH RETURN
23 G910 20VT/BR DRIVER WINDOW SWITCH RETURN
24 X20 20GY/WT RADIO CONTROL MUX
25 - -
26 M28 20YL/TN GLOVE BOX LAMP DRIVER
27 G69 20BK/OR VTSS INDICATOR DRIVER
28 - -
29 L87 20WT/OR FOG LAMP SWITCH SENSE
30 X3 20DG/VT HORN SWITCH SENSE
31 P125 20LG/YL DRIVER EXTERIOR DOOR HANDLE SWITCH SENSE
32 G70 20VT/LB HOOD AJAR SWITCH SENSE
33 G96 20VT/DG REMOTE KEYLESS ENTRY INTERFACE
34 G81 20VT/LG CHIME DRIVER
BRAKE FLUID LEVEL SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 G11 20VT/TN BRAKE WARNING INDICATOR DRIVER
2 Z1 20BK GROUND
