SPECIFICATIONS
TORQUE
DESCRIPTION N·m
Ft.
Lbs.
In.
Lbs.
Band Clamp—Nut 54 40 —
Catalytic Converter V-Band
Clamp—Nut
11 — 100
Support Isolators (9A9 and 9B9 Pil-
lar)—Bolts
28 — 250

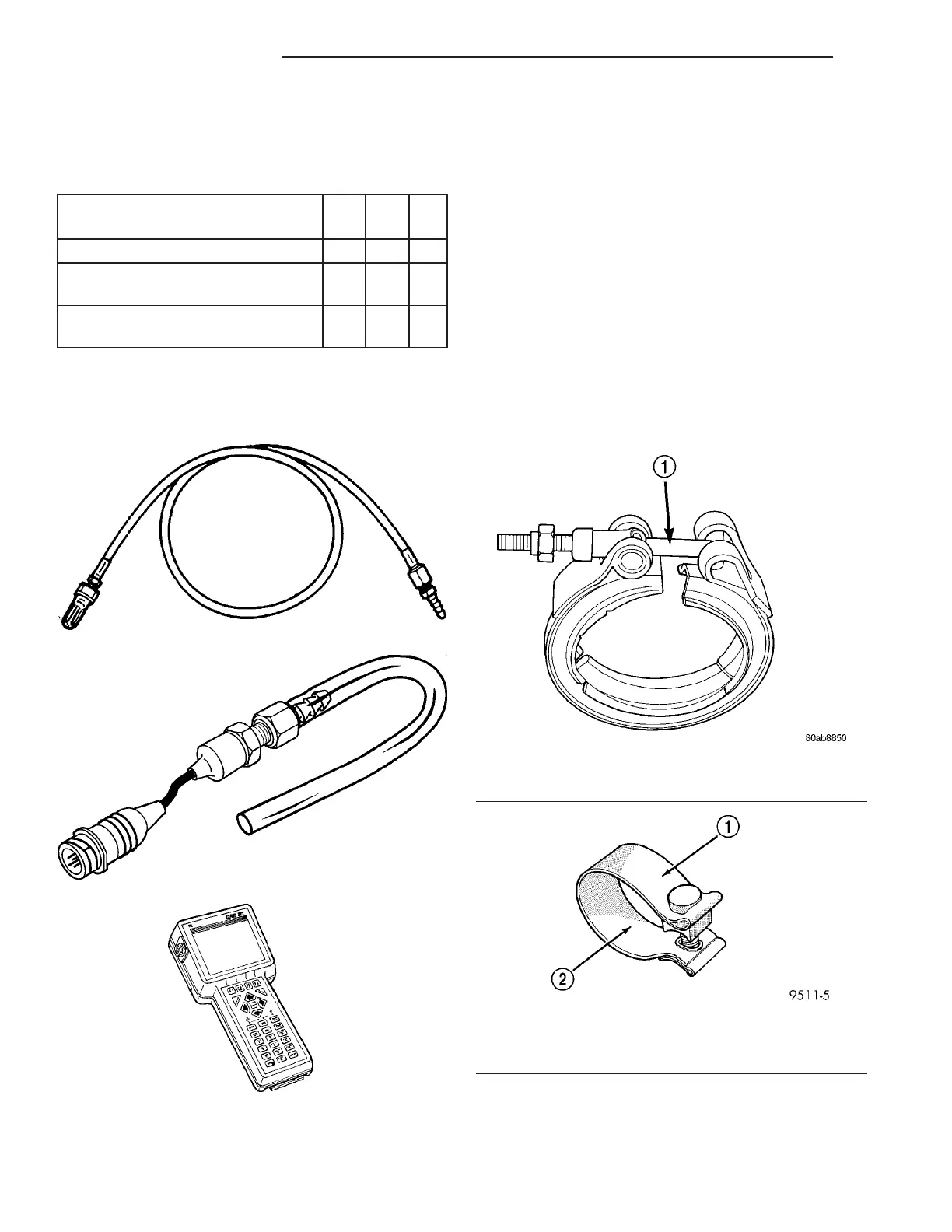

SPECIAL TOOLS
EXHAUST SYSTEM
PIPE CLAMPS
DESCRIPTION
A V-band clamp (Fig. 3) secures the catalytic con-
verter to exhaust manifold connection. When the
V-band clamp is tightened, it forces the flared mating
surfaces of the manifold and the catalytic converter
pipe together. This seals and supports the joint.
NOTE: The V-band clamp must be replaced when
removed.
Band clamps are also used to secure exhaust pipe
connections (Fig. 4).
NOTE: Band clamps are spot welded to exhaust
system. If a band clamp must be replaced, the spot
weld must be ground off.
Back Pressure Test Adapter - CH8519
Pressure Transducer - CH7063
DRB III & PEP Module - OT-CH6010A
Fig. 3 V-Band Clamp
1 - T—BOLT
Fig. 4 Band Clamp
1 - BAND CLAMP
2 - TORQUE SPECIFICATION
