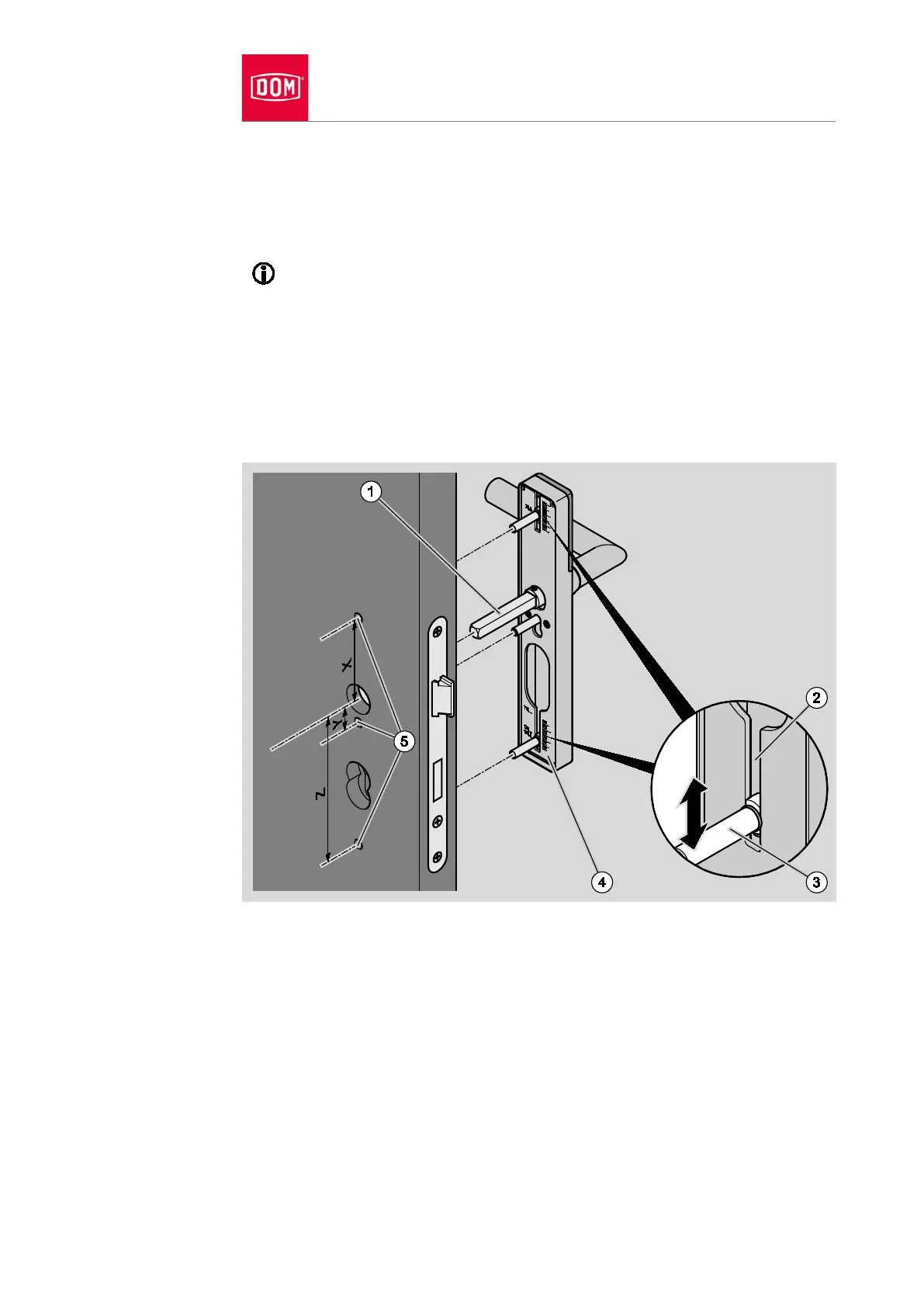

Insert the three threaded bushes (2) through the respective recess into the
guide slots (3) in the assembly profile on the outside of the door as shown.
Push the threaded bushes to the desired positions in line with the
measurements established.
Scales are attached on the inside of the assembly profile next to the
upper and lower guide slot for this purpose.
Guide the spindle (1) into the spindle hub and the threaded bushes into the
drill holes (5) on the door.
If necessary, move the threaded bushes until the threaded bushes can be
inserted easily into the drill holes.
Press the assembly profile (4) on the door leaf until it comes to a stop.
