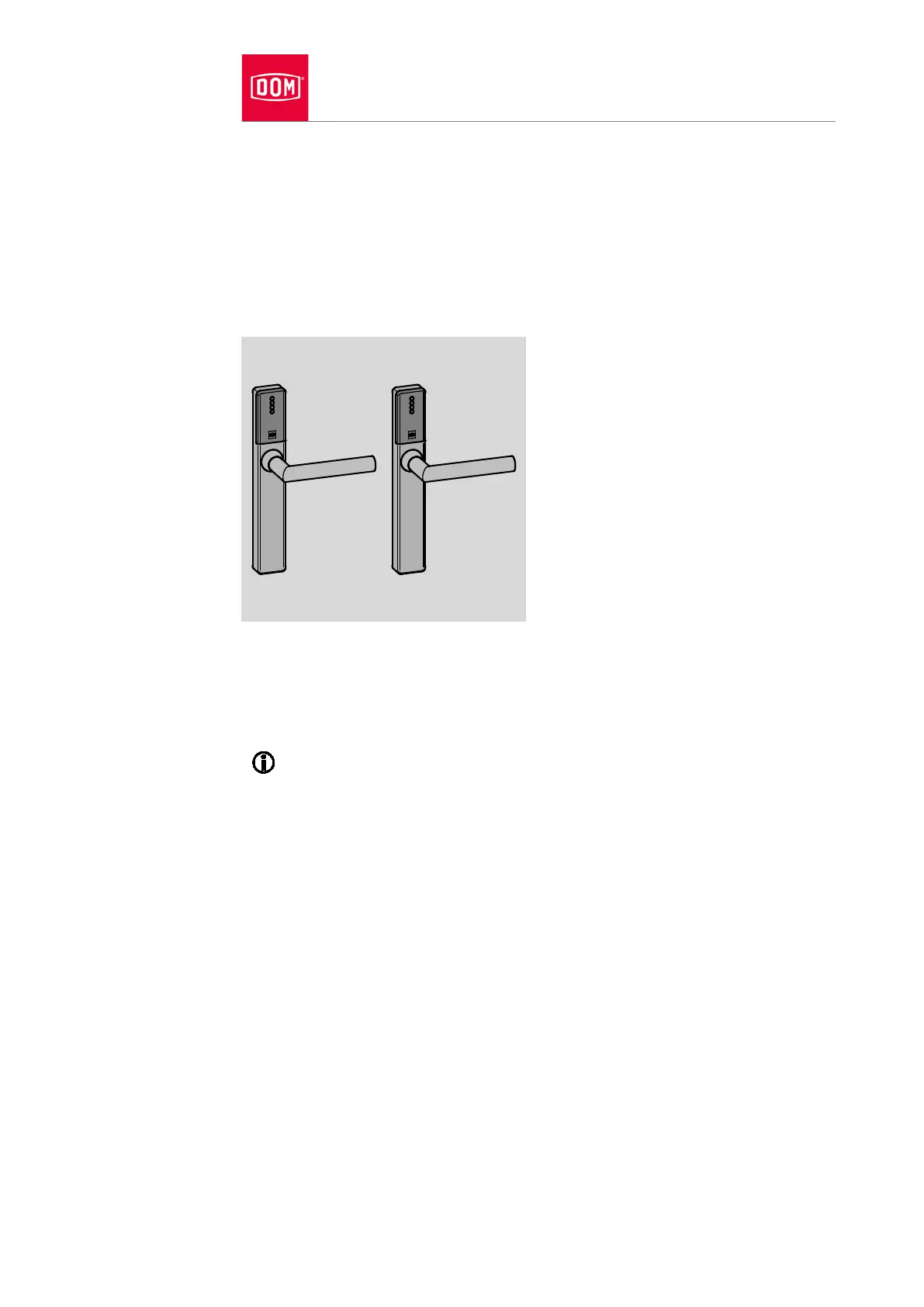

DOM GUARD - GUARD Slimline Set Reading on both Sides

Installing handle
101
 Align the outer lever handle horizontally as described from page 60
onwards.
The horizontal positions of the outer lever handle and inner lever handle must
match.
 Reattach the cover to the assembly profile.
GUARD Slimline set reading on both sides
Installing handle and screwing right through
You must attach the spindle and lever handle to the handle prior to attaching
the handle in position.
The attachment of the lever handle to the electronic handle is described
from page
60 onwards.
The attachment of the spindle is described from page
63 onwards.
The attachment of the spindle with reducing bushes is described from
page 66 onwards.
 Ensure that the spindle is of the correct length as described from page 64
onwards.
The assembly profiles are attached on both sides of the door and screwed
together. Threaded bushes are inserted into the outer assembly profile for this
purpose. The inner assembly profile is attached with long screws which are
screwed into these threaded bushes.
The position of the screw connections depends on the position of the drill
holes which are present on the door and the lock. Guide slots are present in
the assembly profiles in which the screw connections can be moved to the
correct positions. Corresponding scales are attached alongside the guide slots
for this purpose.
