Compact Wideline set reading on one side

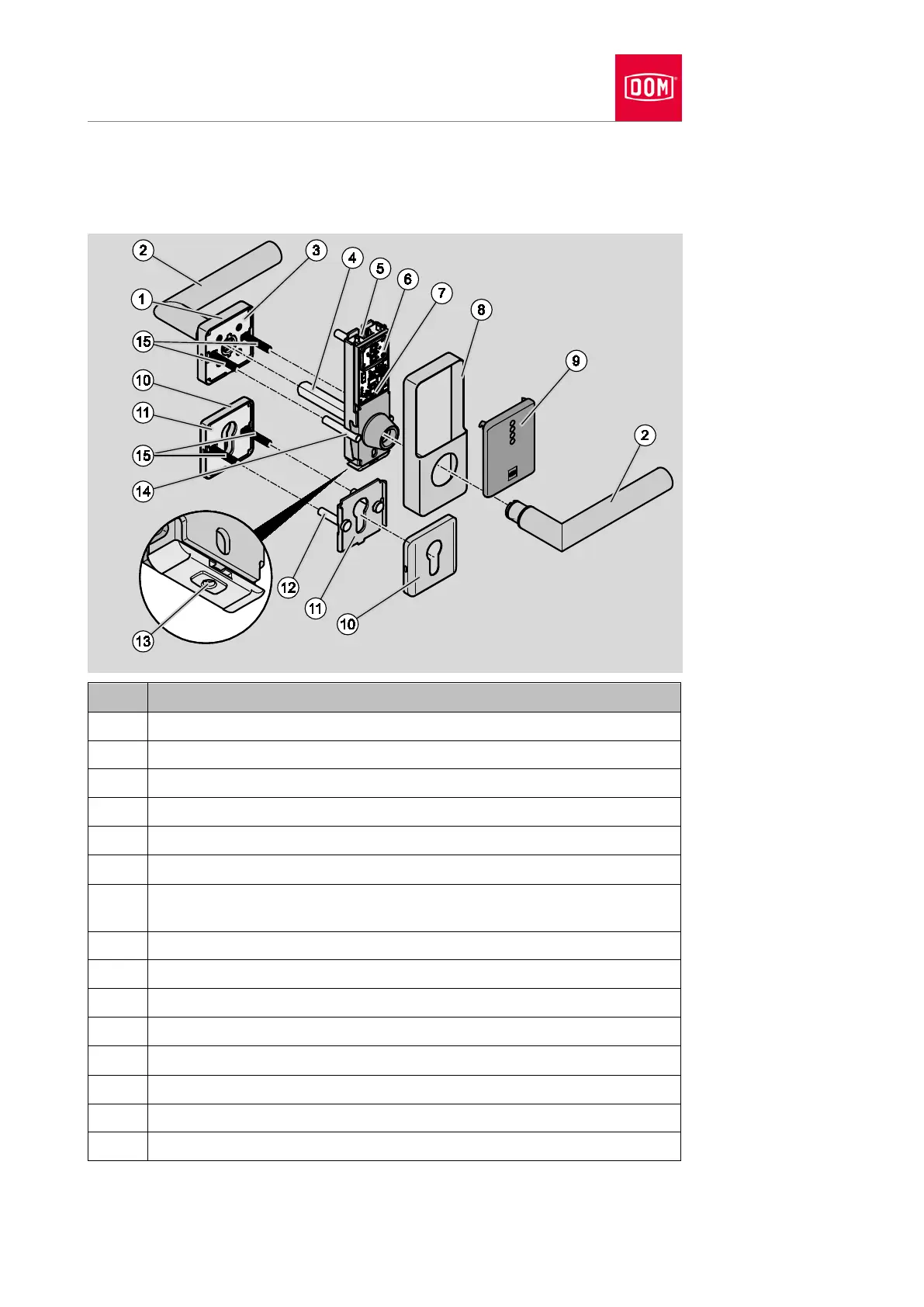

The most important components of Wideline Compact handles with cylinder
rosette are presented in the diagram below.
1 Cover lever handle rosette inside
2 Lever handle
3 Assembly profile lever handle rosette inside
4 Spindle
5 Battery compartment
6 RFID reading field
7 Assembly profile for outer short plate, with electronic circuit, reading field
and LED display
8 Cover (short plate with reading field)
9 Plastic cover for reading field
10 Cover for cylinder rosette inside and outside
11 Assembly profile for cylinder rosette inside and outside
12 Head sleeves (both sides)
13 Cover closure outside
14 Catch sleeves (both sides)
15 Long screws
