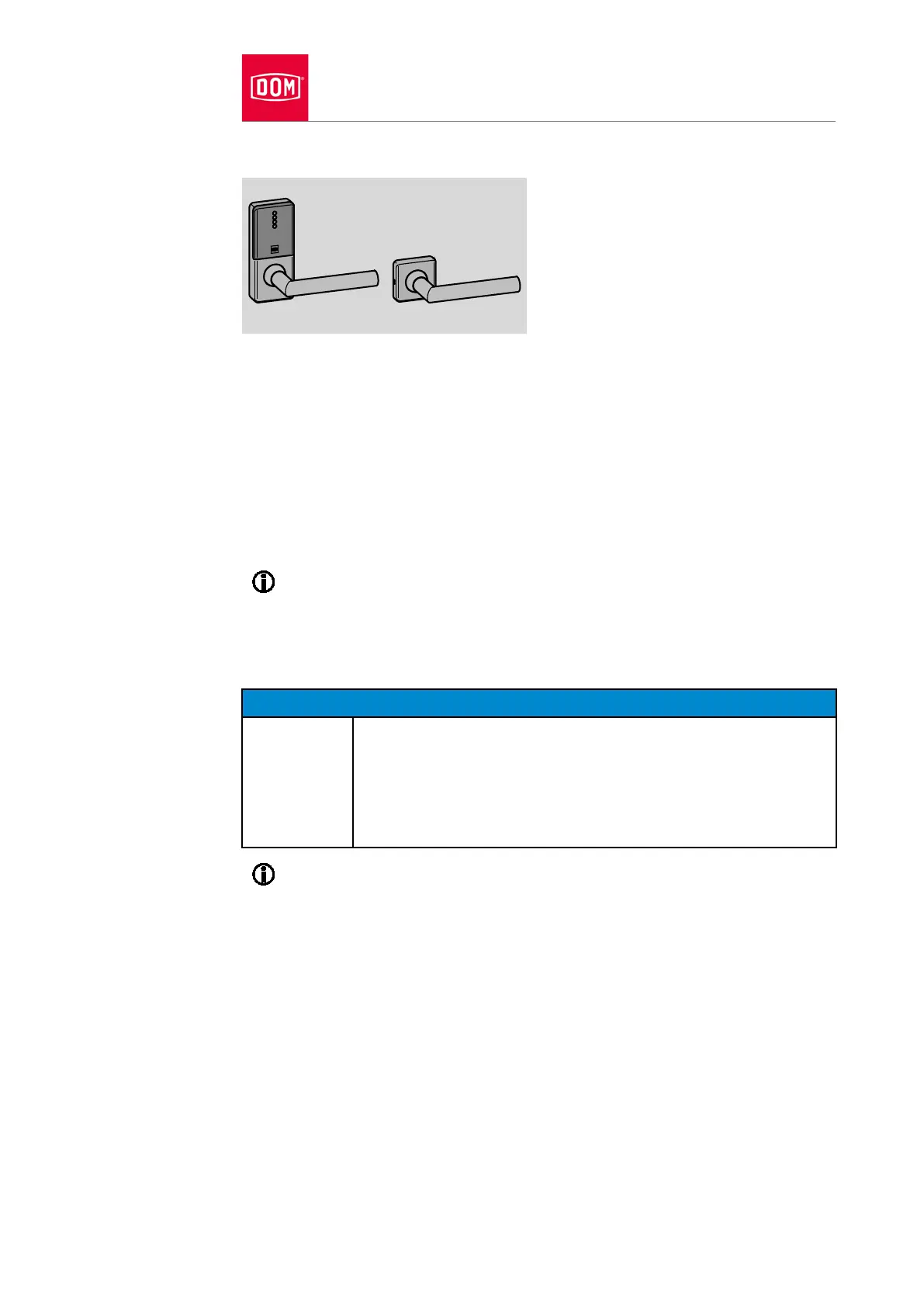

GUARD Wideline Compact without rosettes
The short plate with reading field is attached on the outside of the door. Two
catch sleeves are inserted laterally on the outer assembly profile for this
purpose. The inner assembly profile is attached with two long screws which
are screwed into these catch sleeves.
Attachment by screwing on is not possible for this handle.
You must attach the spindle and lever handle to the handle prior to attaching
the handle in position.
The attachment of the lever handle to the electronic handle is described
from page
60 onwards.
The attachment of the spindle is described from page
63 onwards.
The attachment of the spindle with reducing bushes is described from
page 66 onwards.
It is possible to damage the surface of the lever handle when
removing the cover.
Do not use any force when removing covers from handles.
Twist the cover round the lever handle while pulling it off in
order to avoid contact.
An electronic GUARD Slimline Compact is presented in the following
section. The procedure for other electronic handles is the same as the
one described here.
You will require a Torx10 screwdriver to release the screw on the cover
closure.
Proceed as follows to remove the cover from the electronic handle:
