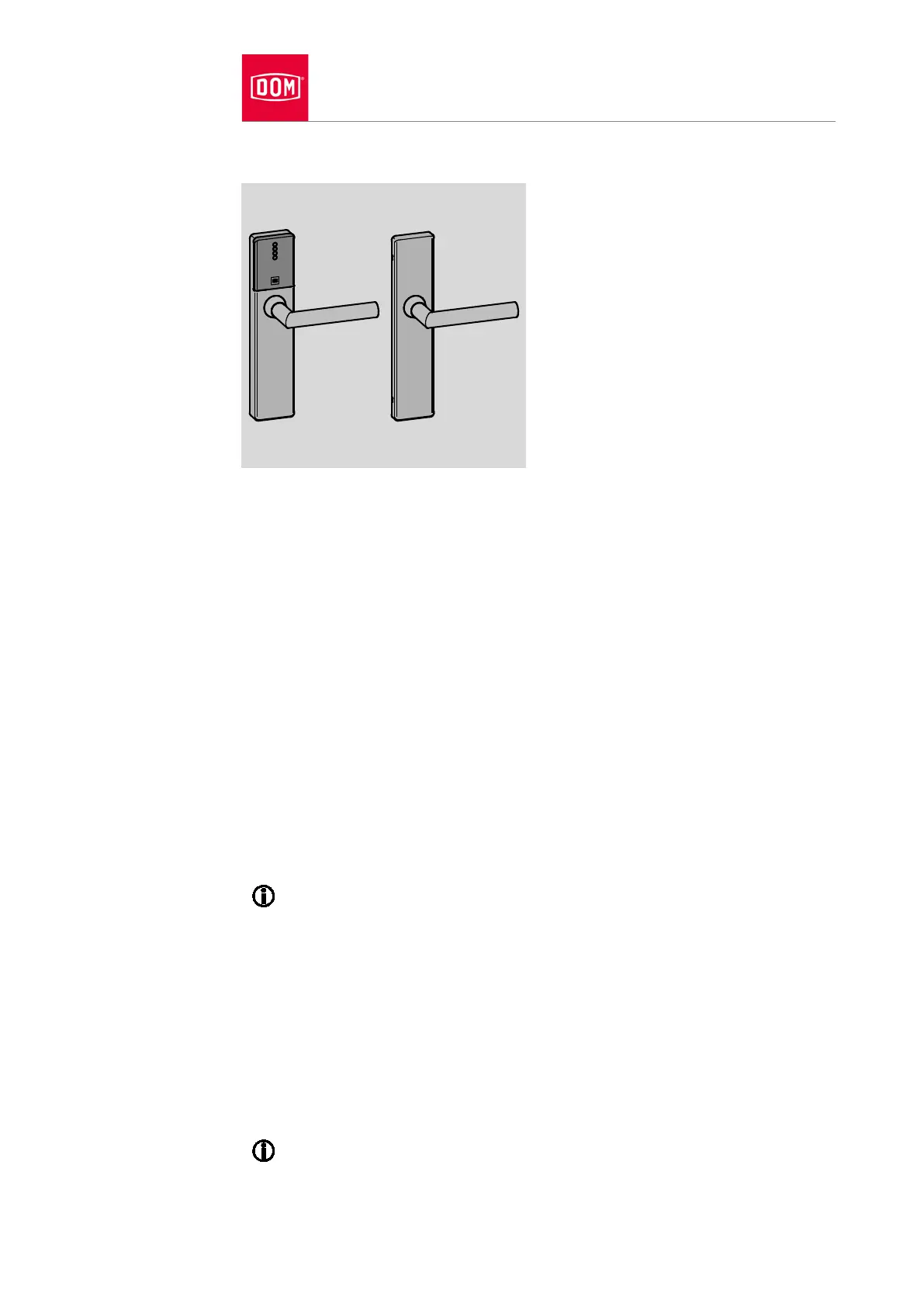

GUARD Wideline set reading on one side
• Long plate Wideline cover outside
• Long plate Wideline cover inside
• Assembly profile long plate outside with electronic circuit
• Assembly profile for long plate inside without electronic circuit with lever
handle
• Outer lever handle with lever handle attachment screw (M5 x 50)
• Spindle of suitable length
• adapter sleeves where necessary (see page 52)
• 2 lithium batteries, 1.5 V, AAA (inserted in battery compartment on delivery)
• Attachment material:
− 3 threaded bushes (head sleeves)
− 4 long screws (M5 x 30 to M5 x 90, depending on door leaf thickness in
order)
− 8 short screws (M5 x 12)
The short screws which are supplied are only suitable for metal doors
with pre
-cut M5 threads. You can obtain suitable screws for doors made
of different material via specialist retailers.
The screws must be of the same length as the screws supplied and the
heads must be uniform. The
head of the short screw must be wider than
mm). It may have a maximum diameter of 9.8 mm and
mm.
Consult a specialist retailer for advice about suitable short screws for
your door.
You can pre-drill the screwing points in order to guarantee safe
screwing.
