Components of mechanical long plate handle sets

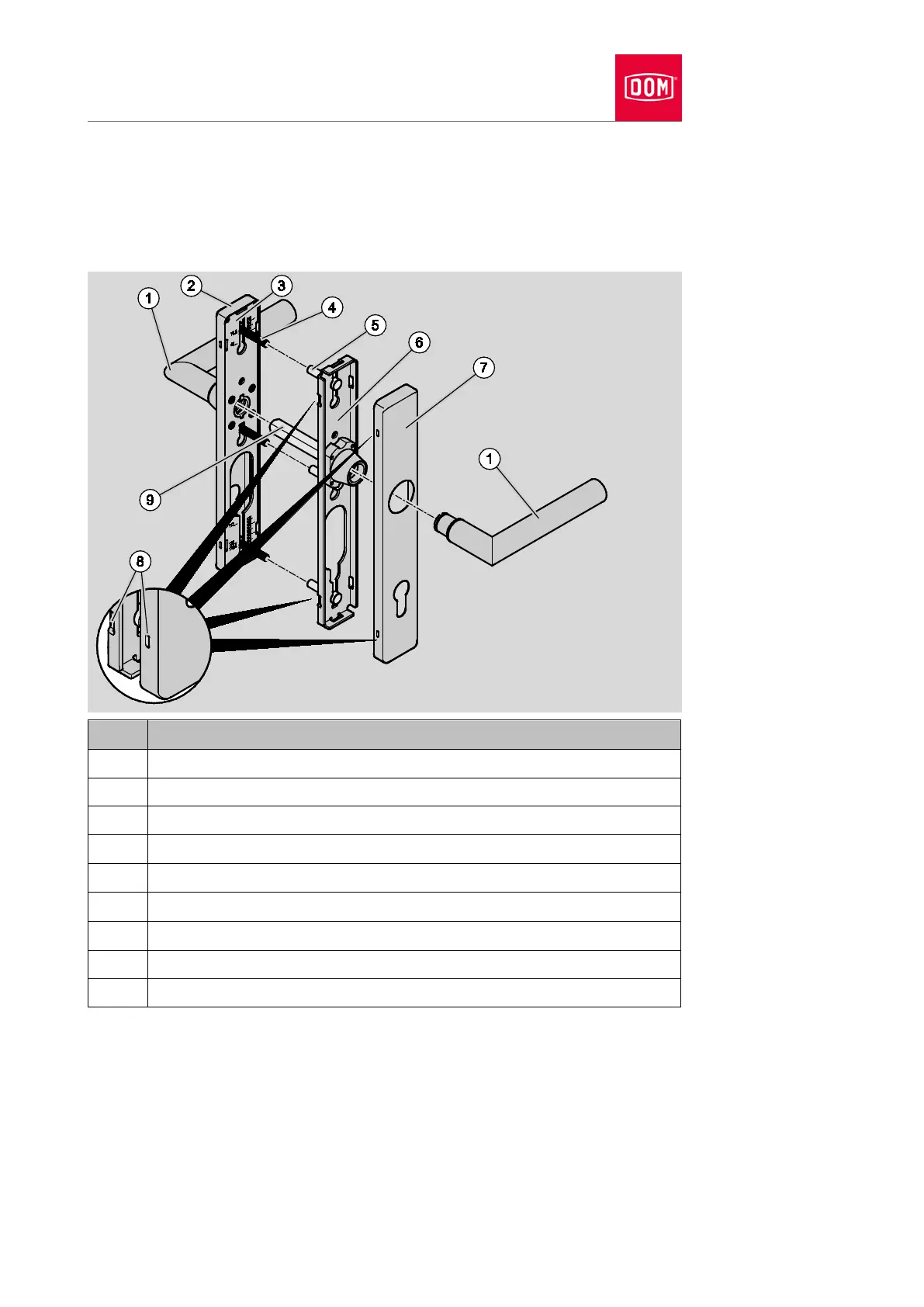

The most important components of the mechanical long plate handle set are
presented in the diagram below.
The Slimline and Wideline handles only differ in the width of the covers.
1 Lever handle
2 Cover (long plate without reading field)
3 Assembly profile inner long plate
4 Long screw
5 Threaded bush
6 Assembly profile outer long plate
7 Cover (long plate without reading field)
8 Clip for attaching the cover
9 Spindle
