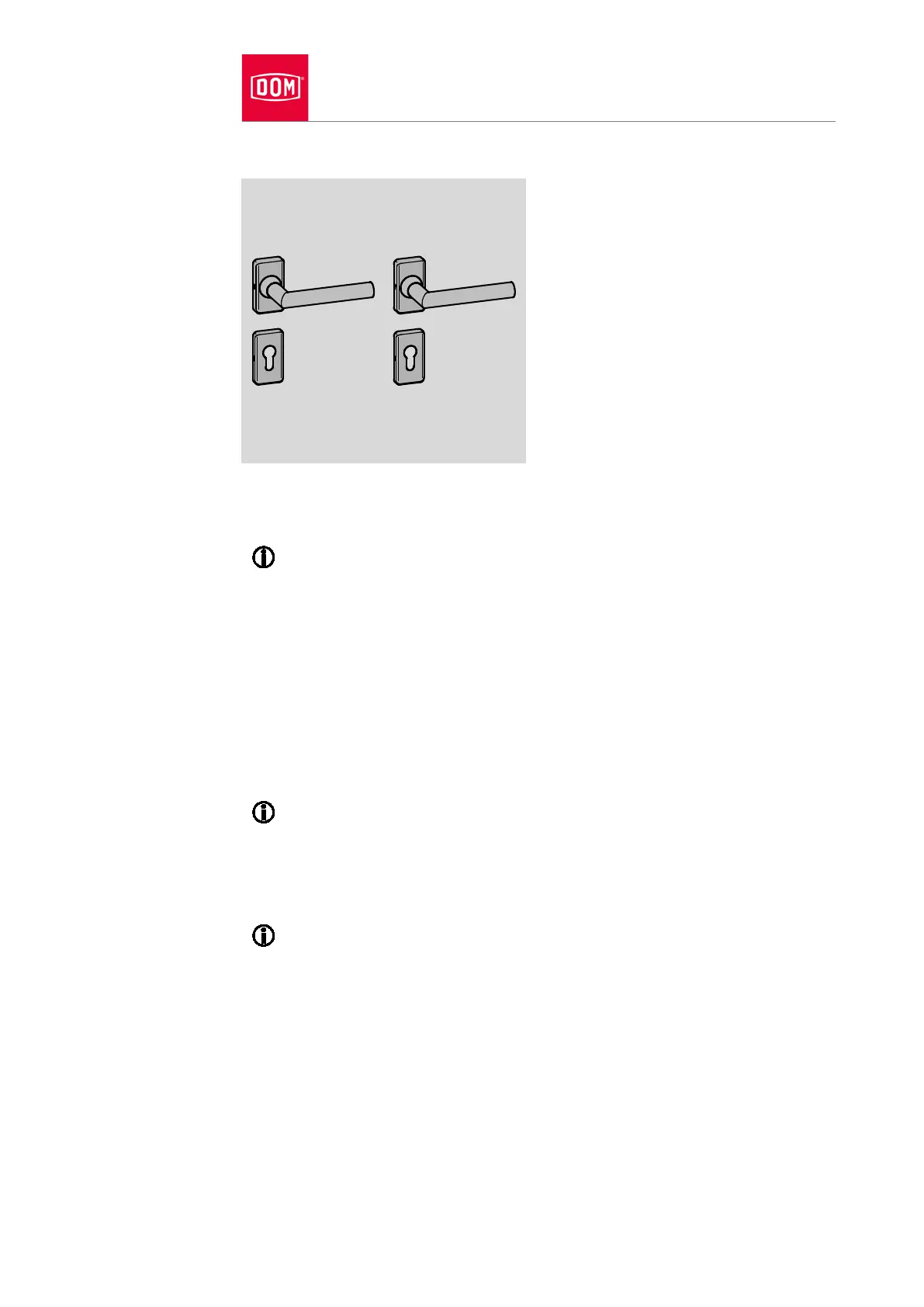

Mechanical GUARD Slimline rosette set
The lever handle and cylinder rosettes are screwed onto the door leaf on both
sides with two short screws each.
The short screws which are supplied are only suitable for metal doors
with pre
-cut M5 threads. You can obtain suitable screws for doors made
of different material via specialist retailers.
The screws must be of the same length as the screws s
upplied and the
heads must be uniform. The head of the short screw must be wider than
the drill hole (5.5
mm). It may have a maximum diameter of 9.8 mm and
mm.
Consult a specialist retailer for advice about suitable short screws for
your door.
You can pre-drill the screwing points in order to guarantee safe
screwing.
You must attach the spindle on the handle and align the lever handle prior to
attaching the handle.
The alignment of the lever handle on the handle is described from
page
58 onwards.
The attachment of the spindle is described from page
63 onwards.
spindle with reducing bushes is described from
Always install the lever handle fittings/rosettes first for two-part handles. Only
install the cylinder rosettes once the lever handle fittings/rosettes have been
installed.
