Align the outer lever handle horizontally as described from page 60
onwards.
The horizontal positions of the outer lever handle and inner lever handle must
match.
Reattach the cover to the assembly profile.

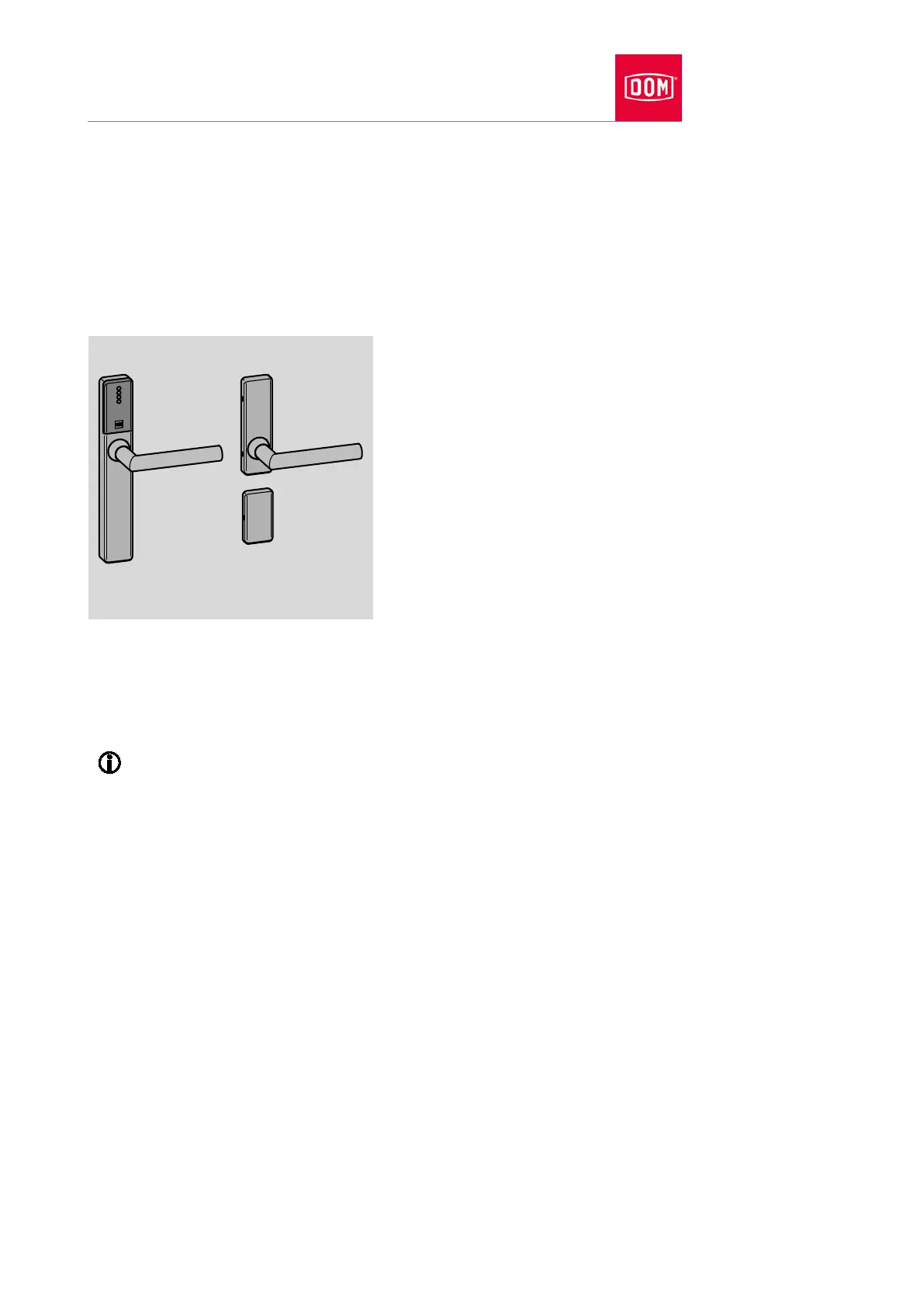

GUARD Slimline set reading on one side with short plate and rosette
Installing handle and screwing right through
You must attach the spindle and lever handle to the handle prior to attaching
the handle in position.
The attachment of the lever handle to the electronic handle is described
from page
60 onwards.
The attachment of the spindle is described from page
63 onwards.
The attachment of the spindle with reducing bushes is described from
page 66 onwards.
Always install the lever handle fittings/rosettes first for two-part handles. Only
install the cylinder rosettes once the lever handle fittings/rosettes have been
installed.
The assembly profiles are attached on both sides of the door and screwed
together. Threaded bushes are inserted into the outer assembly profile for this
purpose. The inner assembly profile is attached with long screws which are
screwed into the threaded bushes.
The short plate on the inside is attached with two long screws (screwing right
through). The cylinder rosette is attached with a long screw in the lowest drill
hole (screwing right through). The assembly profile is attached with a short
screw at the upper attachment point of the cylinder rosette (screwing on).
