DOM GUARD - Components of the Slimline Rosette Set

Overview of the most important components of the handles
31
Components of the Slimline rosette set

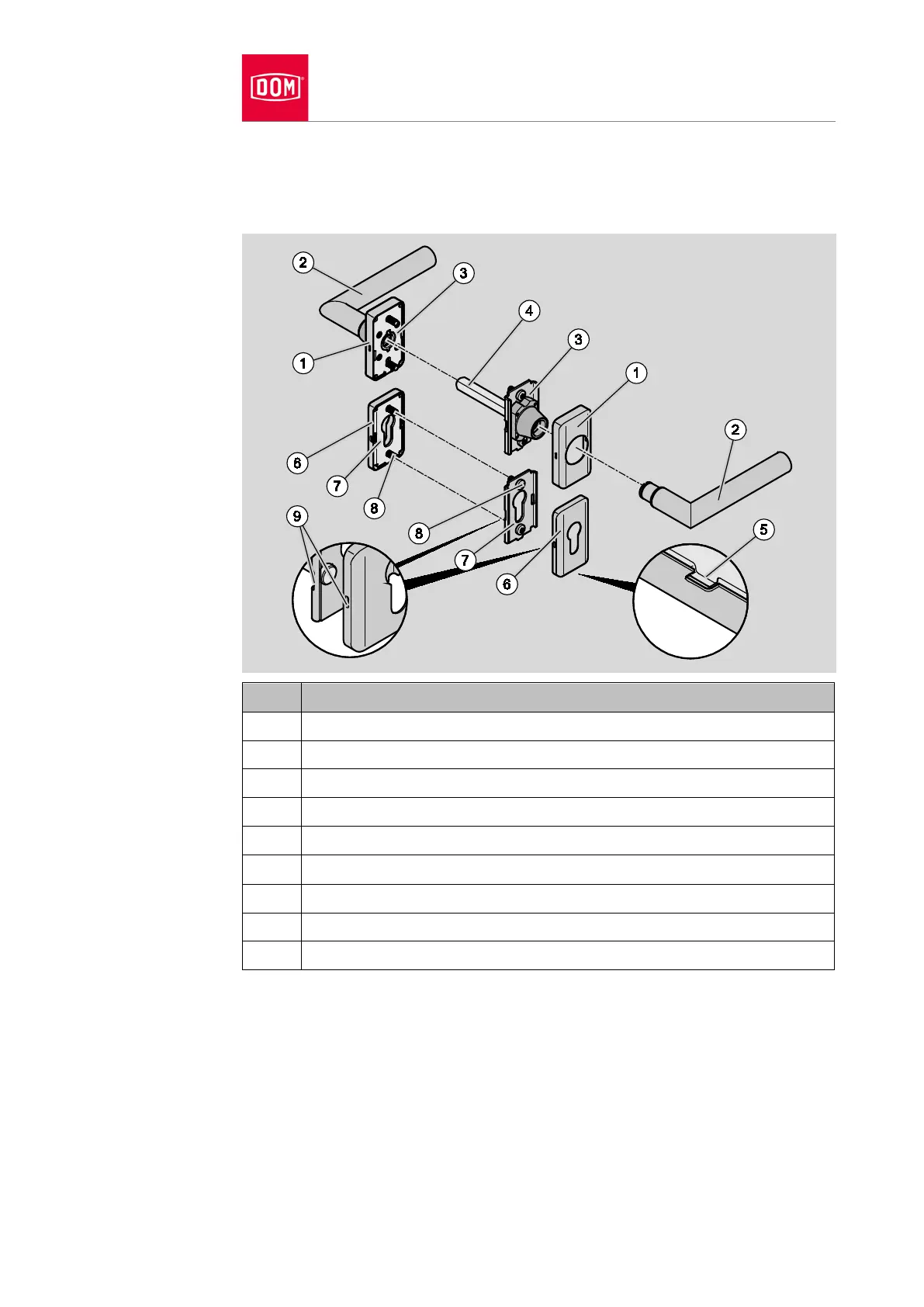

The most important components of the Slimline rosette set are presented in
the diagram below.
No.
Name
1 Cover for lever handle rosette inside and outside
2 Lever handle
3 Assembly profile lever handle rosettes
4 Spindle
5 Gripping point for rosette lifter
6 Cover for cylinder rosette inside and outside
7 Assembly profile for cylinder rosette inside and outside
8 Screws for screwing on the assembly profiles
9 Locking points for securing the cover of the mechanical handle
