Align the outer lever handle horizontally as described from page 60
onwards.
The horizontal positions of the outer lever handle and inner lever handle must
match.
Reattach the cover to the assembly profile.

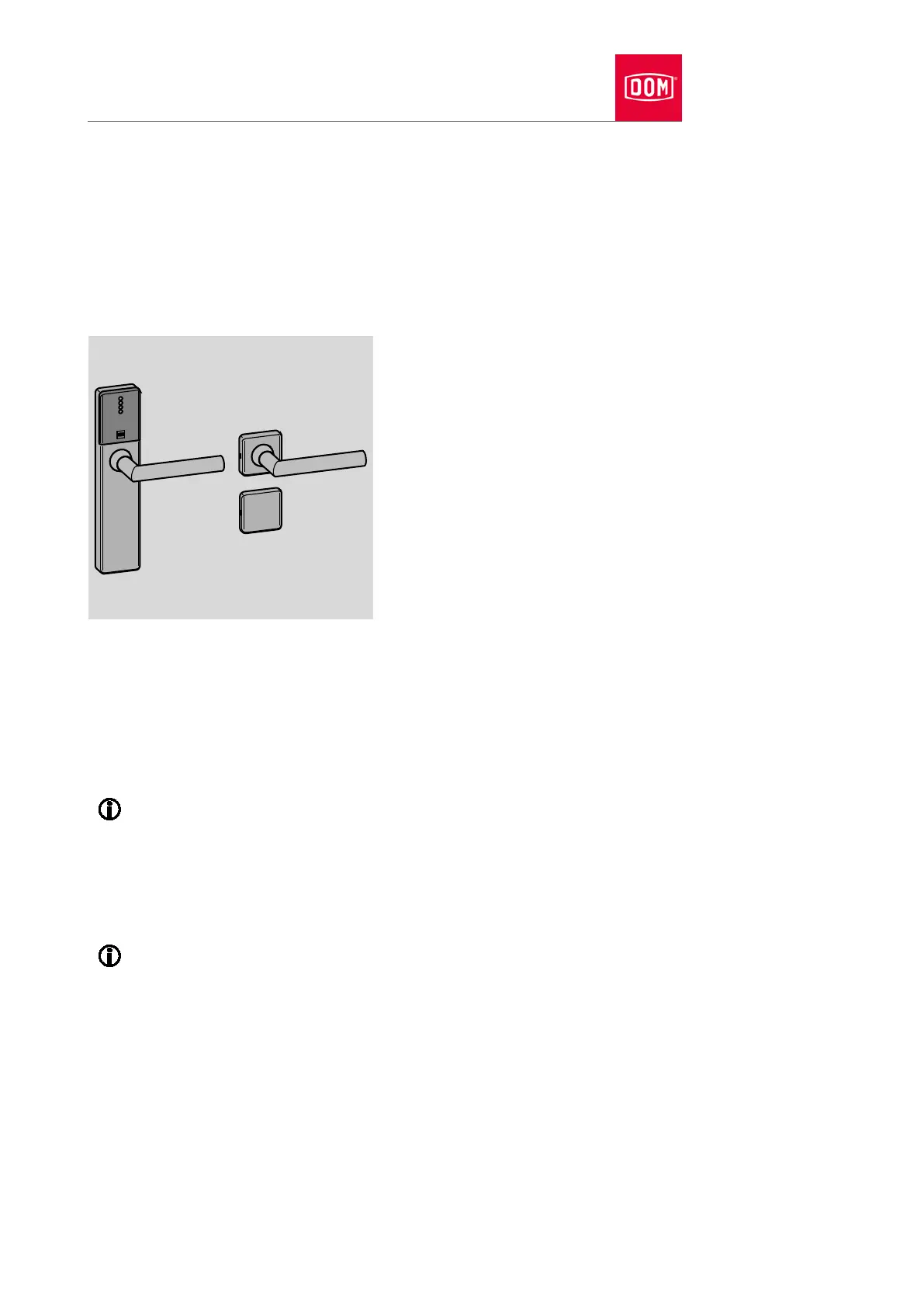

GUARD Wideline set reading on one side with rosettes
Installing handle and screwing right through
You can attach the GUARD Wideline laterally on the outer assembly profile
with four catch sleeves next to one another in pairs. Handle rosette and
cylinder rosette are attached on the inside. You must remove the cover of the
electronic handle from the assembly profile for this attachment.
u must hold the catch sleeves in place until the assembly profile is in
contact with the door leaf. You can also use assembly aids which can be
supplied separately for this purpose.
You must attach the spindle and lever handle to the handle prior to attaching
the handle in position.
The attachment of the lever handle to the electronic handle is described
from page
60 onwards.
The attachment of the spindle is described from page
63 onwards.
The attachment of the spindle with reducing bushes is described from
page 66 onwards.
