Align the outer lever handle horizontally as described from page 60
onwards.
The horizontal positions of the outer lever handle and inner lever handle must
match.
Reattach the cover to the assembly profile.

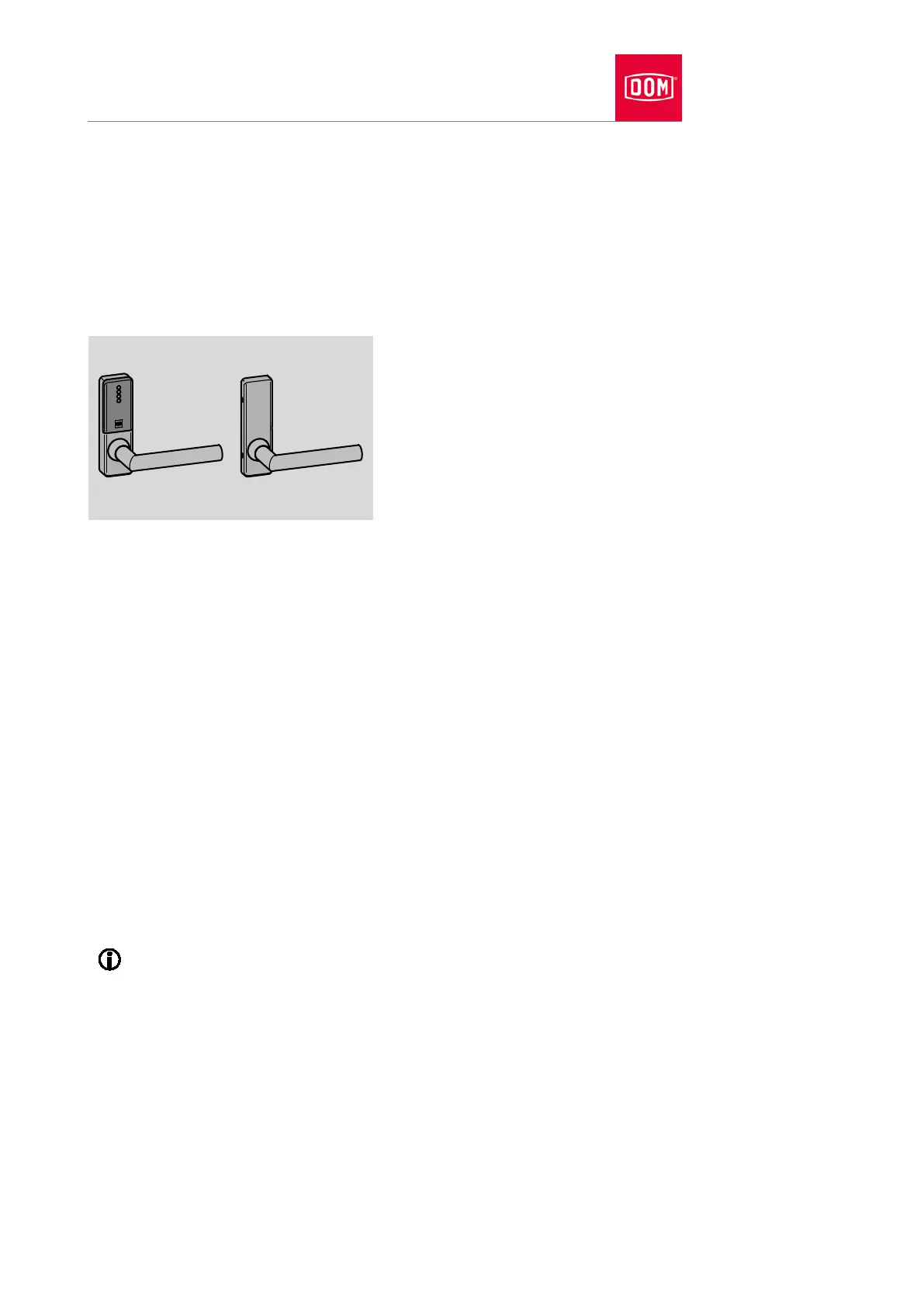

GUARD Compact Slimline without rosettes
The handles of this type can only be attached by screwing all the way through
on the door leaf.
If screwing all the way through is not possible at an attachment point below
the lever handle, you can also screw the assembly profile onto the door leaf
with a short screw at this attachment point.
The position of the attachment points depends on the position of the drill holes
which are present on the door and the lock. A guide slot is present in the
assembly profiles in which the screw connection can be moved to the correct
position. A corresponding scale is attached next to the upper guide slot for this
purpose.
It is necessary to remove the cover of the electronic handle for inserting the
threaded bushes into the assembly profile.
You must attach the spindle and lever handle to the handle prior to attaching
the handle in position.
The attachment of the lever handle to the electronic handle is described
from p
age 60 onwards.
The attachment of the spindle is described from page
63 onwards.
The attachment of the spindle w
ith reducing bushes is described from
