DOM GUARD - GUARD Wideline Rosette Set

Installing handle
207
 Check the outer lever handle for flawless functioning (coupling).
If the outer lever handle does not couple flawlessly, align it as follows:
 Remove the cover of the outer handle as described in section “Removing
handle” from page 234 onwards.
 Align the outer lever handle horizontally as described from page 60
onwards.
The horizontal positions of the outer lever handle and inner lever handle must
match.
 Reattach the cover to the assembly profile.

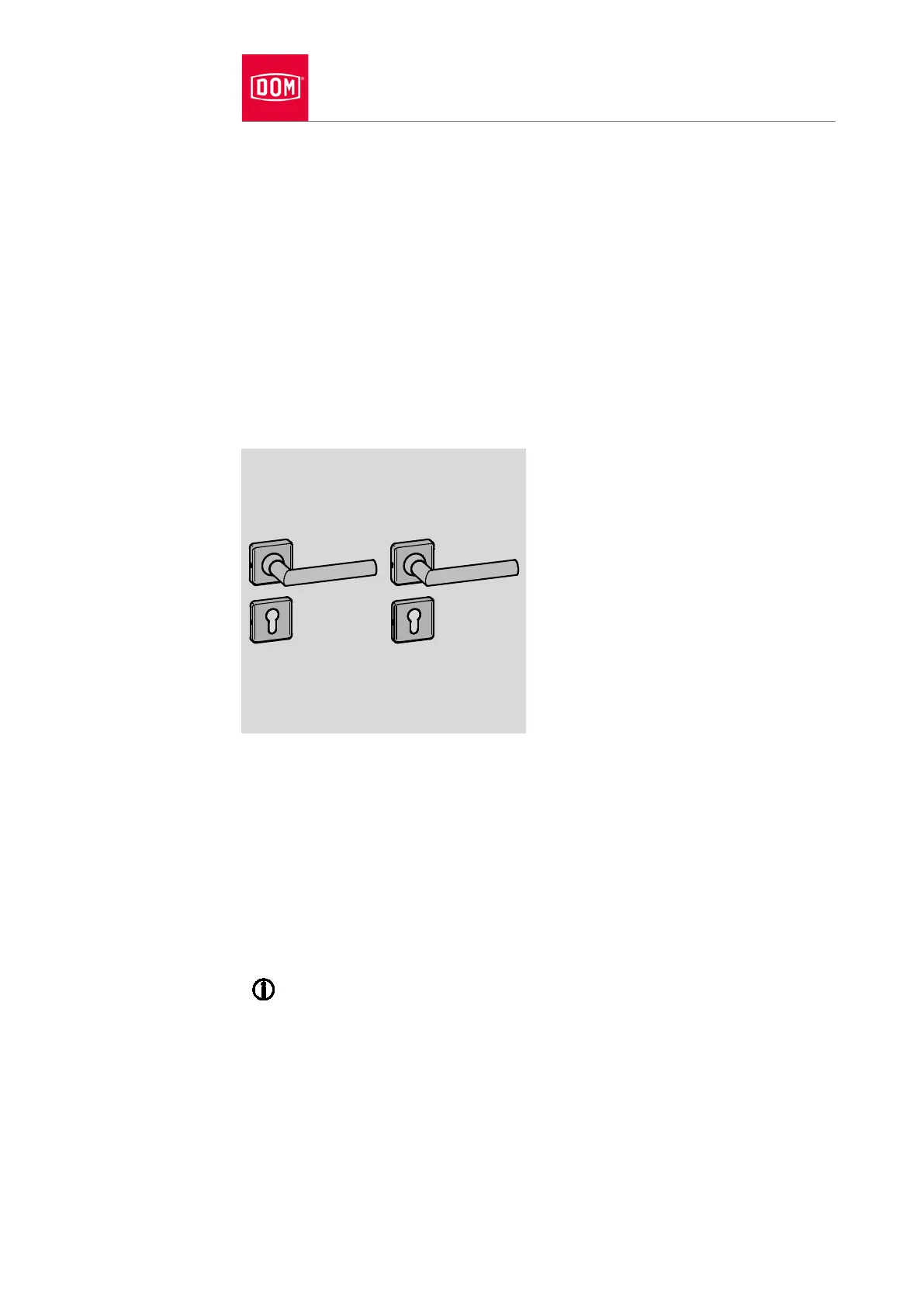

GUARD Wideline rosette set
Installing handle and screwing right through
The assembly profiles of the cylinder rosette and the lever handle rosette are
attached with two threaded bushes each on the outside of the door. The inner
assembly profiles are attached with two long screws each which are screwed
into these threaded bushes.
You must attach the spindle on the handle and align the lever handle prior to
attaching the handle.
The alignment of the lever handle on the handle is described from
page
58 onwards.
The attachment of the spindle is described from page
63 onwards.
The attachment of the spindle with reducing bushes is described from
page 66 onwards.
Always install the lever handle fittings/rosettes first for two-part handles. Only
install the cylinder rosettes once the lever handle fittings/rosettes have been
installed.
