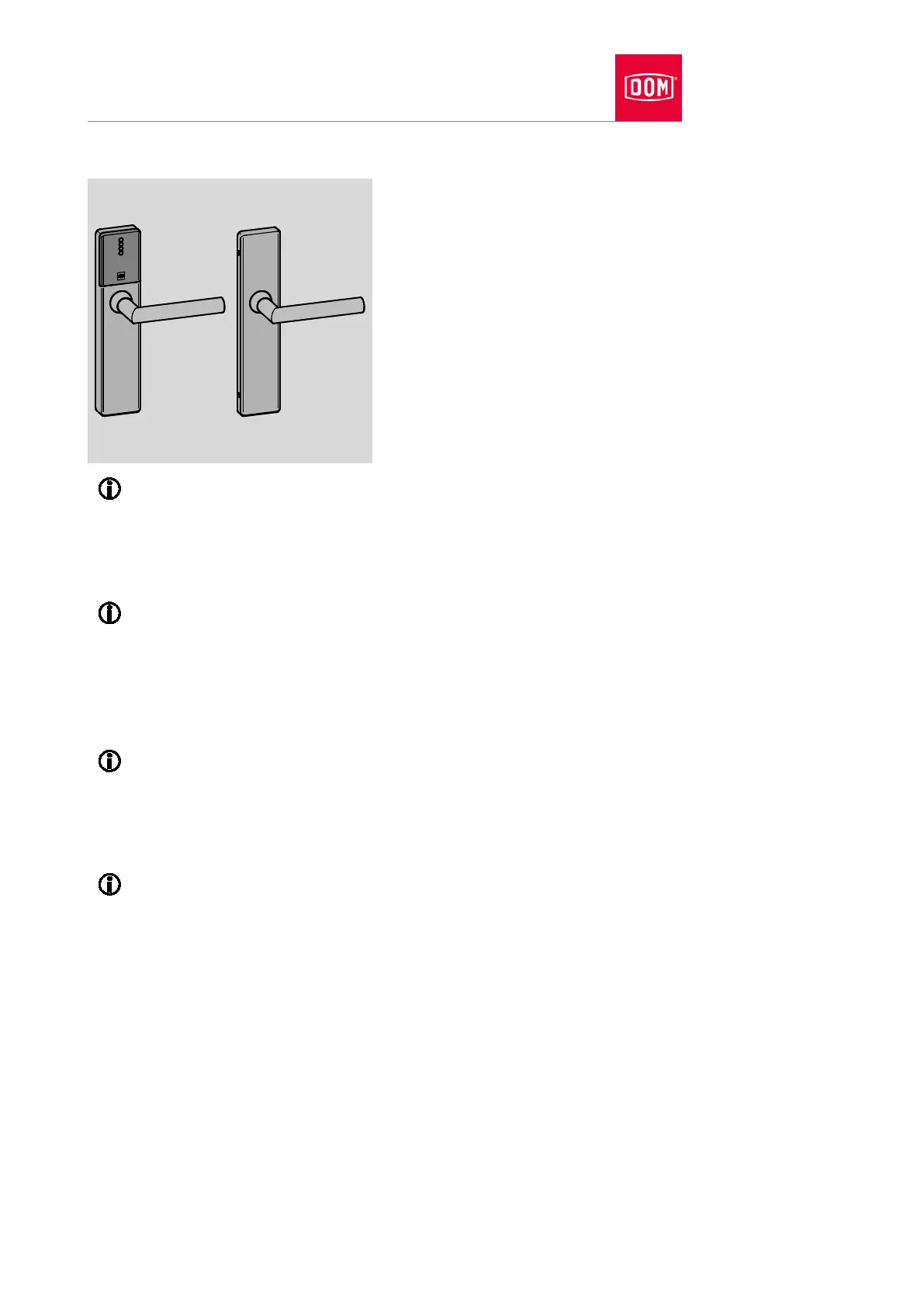

GUARD Wideline set reading on one side
A GUARD Slimline long plate is presented in the section which follows.
The procedure for other handles is no different from the one described
here.
Installing handle and screwing right through
The procedure for “Screwing long plate” is described and presented in
the section which follows. In this case screwing occurs with three
threaded bushes and long screws through the door leaf (“Screwing all
the way through”).
Screwing at just two attachment points may occur depending on regional
conditions and the attachment points which are available.
You can install the long plate without taking off the cover of the
assembly profile when screwing all the way through.
You must attach the spindle and lever handle to the handle prior to attaching
the handle in position.
The attachment of the lever handle to the electronic handle is described
from page
60 onwards.
The attachment of the spindle is described from page
63 onwards.
The attachment of the spindle with reducing bushes is described from
page 66 onwards.
