Use adapter sleeve for 10 mm spindle hub
A GUARD Slimline long plate is presented in the section which follows.
The procedure for other handles is no different from the one described
here.
The length of the spindle which is supplied is matched to the thickness
of the door leaf stated with the order.
Ensure that the spindle is of the correct length as described from
page
64 onwards.
Proceed as follows to install a spindle in a spindle hub with 10 mm edge
length:

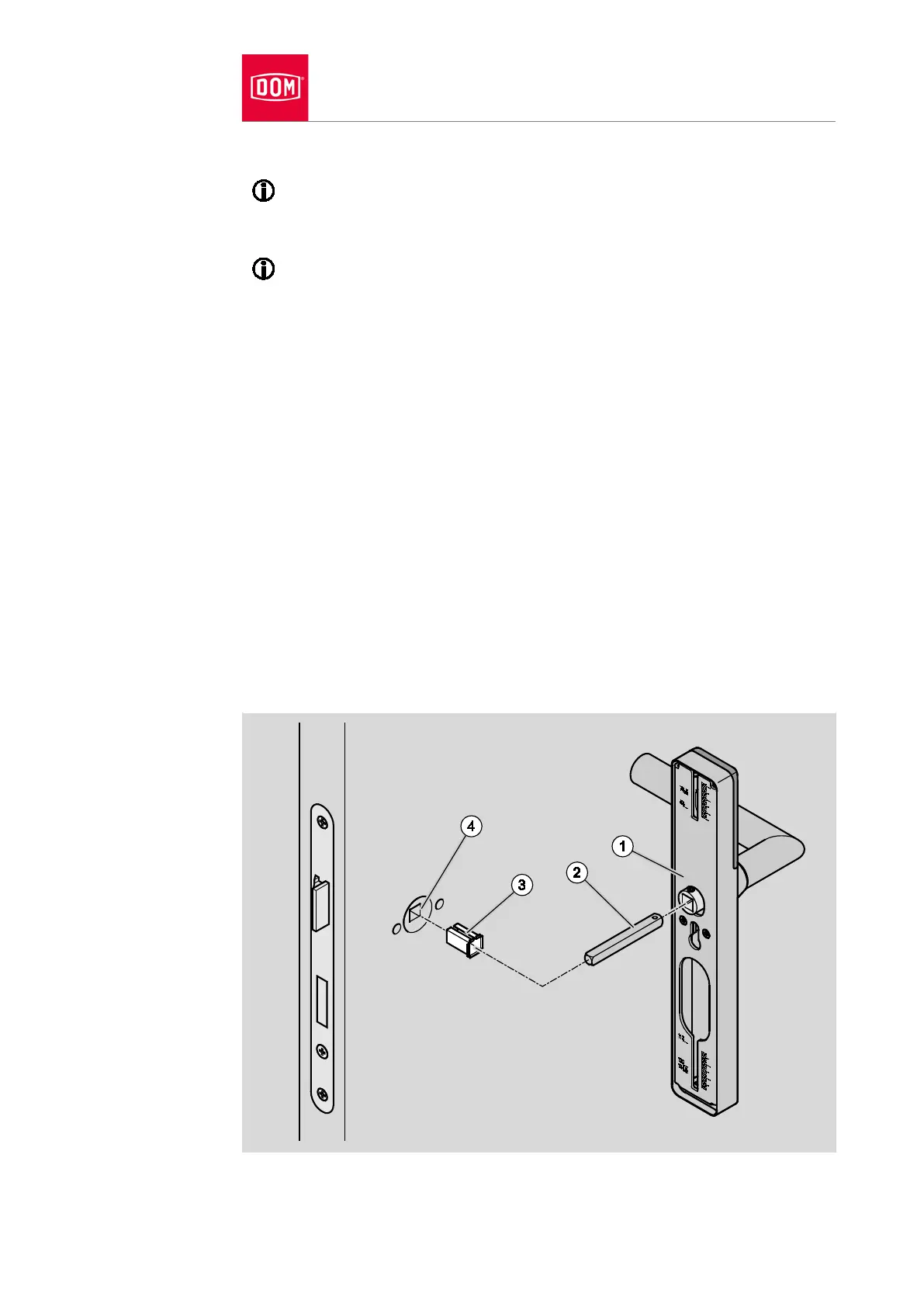

Align the adapter sleeve (3) as shown.
The adapter sleeve must be aligned in such a way that the slot in the adapter
sleeve is aligned with the grub screw (1).
Push the adapter sleeve into the spindle hub (4) in the door until it comes to
a stop.
Insert the spindle (2) into the spindle hub as described from page 64
onwards.
You can now insert the spindle in the electronic handle into the adapter sleeve
in the spindle hub and attach the handle to the door leaf. For this purpose
proceed as described in the section “Installing handle” from page 72 onwards.
