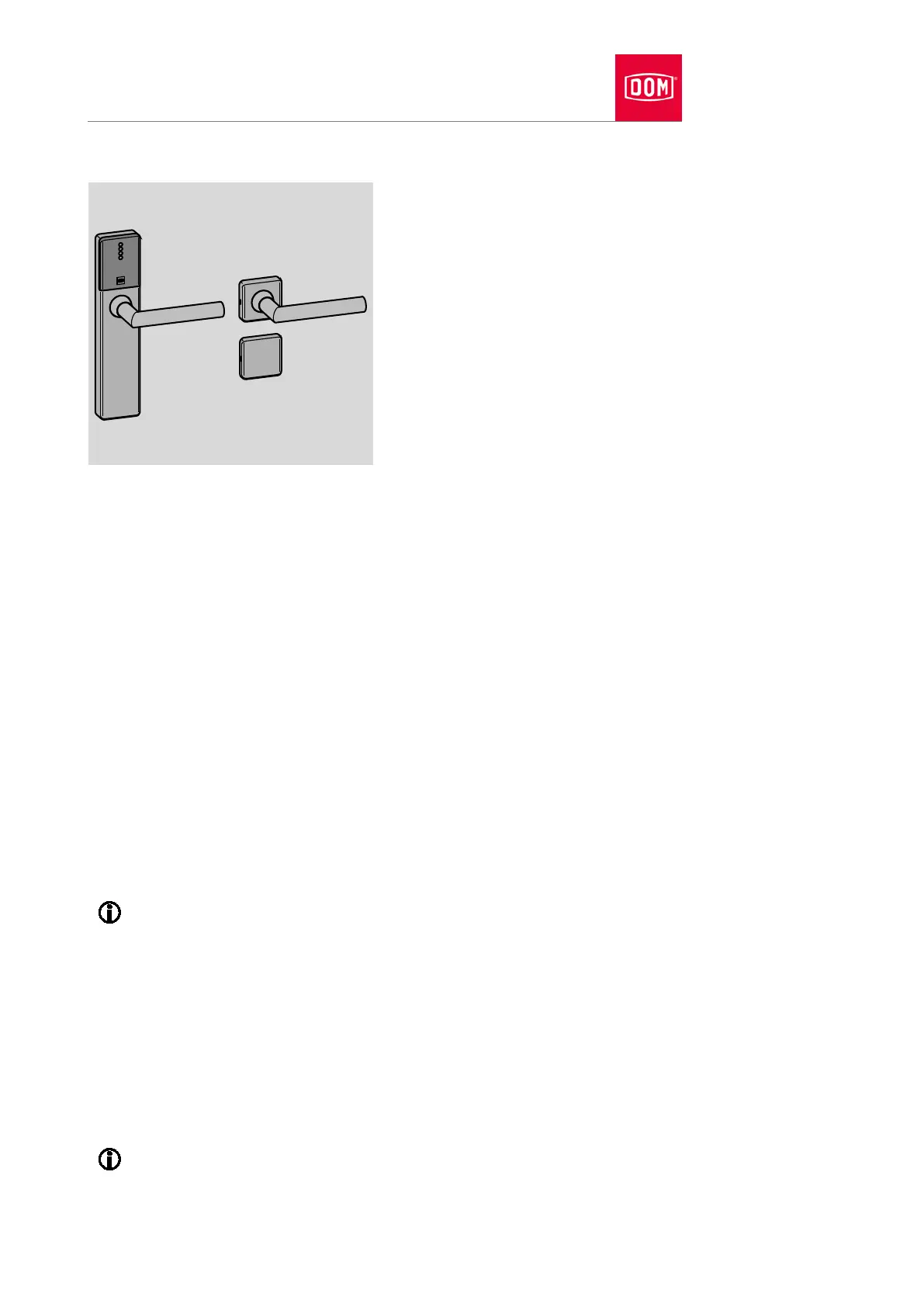

GUARD Wideline set reading on one side with rosettes
• Long plate Wideline cover outside
• Assembly profile long plate outside with electronic circuit
• Cover cylinder rosette Wideline
• Assembly profile cylinder rosette Wideline
• Cover lever handle rosette Wideline
• Assembly profile lever handle rosette Wideline with lever handle
• Outer lever handle with lever handle attachment screw (M5 x 50)
• Spindle of suitable length
• adapter sleeves where necessary (see page 52)
• 2 lithium batteries, 1.5 V, AAA (inserted in battery compartment on delivery)
• Attachment material:
− 4 threaded bushes (catch sleeves)
− 4 long screws (M5 x 30 to M5 x 90, depending on door leaf thickness in
order)
− 8 short screws (M5 x 12)
The short screws which are supplied are only suitable for metal doors
with pre
-cut M5 threads. You can obtain suitable screws for doors made
of different material via specialist retailers.
ws must be of the same length as the screws supplied and the
heads must be uniform. The head of the short screw must be wider than
the drill hole (5.5
mm). It may have a maximum diameter of 9.8 mm and
mm.
Consult a specialist retailer for advice about suitable short screws for
your door.
You can pre-drill the screwing points in order to guarantee safe
screwing.
