LED displays on the reading field

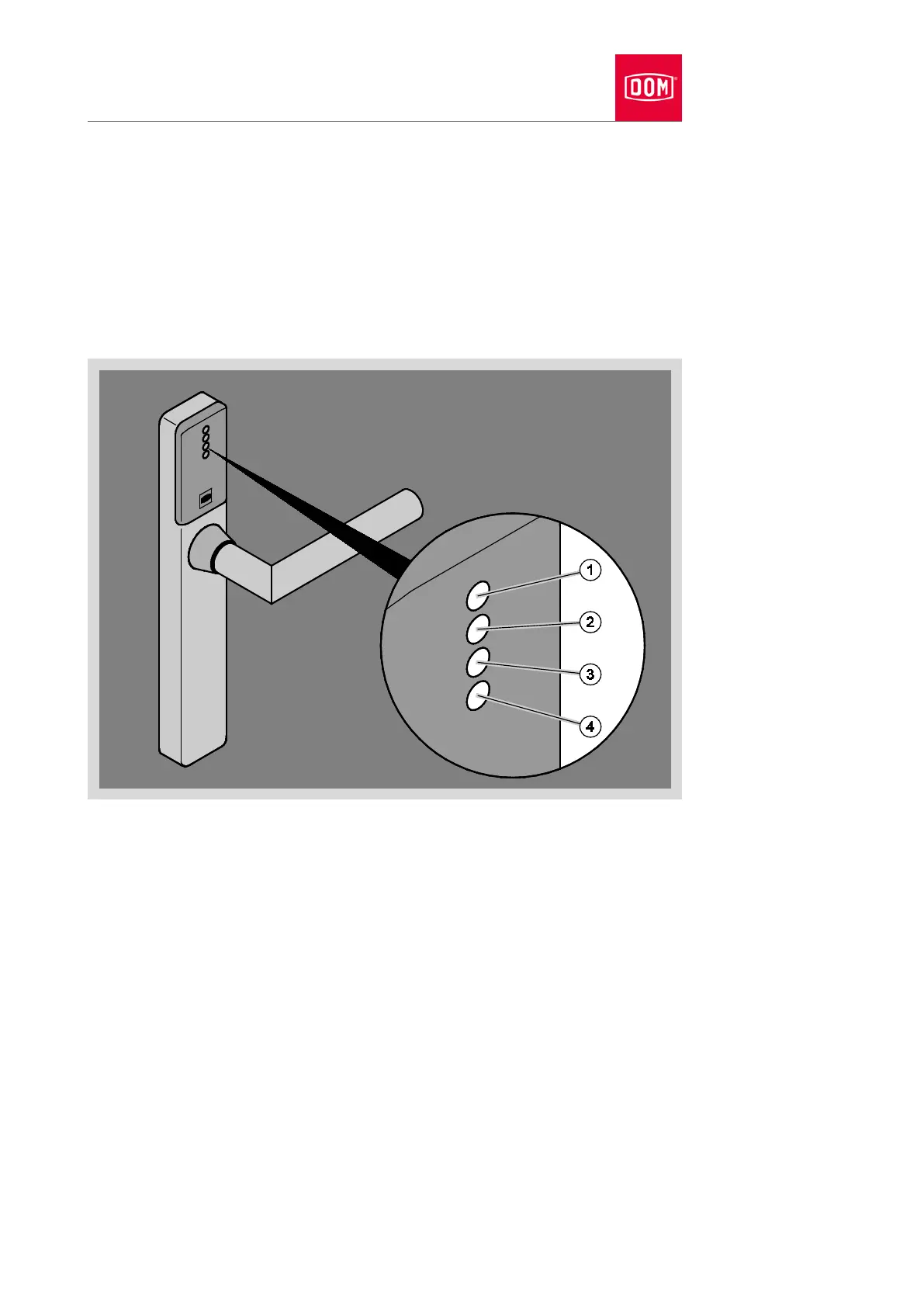

Four LEDs (1, 2, 3, 4) are placed above one another on the reading field of
each handle. The LEDs can light up in different colours individually, in turn or
simultaneously. This is how the LEDs signal authorisations, operating states
and errors. An acoustic signal can also be issued.
You can find instructions for the signals and the corresponding device states
in the separate instructions “Device functions, states and signalling”.
The following colours are possible:
• Green
• Yellow
• Red
• Blue
• White
• Magenta
• Cyan
