Using adapter sleeve on an electronic handle inside
A GUARD Slimline long plate is presented in the section which follows.
The procedure for other handles is no different from the one described
here.
Proceed as follows to install a spindle with an edge length less than 9 mm on
an electronic handle on the inside:

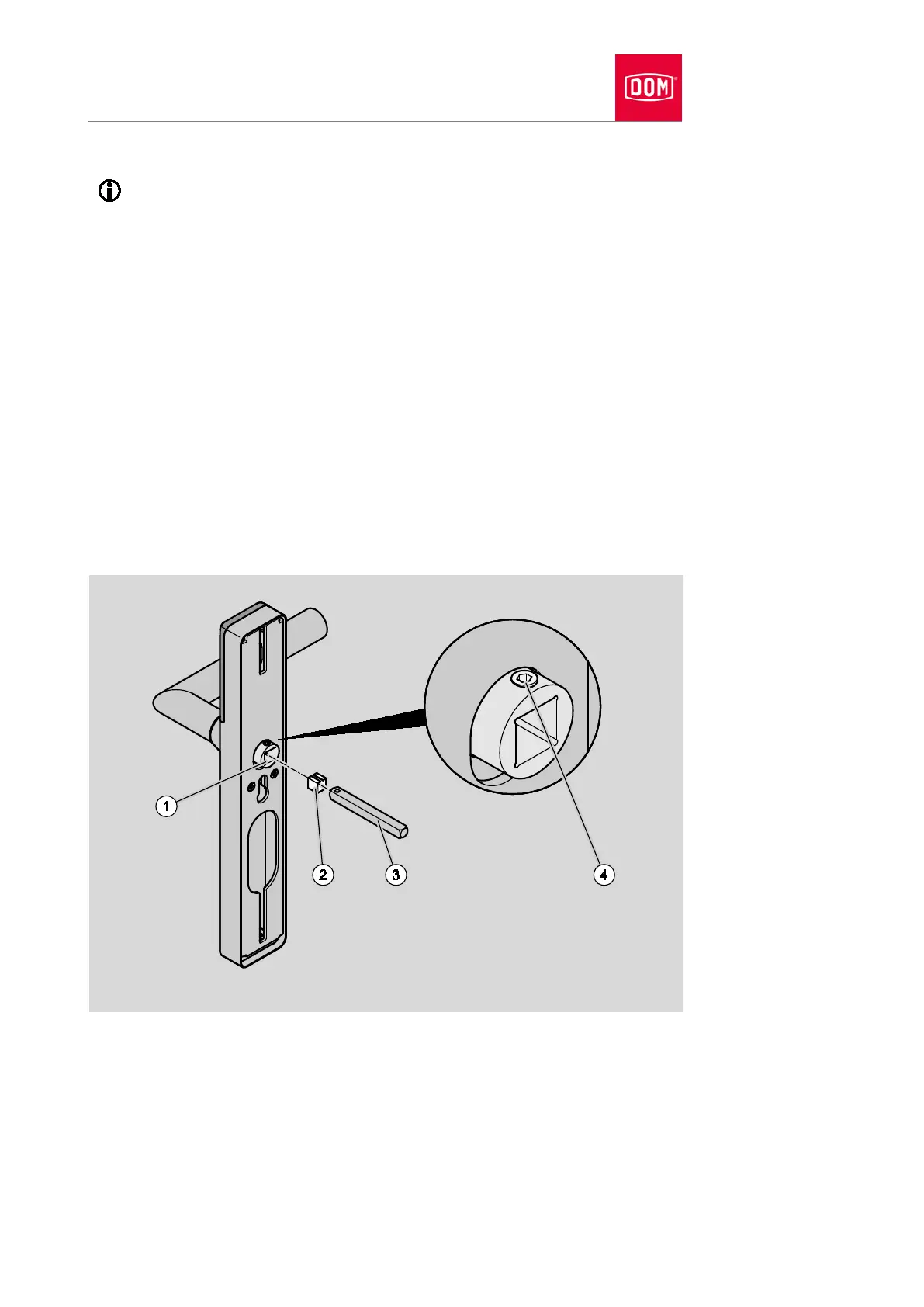

Push the smaller adapter sleeve (2) into the coupling nut (1) in such a way
that the slot in the adapter sleeve is aligned with the grub screw on the
coupling nut.
If necessary release the grub screw (4) a little so that the spindle (3) can be
inserted freely into the coupling nut.
On an electronic handle on the inside it is not possible to use the grub screw
to attach the spindle. The adapter sleeve could fall out in the event of incorrect
position of the handle.
Ensure that the adapter sleeve does not fall out of the handle prior to
assembly.
Continue with the assembly of the handle as described from page 72
onwards.
