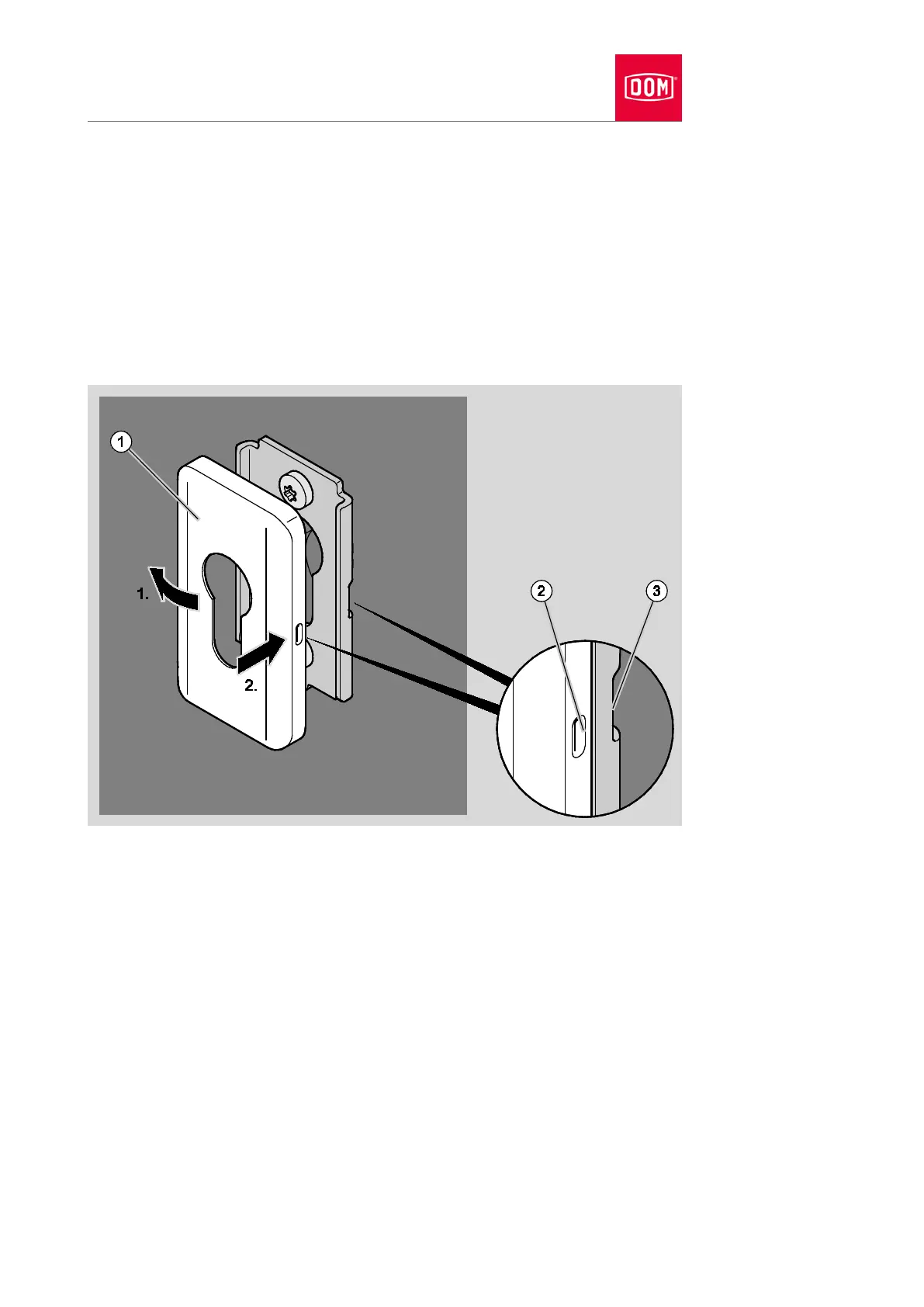

Place the cover of the cylinder rosette (1) on the assembly profile as shown.
You must twist the cover of the cylinder rosette when putting it in position if
this is necessary.
Press the cover of the cylinder rosette laterally onto the assembly profile (1.)
until the locking point of the cover (2) is in contact with the locking point of
the assembly profile (3) (1.).
Press the other side of the cover onto the assembly profile in such a way
that the locking point audibly clicks into place (2).
Attach the other cover on the assembly profile in the same way.
Check the outer lever handle for flawless functioning (coupling).
If the outer lever handle does not couple flawlessly, align it as follows:
Remove the cover of the outer handle as described in section “Removing
handle” from page 234 onwards.
Align the outer lever handle horizontally as described from page 60
onwards.
The horizontal positions of the outer lever handle and inner lever handle must
match.
Reattach the cover to the assembly profile.
