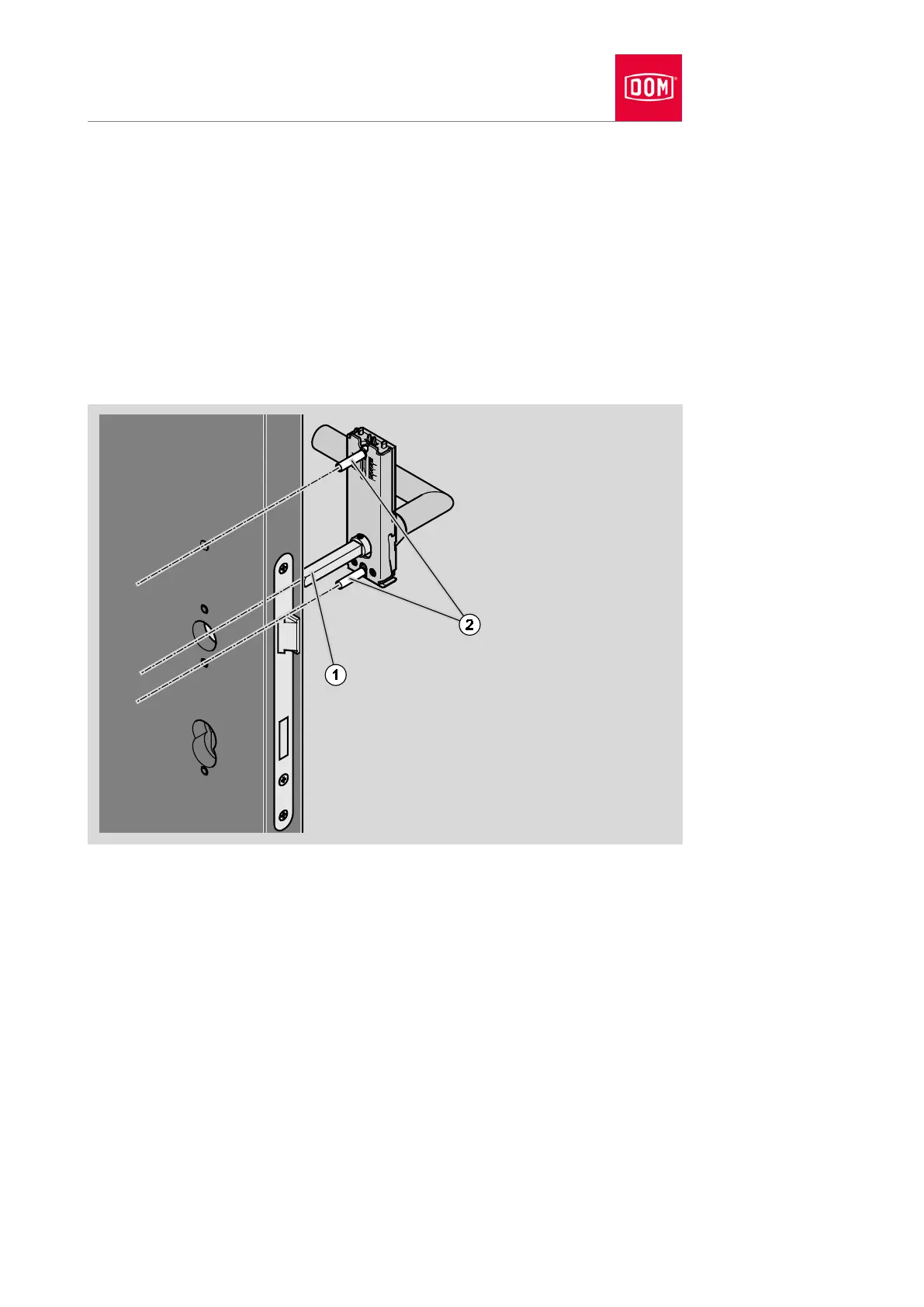

Insert the threaded bushes (2) through the recesses into the guide slots in
the assembly profile as shown.
Push the upper threaded bush to the desired position in line with the
measurement “X” which is established.
Insert the spindle (1) into the spindle hub.
Insert the threaded bushes into the drill holes on the door.
If necessary, move the upper threaded bush until the threaded bushes can
be inserted easily into the drill hole.
Press the assembly profile onto the door leaf.
