Ensure that the lever handle on the inside handle is aligned correctly (see
page 58).
When using adapter sleeves, make sure that these are attached correctly
(see page 66).
Place the lever handle on the spindle protruding on the inside of the door.

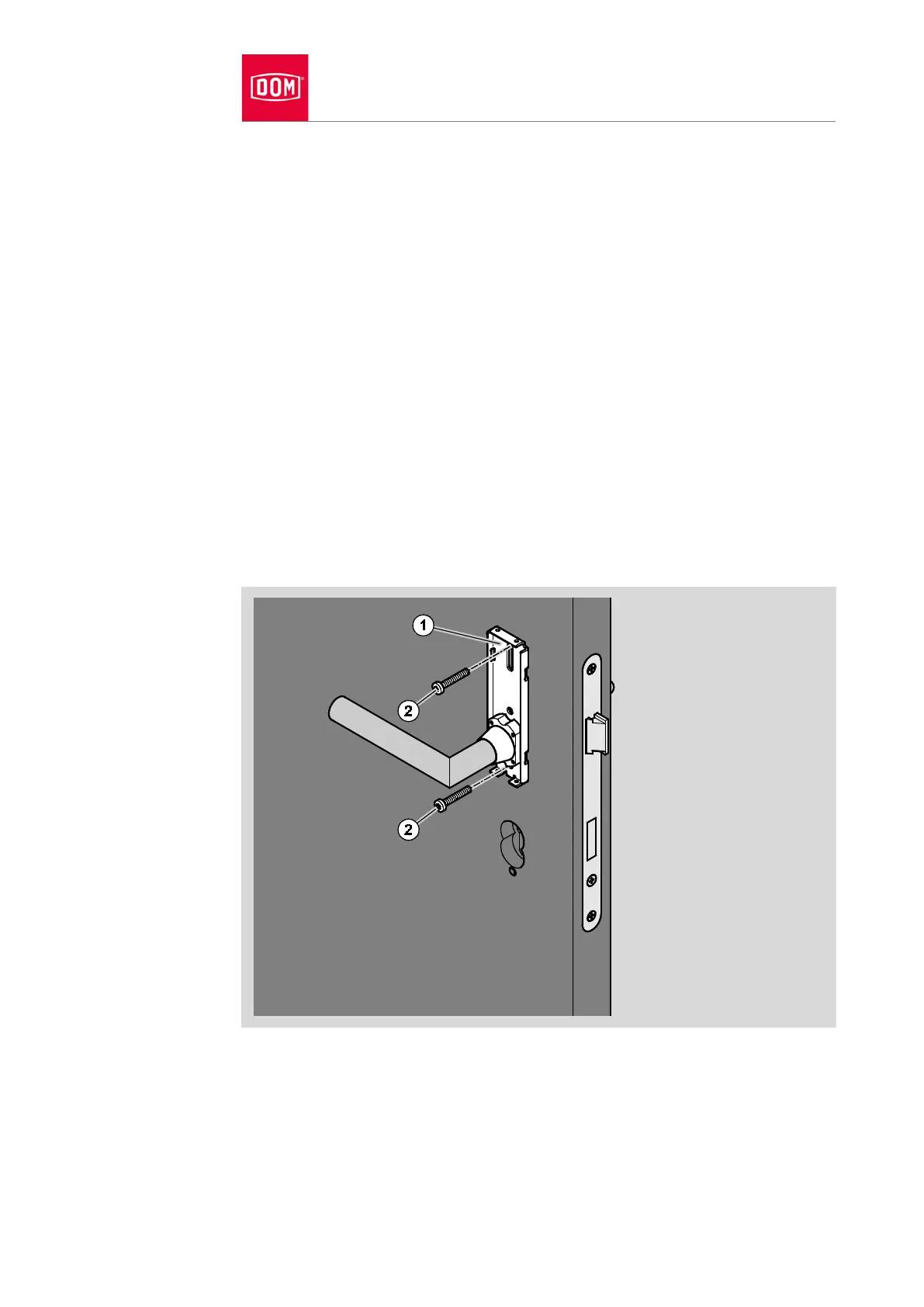

Insert the long screws (2) into the guide slots on the inner assembly profile
as shown.
Push the upper long screw to the desired position in line with the
measurement “X” which is established.
If necessary, move the upper long screw until the long screws can be
inserted easily into the drill hole.
Press the assembly profile (1) onto the door leaf.
Screw the long screws with the threaded bushes so they are hand tight.
Check the lever handle for ease of movement.
Release the long screw below the lever handle a little if the lever handle
does not move easily.
