If necessary remove the cover from the electronic assembly profile as
described from page 237 onwards.
You must attach the spindle and lever handle to the handle prior to attaching
the handle in position.
The attachment of the lever handle to the electronic handle is described
from page
60 onwards.
achment of the spindle is described from page 63 onwards.
The attachment of the spindle with reducing bushes is described from
page 66 onwards.

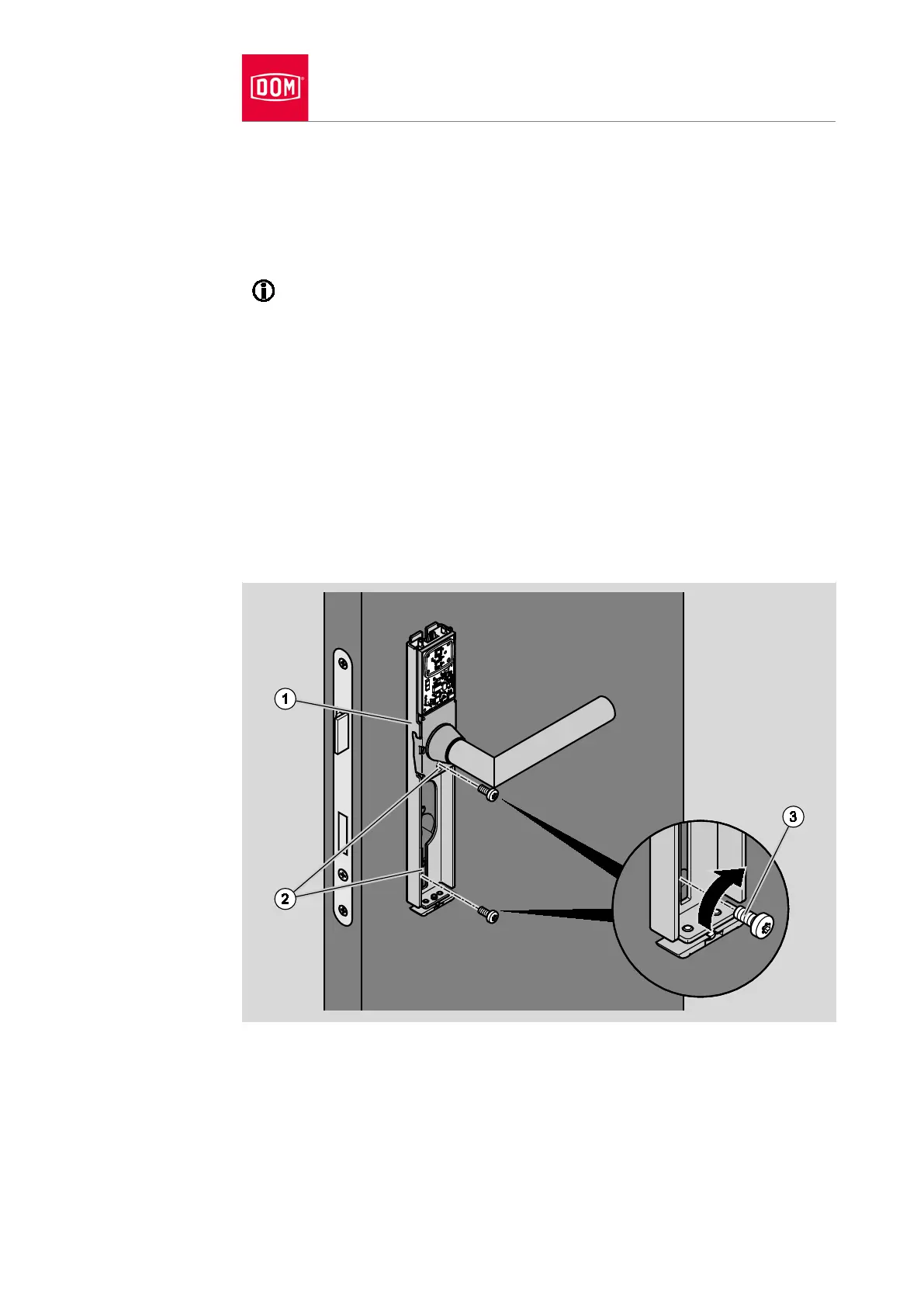

Insert the spindle in the electronic assembly profile (1) on the outside into
the spindle hub.
Press the assembly profile on the door leaf until it comes to a stop.
Insert two suitable short screws (3) into the centre and lower drill hole (2).
Tighten the centre short screw so it is hand tight.
Tighten the lower short screw so it is hand tight.
