Attach the four catch sleeves (4) to the lateral gripping points of the
assembly profile as shown.
Place the assembly aid (3) on the catch sleeves if available.

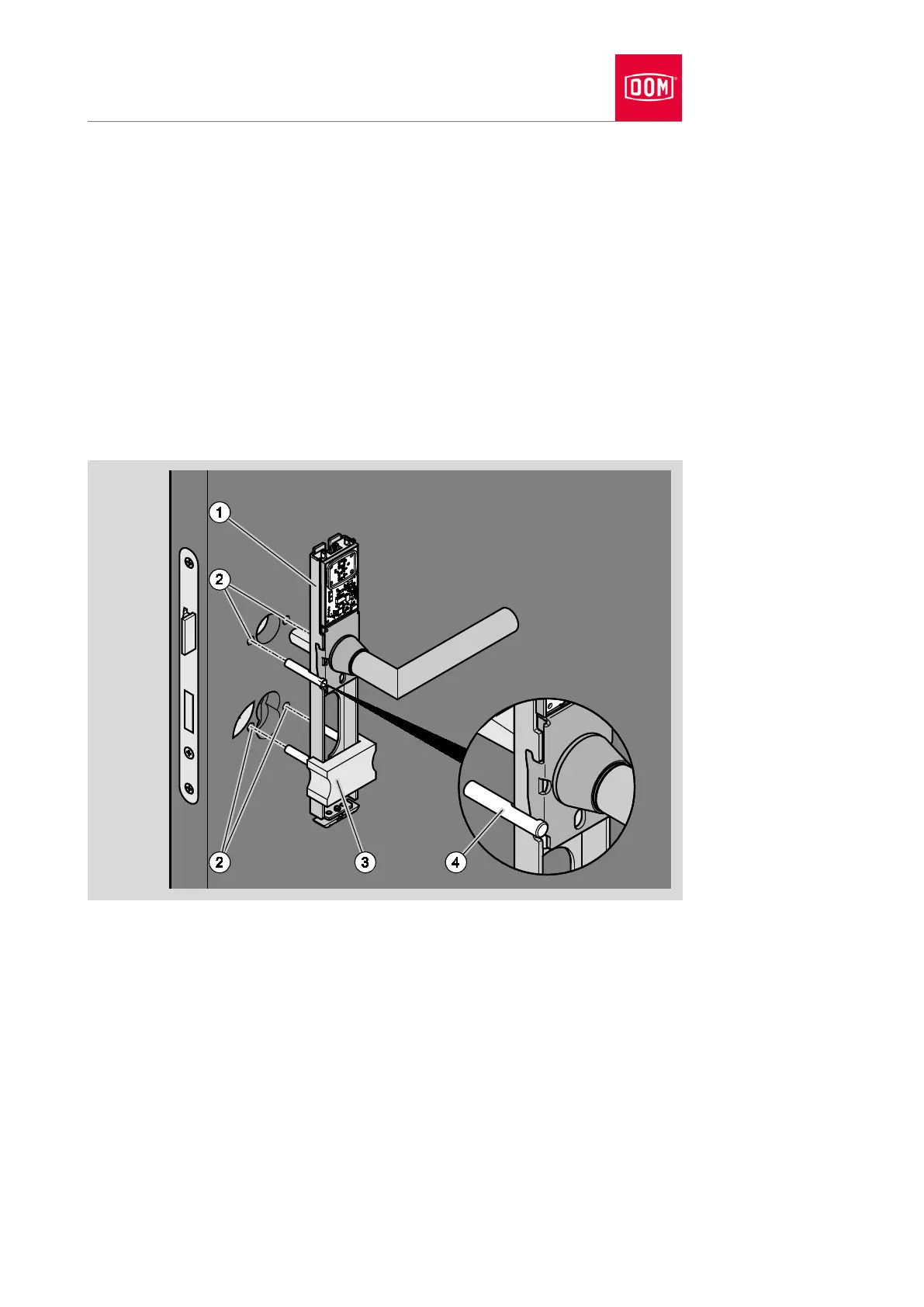

Just one assembly aid is shown in the diagram which follows. Use an
assembly aid for each of the two pairs of catch sleeves if possible.
Insert the spindle into the spindle hub.
Insert the catch sleeves into the drill holes (2) on the door.
If necessary, move the lower catch sleeves until the catch sleeves can be
inserted easily into the drill holes.
Press the assembly profile (1) on the door leaf until it comes to a stop.
Remove the assembly aid if you have used one.
