The attachment of the cover of a rosette for Slimline is presented in the
sections which follow as an example.
Distortion of the cover possible due to forceful pressing.
Press the cover carefully until it clicks into the locking
points.
Use the heel of the hand to strike the edge of the cover
lightly if necessary.

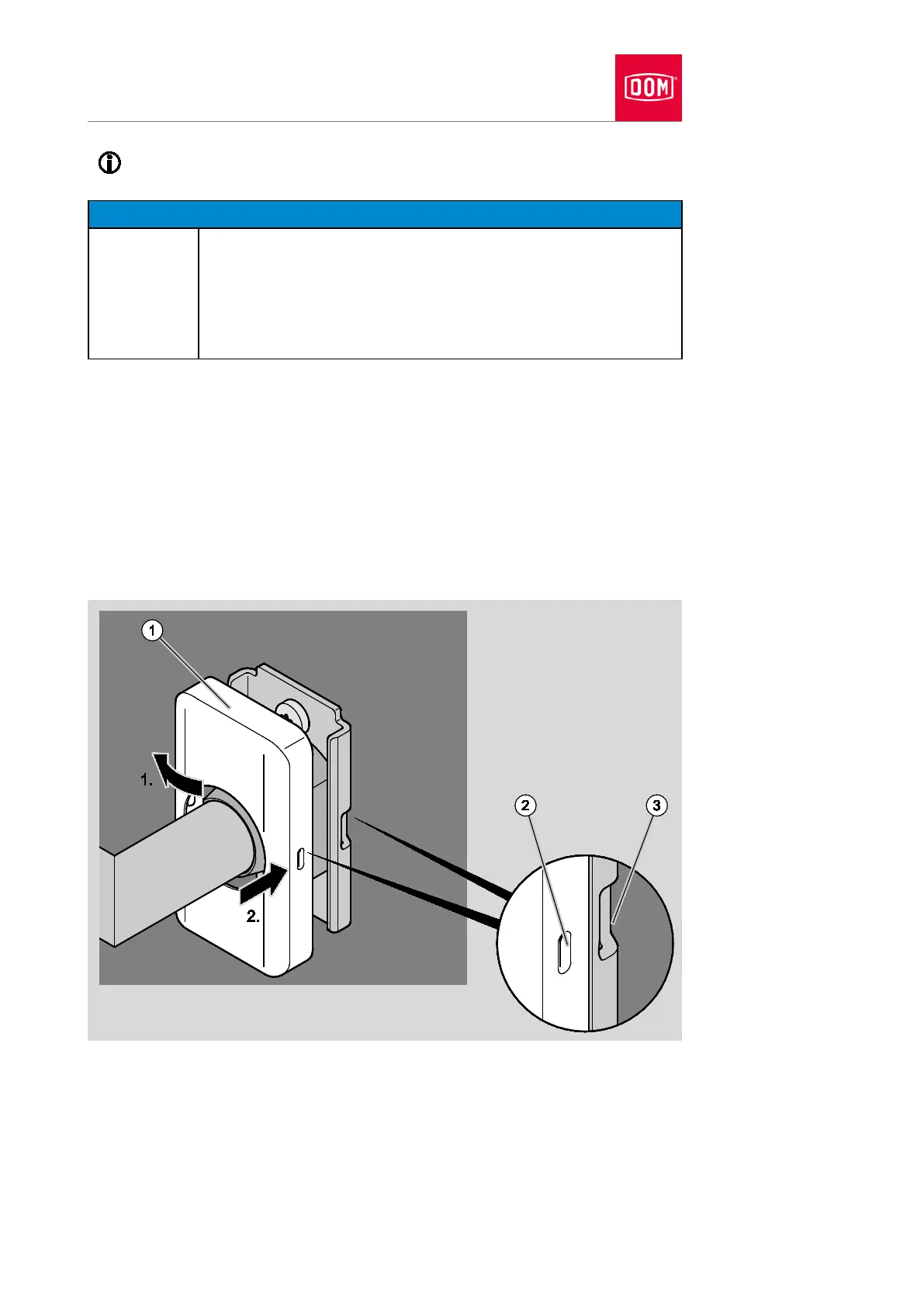

Place the cylinder rosette (1) on the assembly profile as shown.
You must twist the lever handle rosette when putting it in position if this is
necessary.
Press the cylinder rosette laterally onto the assembly profile (1.) until the
locking point of the cover (2) is in contact with the locking point of the
assembly profile (3) (1.).
Press the other side of the cover onto the assembly profile in such a way
that the locking point audibly clicks into place (2).
