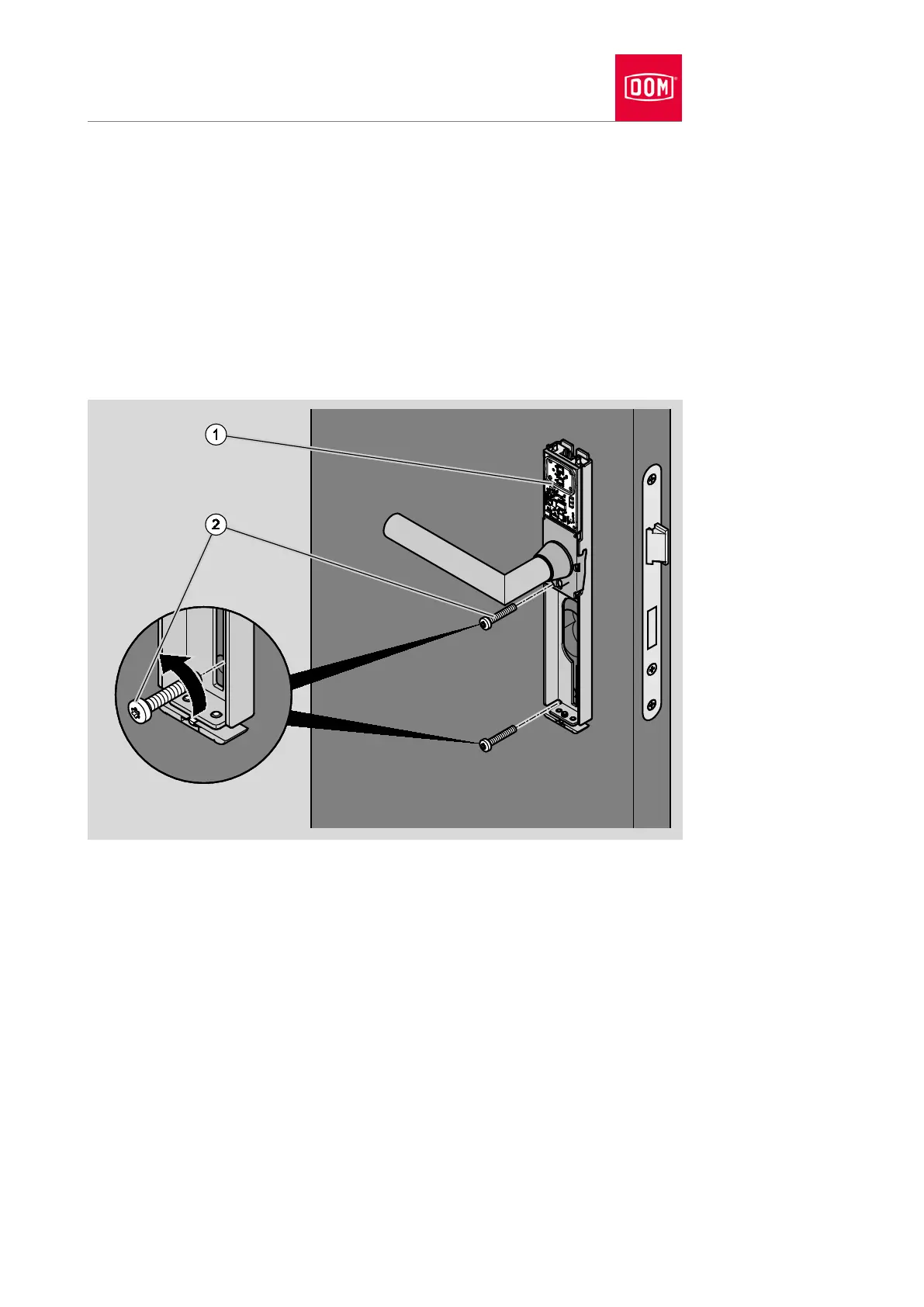

Insert the two long screws (2) into the centre and lower guide slot of the
inner assembly profile (1) as shown.
Push the long screws to the desired position in line with the measurements
established.
Insert the long screws into the drill holes on the door.
If necessary, move the long screws until they can be inserted easily into the
drill holes.
Press the assembly profile (1) onto the door leaf.
Screw the long screws in so they are hand tight.
Check the outer lever handle for flawless functioning (coupling).
If the outer lever handle does not couple flawlessly, align it as follows:
Remove the cover of the outer handle as described in section “Removing
handle” from page 234 onwards.
Align the outer lever handle horizontally as described from page 60
onwards.
The horizontal positions of the outer lever handle and inner lever handle must
match.
Reattach the cover to the assembly profile.
