If necessary remove the cover from the assembly profile as described from
page 234 onwards.
Insert the spindle into the spindle hub.

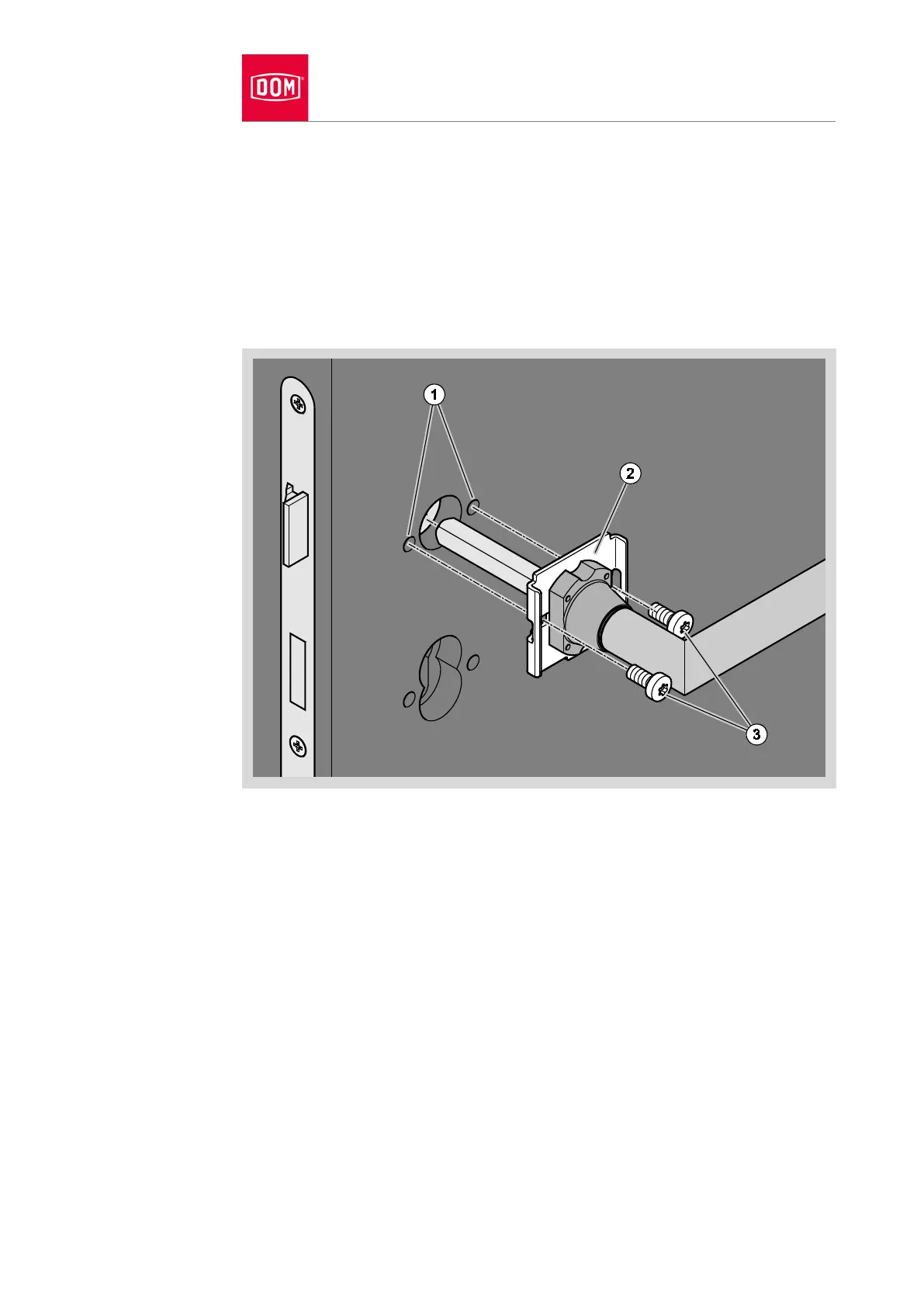

Press the assembly profile (2) onto the door leaf.
Screw the assembly profile of the lever handle rosette on the outside into
the screw attachment points (1) on the door leaf with two short screws (3).
Tighten the two short screws so they are hand tight.
